Arcol RWS 47 Ω Wirewound Surface Mount Resistor ±5 % 7 W - RWS7 47R J
- RS Stock No.:
- 781-1302
- Mfr. Part No.:
- RWS7 47R J
- Brand:
- Arcol
Bulk discount available
Subtotal (1 unit)*
£0.98
(exc. VAT)
£1.18
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 300 unit(s) shipping from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £0.98 |
| 25 - 49 | £0.91 |
| 50 - 99 | £0.86 |
| 100 - 249 | £0.80 |
| 250 + | £0.72 |
*price indicative
- RS Stock No.:
- 781-1302
- Mfr. Part No.:
- RWS7 47R J
- Brand:
- Arcol
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Arcol | |
| Product Type | Surface Mount Resistor | |
| Resistance | 47Ω | |
| Resistor Type | Precision Power | |
| Technology | Wirewound | |
| Packaging | Tape & Reel | |
| Tolerance | ±5 % | |
| Power Rating | 7W | |
| Temperature Coefficient | -20 ppm/°C, +20 ppm/°C | |
| Automotive Standard | No | |
| Series | RWS | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 275°C | |
| Height | 10.3mm | |
| Length | 22.5mm | |
| Termination Style | Solder | |
| Standards/Approvals | RoHS | |
| Width | 9.3mm | |
| Select all | ||
|---|---|---|
Brand Arcol | ||
Product Type Surface Mount Resistor | ||
Resistance 47Ω | ||
Resistor Type Precision Power | ||
Technology Wirewound | ||
Packaging Tape & Reel | ||
Tolerance ±5 % | ||
Power Rating 7W | ||
Temperature Coefficient -20 ppm/°C, +20 ppm/°C | ||
Automotive Standard No | ||
Series RWS | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 275°C | ||
Height 10.3mm | ||
Length 22.5mm | ||
Termination Style Solder | ||
Standards/Approvals RoHS | ||
Width 9.3mm | ||

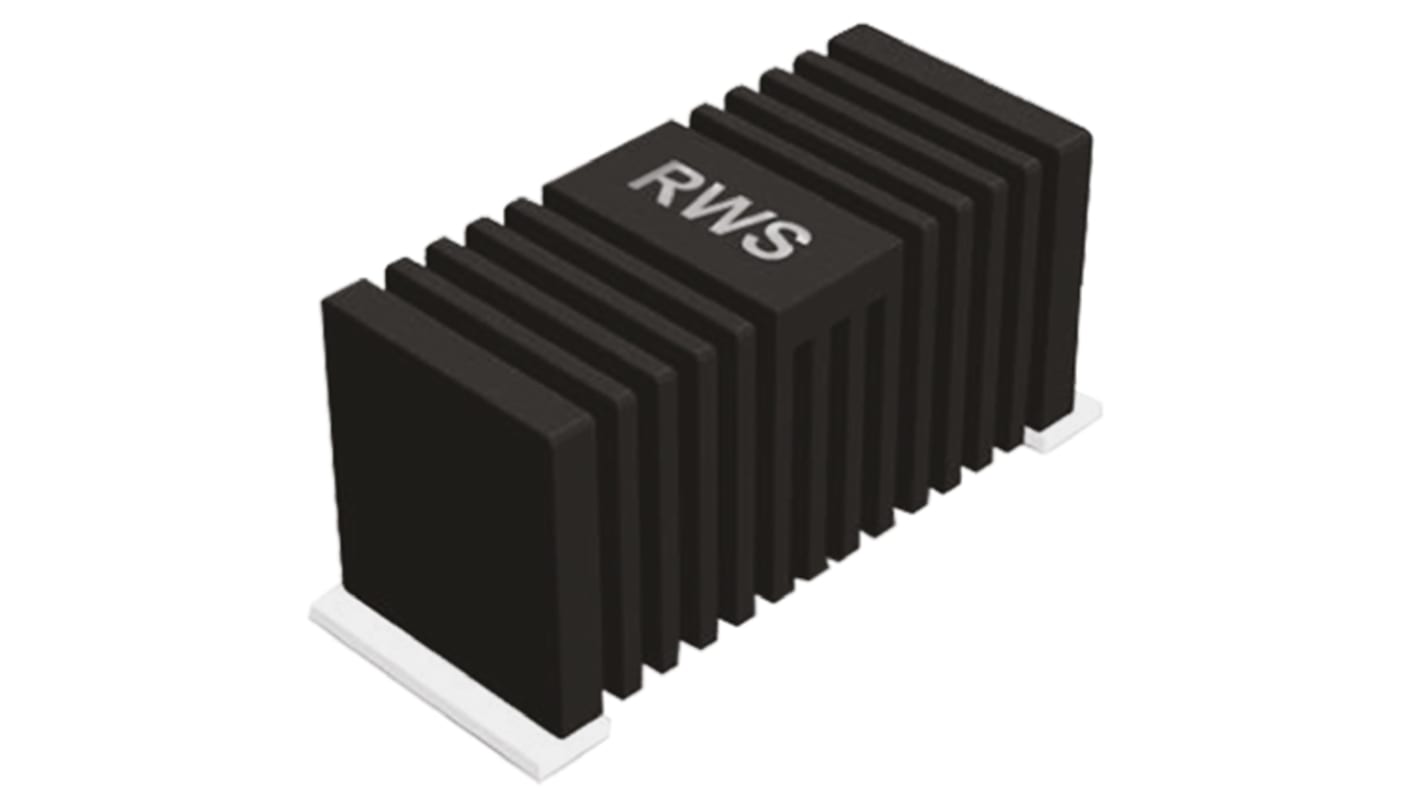

7W SMD Aluminium Clad Power resistor
This product has been uniquely designed to meet the rising power requirement for surface mount components. It has high reliability and has been engineered to reduce long term thermal damage to boards and surrounding components.
Optimised thermal design
Excellent overload characteristics
Very high power density for SMD
Good stability and low standard TCR
