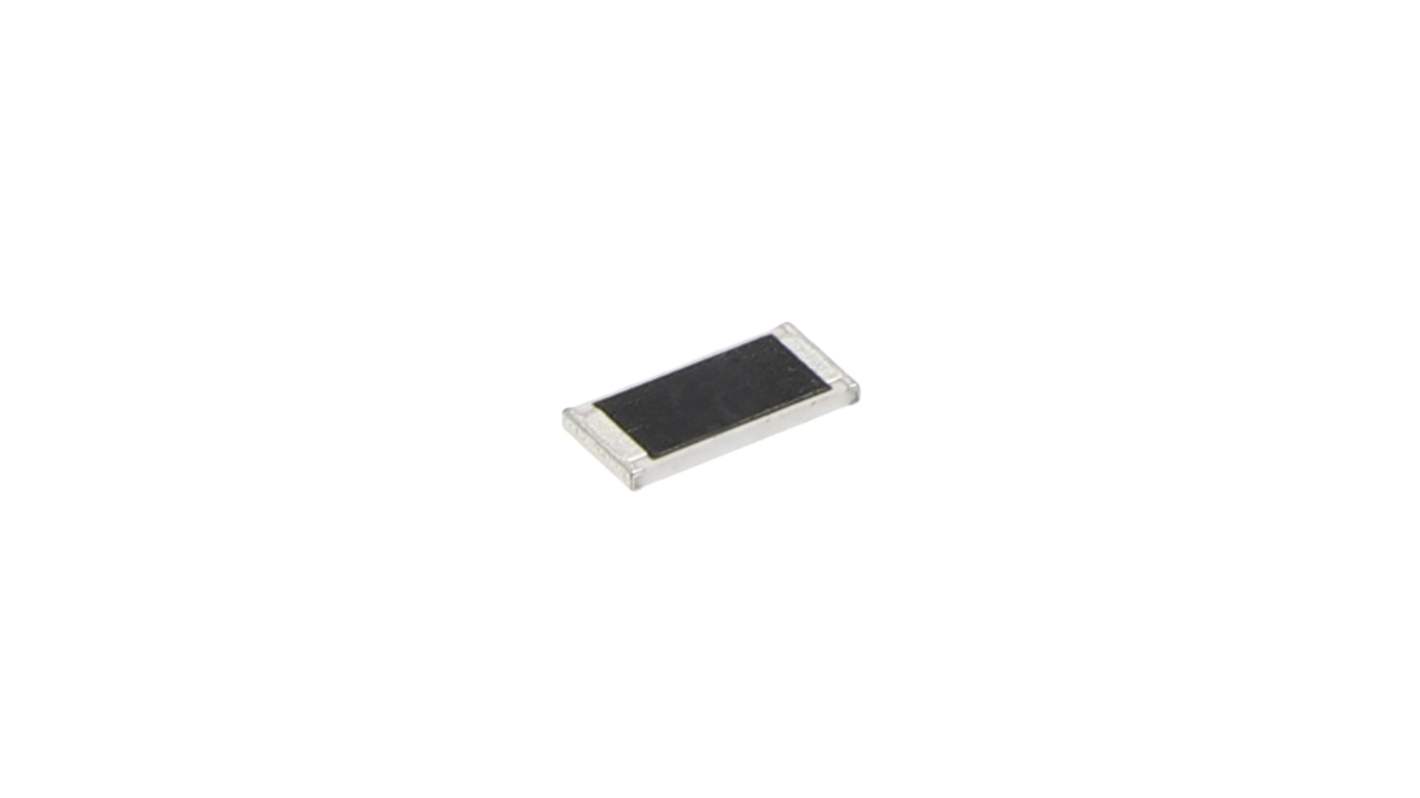

Panasonic ERJ6B 1 Ω, 0805 Thick Film Surface Mount Resistor ±1 % 0.33 W - ERJ6BQF1R0V

RS Stock No.:: 721-5631
Mfr. Part No.:: ERJ6BQF1R0V
Brand:: Panasonic

Panasonic ERJ6B 1 Ω, 0805 Thick Film Surface Mount Resistor ±1 % 0.33 W - ERJ6BQF1R0V

Subtotal (5 units, in packs of 5)*

£1.02

(exc. VAT)

£1.23

(inc. VAT)

FREE delivery for orders over £60.00

Temporarily out of stock

360 unit(s) shipping from 05 October 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Pack*
5 +	£0.204	£1.02

*price indicative

Alternative

This product is not currently available. Here is our alternative recommendation.

Panasonic ERJ6RQ 1 Ω, 0805 Thick Film Surface Mount Resistor ±1 % 0.13 W - ERJ6RQF1R0V

RS Stock No.: 721-5473

Each (In a Pack of 5)

£0.79

(exc. VAT)

£0.95

(inc. VAT)

RS Stock No.:: 721-5631
Mfr. Part No.:: ERJ6BQF1R0V
Brand:: Panasonic

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Panasonic
	Resistance	1Ω
	Product Type	Surface Mount Resistor
	Resistor Type	Current
	Technology	Thick Film
	Package/Case	0805
	Tolerance	±1 %
	Packaging	Punched Carrier Tape
	Power Rating	0.33W
	Temperature Coefficient	-200 ppm/°C, +200 ppm/°C
	Automotive Standard	AEC-Q200
	Minimum Operating Temperature	-55°C
	Series	ERJ6B
	Maximum Operating Temperature	155°C
	Termination Style	Tab
	Standards/Approvals	RoHS
	Length	2mm
	Height	0.6mm
	Width	1.5mm

	Select all
	Brand Panasonic
	Resistance 1Ω
	Product Type Surface Mount Resistor
	Resistor Type Current
	Technology Thick Film
	Package/Case 0805
	Tolerance ±1 %
	Packaging Punched Carrier Tape
	Power Rating 0.33W
	Temperature Coefficient -200 ppm/°C, +200 ppm/°C
	Automotive Standard AEC-Q200
	Minimum Operating Temperature -55°C
	Series ERJ6B
	Maximum Operating Temperature 155°C
	Termination Style Tab
	Standards/Approvals RoHS
	Length 2mm
	Height 0.6mm
	Width 1.5mm

COO (Country of Origin):: JP

Panasonic ERJ6B Series SMD Resistor, 1Ω Resistance, ±1 % Tolerance - ERJ6BQF1R0V

This SMD resistor is a critical component designed for various applications in the electronics sector. With a resistance Value of 1Ω and a Compact 0805 (2012M) package, it is Ideal for optimising circuit performance while ensuring minimal footprint on printed circuit boards. Engineered using thick film technology, this component meets stringent automotive standards, making it suitable for high-reliability environments.

Features & Benefits

• Low tolerance SMD resistor ensures precision in sensitive applications

• AEC-Q200 compliant resistor is Ideal for automotive use

• Temperature coefficient resistor of ±200 ppm/°C supports stable performance

• Power rating of 0.33W enables effective heat dissipation

• Thick film resistor technology provides durability and reliability

• Compact 0805 resistor package allows easy integration into designs

Applications

• Used in automotive electronics requiring precision and reliability

• Suitable for demanding low resistance values

• Implemented in power management circuits for efficient energy use

• Utilised in signal processing to maintain accurate readings

• Employed in various electronic devices across automation sectors

What is the significance of the tolerance rating for this component?

A tolerance rating of ±1 % guarantees that the resistance Value remains close to its specified level, which is Crucial for maintaining circuit accuracy in sensitive electronic applications.

How does the temperature coefficient affect performance?

The temperature coefficient of ±200 ppm/°C indicates how much the resistance changes with temperature variation. This stability ensures consistent performance across a range of operating conditions, particularly in automotive environments where temperature fluctuations are common.

What makes this product suitable for automotive applications?

It meets AEC-Q200 standards, which certify reliability in automotive electronics, making it a trustworthy choice for critical systems within vehicles that require stringent performance criteria and durability.

How does the packaging affect integration into electronic designs?

The Compact 0805 (2012M) package allows for flexibility in layout design and saves space on printed circuit boards, which is essential in modern electronics that are increasingly miniaturised.

What should be considered when using this resistor in high-power applications?

Although it has a power rating of 0.33W, for applications with higher power requirements, it is essential to ensure adequate heat dissipation to prevent damage and maintain reliable operation.
