Arcol Ohmite HVC 10 GΩ, 1206 Thick Film Surface Mount Fixed Resistor 10 % 0.25 W - HVC1206Z1008KET
- RS Stock No.:
- 263-4263
- Mfr. Part No.:
- HVC1206Z1008KET
- Brand:
- Arcol Ohmite
Subtotal (1 reel of 500 units)*
£1,764.00
(exc. VAT)
£2,117.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 20 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 500 + | £3.528 | £1,764.00 |
*price indicative
- RS Stock No.:
- 263-4263
- Mfr. Part No.:
- HVC1206Z1008KET
- Brand:
- Arcol Ohmite
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Arcol Ohmite | |
| Resistance | 10GΩ | |
| Product Type | Surface Mount Fixed Resistor | |
| Technology | Thick Film | |
| Package/Case | 1206 | |
| Tolerance | 10 % | |
| Packaging | Tape & Reel | |
| Power Rating | 0.25W | |
| Voltage | 1000V | |
| Automotive Standard | No | |
| Minimum Operating Temperature | -55°C | |
| Series | HVC | |
| Maximum Operating Temperature | 55°C | |
| Length | 1.5mm | |
| Standards/Approvals | RoHS | |
| Termination Style | Solder | |
| Height | 0.4mm | |
| Select all | ||
|---|---|---|
Brand Arcol Ohmite | ||
Resistance 10GΩ | ||
Product Type Surface Mount Fixed Resistor | ||
Technology Thick Film | ||
Package/Case 1206 | ||
Tolerance 10 % | ||
Packaging Tape & Reel | ||
Power Rating 0.25W | ||
Voltage 1000V | ||
Automotive Standard No | ||
Minimum Operating Temperature -55°C | ||
Series HVC | ||
Maximum Operating Temperature 55°C | ||
Length 1.5mm | ||
Standards/Approvals RoHS | ||
Termination Style Solder | ||
Height 0.4mm | ||
- COO (Country of Origin):
- DE

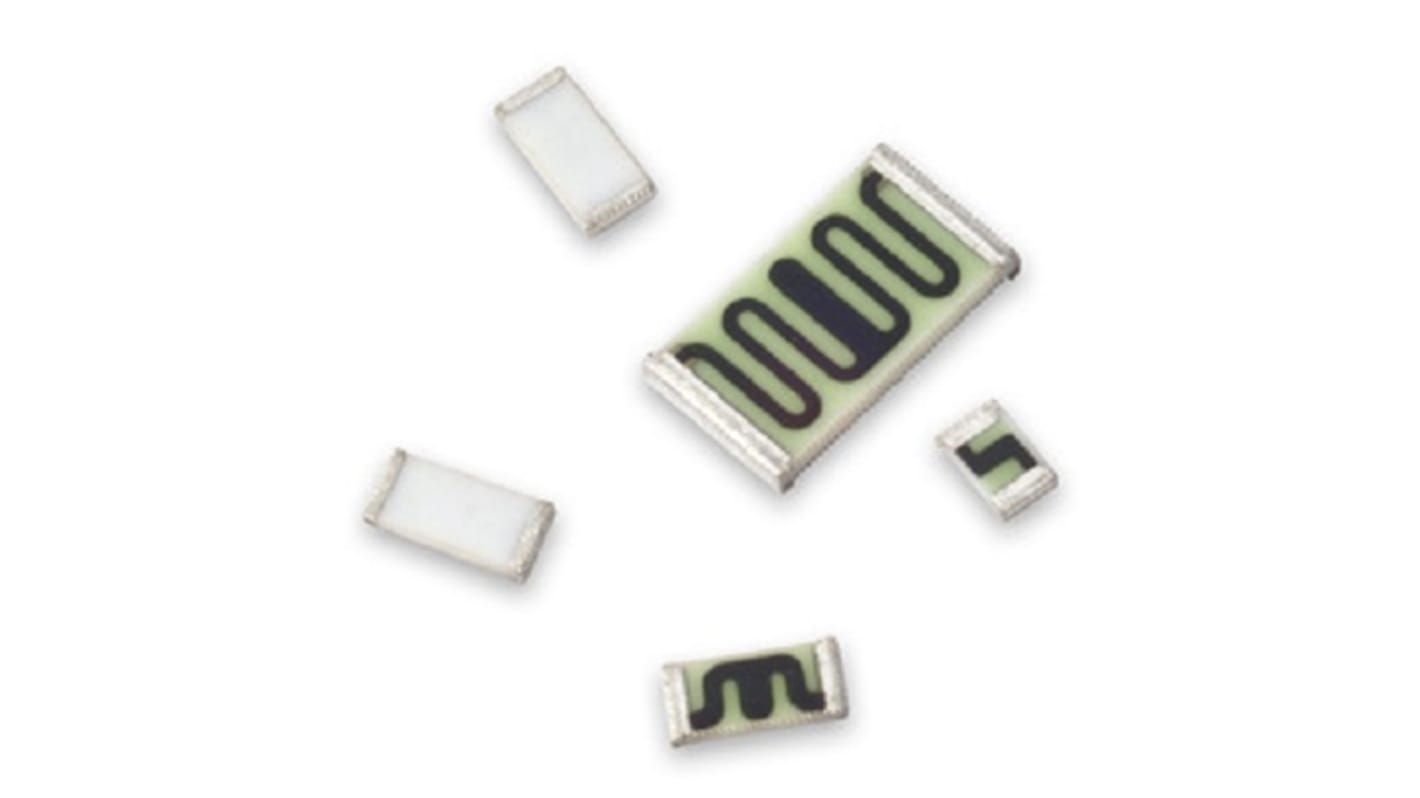

The Arcol Ohmite product is an HVC series precision high value high voltage wraparound chip resistor available in thick film construction technology. It is mostly suitable for high vacuum applications. It also offers an high working voltage up to 6000 volts.
High value chip resistors in thick film technology
Low temperature and voltage dependency low TCR and VCR
High working voltage up to 6000V
Suitable for high vacuum applications no organics
Contact areas are nickel barrier or matte tin
Wraparound terminals
