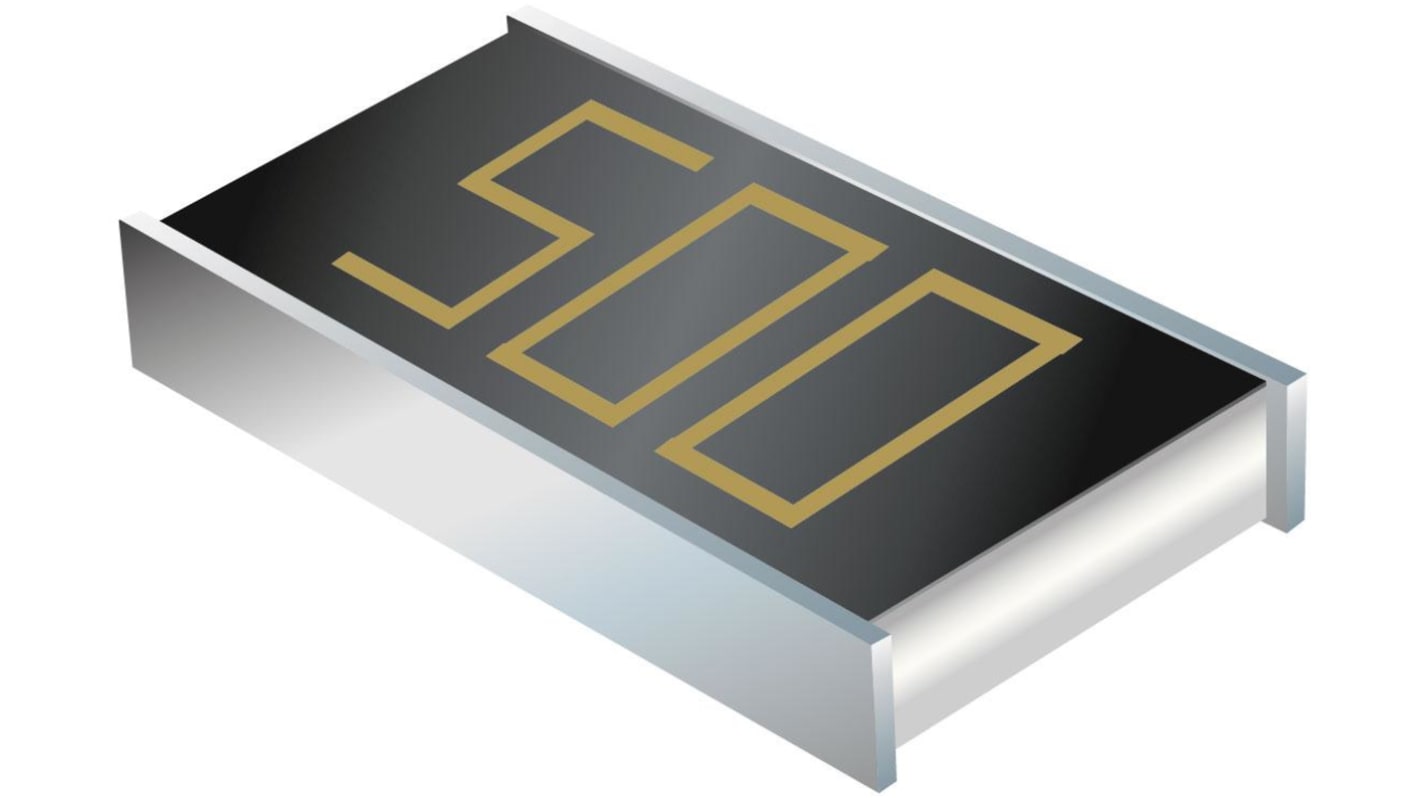

Bourns 20mΩ, 0603 (1608M) Metal Foil SMD Resistor 1% 0.5W
- RS Stock No.:
- 243-7723
- Mfr. Part No.:
- CFN0603-FZ-R020ELF
- Brand:
- Bourns
Bulk discount available
Subtotal (1 tape of 10 units)*
£1.55
(exc. VAT)
£1.86
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,750 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
---|---|---|
10 - 90 | £0.155 | £1.55 |
100 - 490 | £0.077 | £0.77 |
500 - 990 | £0.069 | £0.69 |
1000 + | £0.065 | £0.65 |
*price indicative
- RS Stock No.:
- 243-7723
- Mfr. Part No.:
- CFN0603-FZ-R020ELF
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Bourns | |
Resistance | 20mΩ | |
Technology | Metal Foil | |
Package/Case | 0603 (1608M) | |
Tolerance | 1% | |
Power Rating | 0.5W | |
Select all | ||
---|---|---|
Brand Bourns | ||
Resistance 20mΩ | ||
Technology Metal Foil | ||
Package/Case 0603 (1608M) | ||
Tolerance 1% | ||
Power Rating 0.5W | ||
- COO (Country of Origin):
- TW
The BOURNS CFN series metal foil, current sense resistor is use for current sensing, power supplies, stepper motor drives and input amplifiers.
Metal foil
High power density
Low inductance < 5 nH
Low thermal EMF < 3 μV / °C
High reliability and stability
RoHS compliant and halogen free
High power density
Low inductance < 5 nH
Low thermal EMF < 3 μV / °C
High reliability and stability
RoHS compliant and halogen free
