Isabellenhutte 50 mΩ, 2010 Ceramic Resistor ±1 % 2 W - CMP-R050-1.0
- RS Stock No.:
- 222-1477
- Mfr. Part No.:
- CMP-R050-1.0
- Brand:
- Isabellenhutte
Subtotal (1 reel of 12500 units)*
£3,287.50
(exc. VAT)
£3,950.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 04 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 12500 + | £0.263 | £3,287.50 |
*price indicative
- RS Stock No.:
- 222-1477
- Mfr. Part No.:
- CMP-R050-1.0
- Brand:
- Isabellenhutte
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Isabellenhutte | |
| Resistance | 50mΩ | |
| Product Type | Resistor | |
| Technology | Ceramic | |
| Resistor Type | Precision | |
| Package/Case | 2010 | |
| Packaging | Tape & Reel | |
| Tolerance | ±1 % | |
| Power Rating | 2W | |
| Voltage | 200V | |
| Automotive Standard | AEC-Q200 | |
| Minimum Operating Temperature | -65°C | |
| Maximum Operating Temperature | 170°C | |
| Height | 0.4mm | |
| Length | 5mm | |
| Termination Style | Solder | |
| Standards/Approvals | EU, RoHS | |
| Width | 2.54mm | |
| Select all | ||
|---|---|---|
Brand Isabellenhutte | ||
Resistance 50mΩ | ||
Product Type Resistor | ||
Technology Ceramic | ||
Resistor Type Precision | ||
Package/Case 2010 | ||
Packaging Tape & Reel | ||
Tolerance ±1 % | ||
Power Rating 2W | ||
Voltage 200V | ||
Automotive Standard AEC-Q200 | ||
Minimum Operating Temperature -65°C | ||
Maximum Operating Temperature 170°C | ||
Height 0.4mm | ||
Length 5mm | ||
Termination Style Solder | ||
Standards/Approvals EU, RoHS | ||
Width 2.54mm | ||
- COO (Country of Origin):
- DE

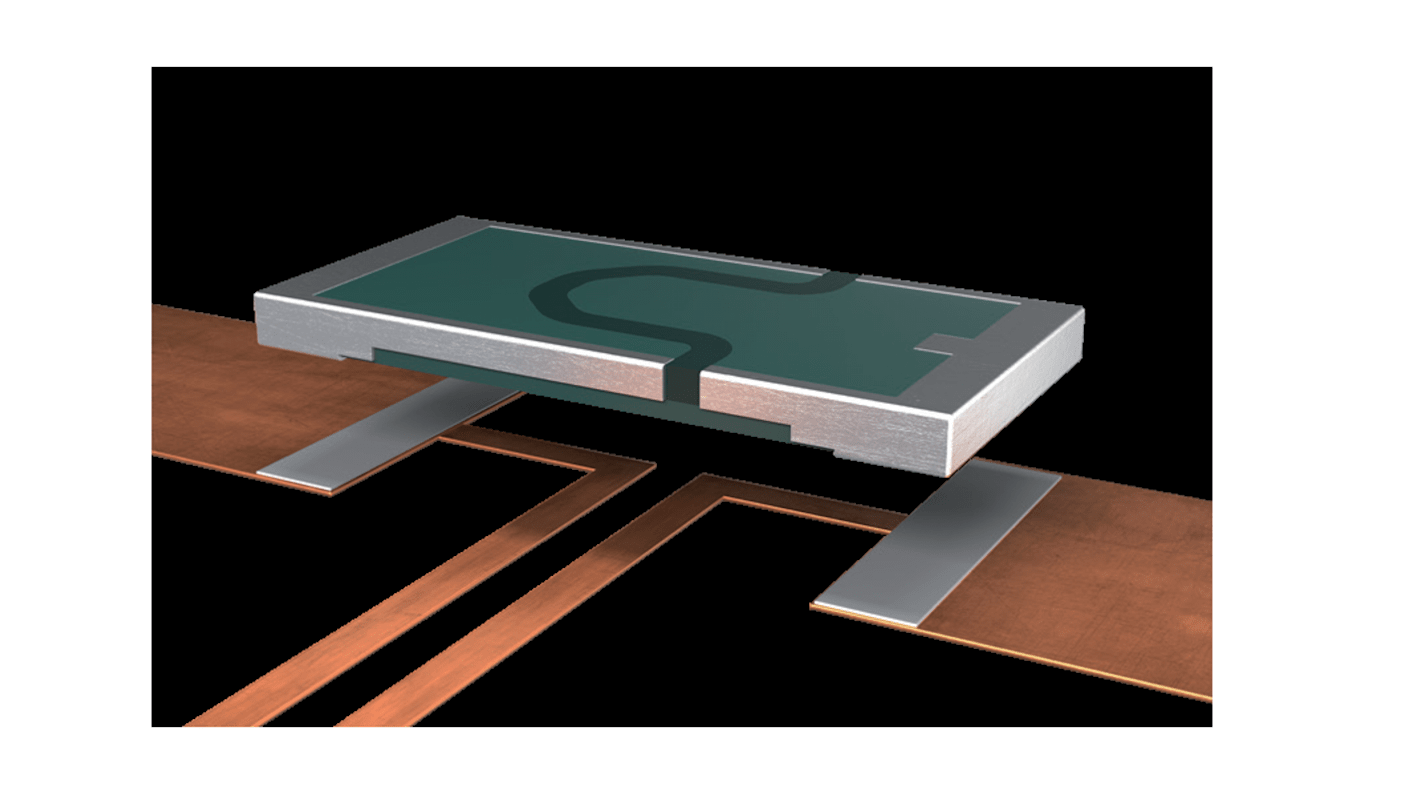

The Isabellenhutte Precision resistor works with a power rating of 2 watts and constant current up to 14 A. It works with 0.05 ohms resistance and high pulse power rating.
AEC Q200 qualified
Long term stability
-55 to +170°C applicable temperature range
1% tolerance
