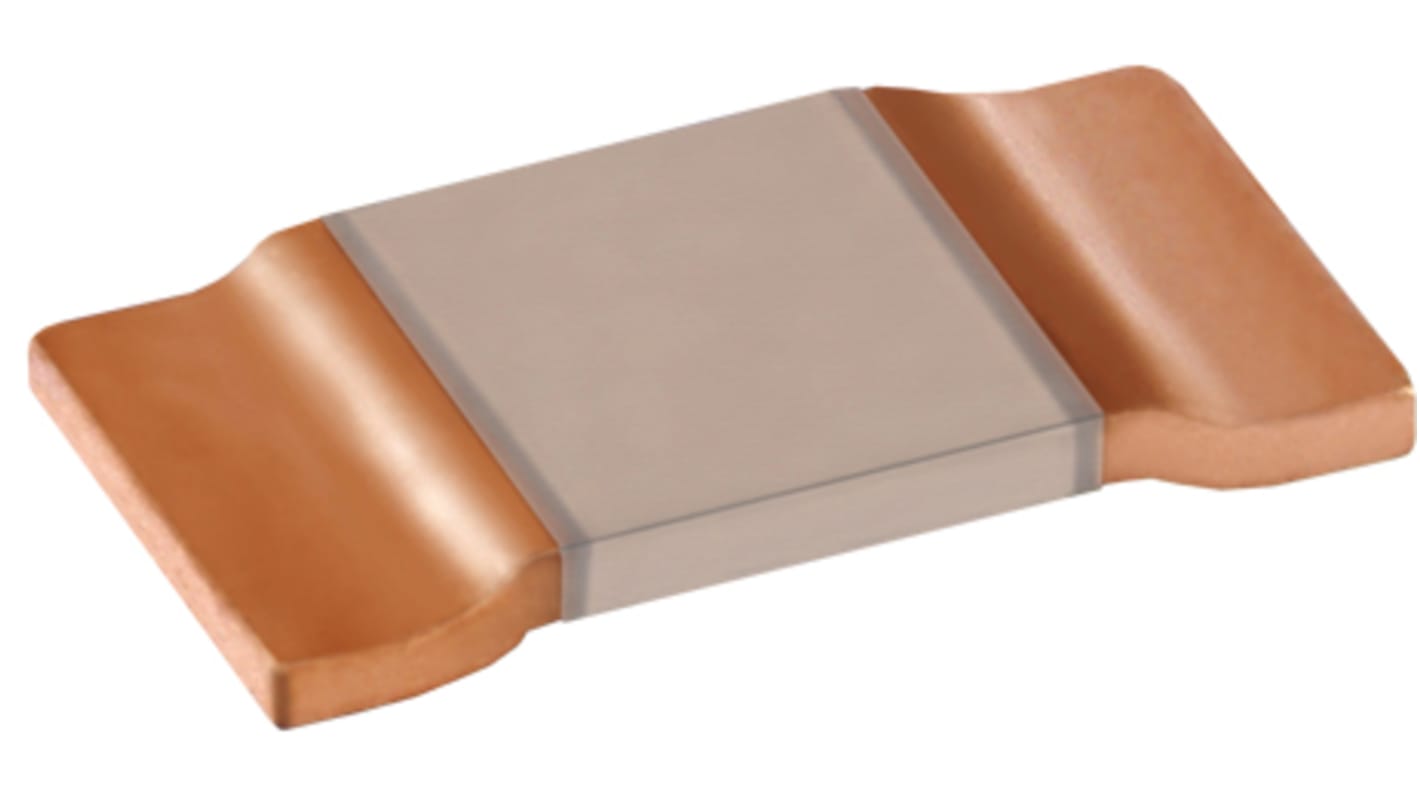

Isabellenhutte BVT 4mΩ, 2512 (6432M) SMD Resistor ±1% 3 W @ 100°C
- RS Stock No.:
- 193-0034
- Mfr. Part No.:
- BVT-I-R004-1.0
- Brand:
- Isabellenhutte
Bulk discount available
Subtotal (1 tape of 10 units)*
£15.78
(exc. VAT)
£18.94
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 5,000 unit(s) shipping from 15 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
---|---|---|
10 - 90 | £1.578 | £15.78 |
100 - 240 | £1.468 | £14.68 |
250 - 490 | £1.341 | £13.41 |
500 - 990 | £1.248 | £12.48 |
1000 + | £1.09 | £10.90 |
*price indicative
- RS Stock No.:
- 193-0034
- Mfr. Part No.:
- BVT-I-R004-1.0
- Brand:
- Isabellenhutte
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Isabellenhutte | |
Resistance | 4mΩ | |
Package/Case | 2512 (6432M) | |
Tolerance | ±1% | |
Power Rating | 3 W @ 100°C | |
Temperature Coefficient | 50ppm/K | |
Automotive Standard | AEC-Q200 | |
Series | BVT | |
Minimum Operating Temperature | -65°C | |
Maximum Operating Temperature | +170°C | |
Select all | ||
---|---|---|
Brand Isabellenhutte | ||
Resistance 4mΩ | ||
Package/Case 2512 (6432M) | ||
Tolerance ±1% | ||
Power Rating 3 W @ 100°C | ||
Temperature Coefficient 50ppm/K | ||
Automotive Standard AEC-Q200 | ||
Series BVT | ||
Minimum Operating Temperature -65°C | ||
Maximum Operating Temperature +170°C | ||
- COO (Country of Origin):
- DE
ISA-WELD® Precision SMD current sensing resistor. Small size ideal for Current sensor for power hybrid applications, High current applications for the automotive market, Frequency converters and Power modules.
Power rating up to 6 W 1
Continuous current load up to 100 A (0.3 mOhm)
Heavy copper connectors
Excellent long-term stability
High application temperature range -65 to +170 °C due to special design
Applications
Current sensor for power hybrid applications
High current applications for the automotive market
Frequency converters
Power modules
Continuous current load up to 100 A (0.3 mOhm)
Heavy copper connectors
Excellent long-term stability
High application temperature range -65 to +170 °C due to special design
Applications
Current sensor for power hybrid applications
High current applications for the automotive market
Frequency converters
Power modules
