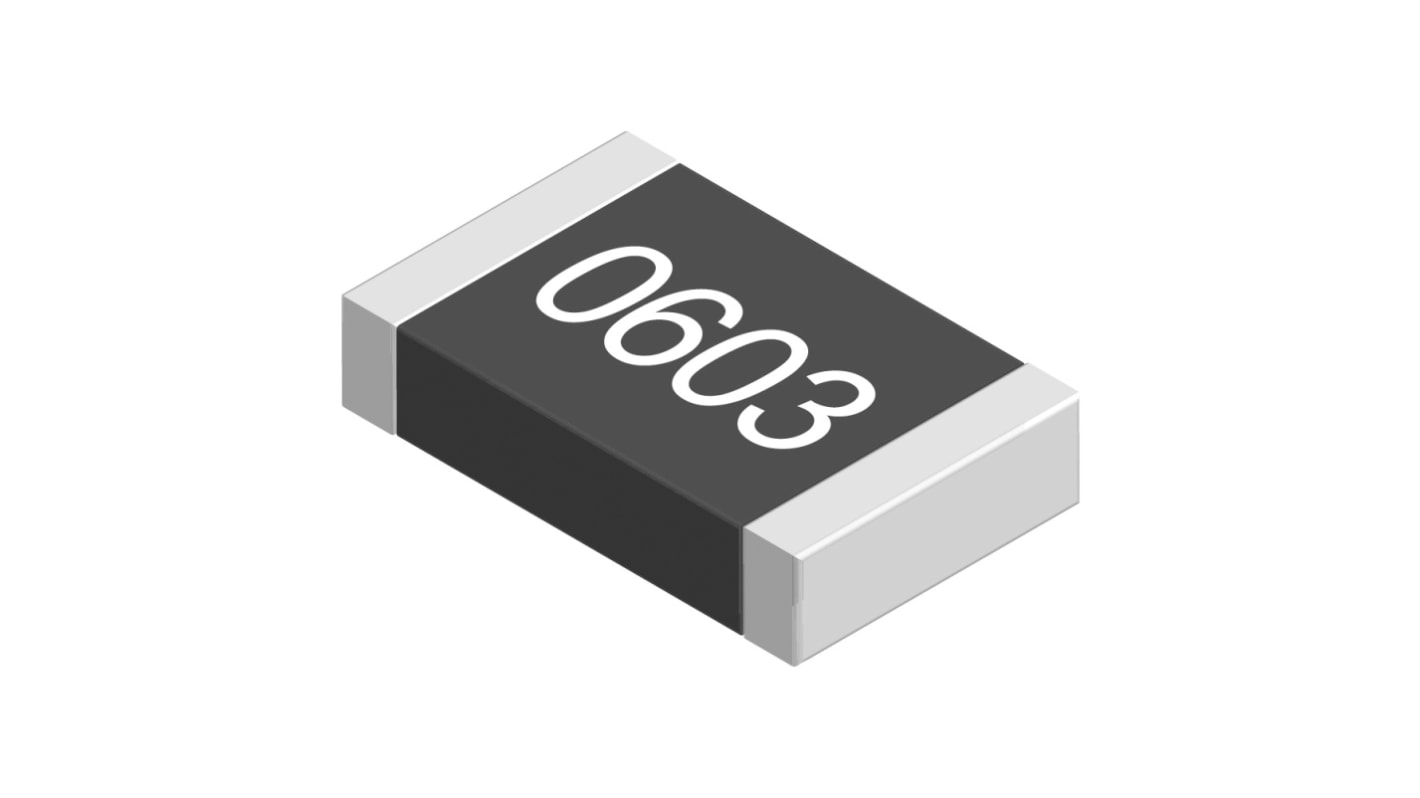

Name: Panasonic ERA 1000 Ω, 0603 Metal Film Surface Mount Resistor ±0.1 % 0.1 W - ERA3ARB102V
Brand: Panasonic
SKU: 181-2446
Price: 0.22 GBP
Availability: OutOfStock

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Panasonic
	Product Type	Surface Mount Resistor
	Resistance	1000Ω
	Technology	Metal Film
	Package/Case	0603
	Tolerance	±0.1 %
	Packaging	Punched Carrier Tape
	Power Rating	0.1W
	Voltage	75V
	Temperature Coefficient	-10 ppm/°C, +10 ppm/°C
	Automotive Standard	AEC-Q200
	Series	ERA
	Minimum Operating Temperature	-55°C
	Maximum Operating Temperature	155°C
	Length	1.6mm
	Standards/Approvals	IEC 60115-8, JEITA RC-2134C, JIS C 5201-8, RoHS
	Height	0.45mm
	Termination Style	Solder
	Width	0.8mm

	Select all
	Brand Panasonic
	Product Type Surface Mount Resistor
	Resistance 1000Ω
	Technology Metal Film
	Package/Case 0603
	Tolerance ±0.1 %
	Packaging Punched Carrier Tape
	Power Rating 0.1W
	Voltage 75V
	Temperature Coefficient -10 ppm/°C, +10 ppm/°C
	Automotive Standard AEC-Q200
	Series ERA
	Minimum Operating Temperature -55°C
	Maximum Operating Temperature 155°C
	Length 1.6mm
	Standards/Approvals IEC 60115-8, JEITA RC-2134C, JIS C 5201-8, RoHS
	Height 0.45mm
	Termination Style Solder
	Width 0.8mm

Datasheet - ERA6AEB105V

Panasonic ERA Series SMD Resistor, 1 kΩ Resistance, ±0.1 % Tolerance - ERA3ARB102V

This SMD resistor is designed to deliver high precision within electronic circuits. With a resistance Value of 1 kΩ and thin film technology ensuring minimal thermal drift, it comes in a Compact 0603 package (1608M). This component is tailored for various applications requiring reliability over a wide temperature range.

Features & Benefits

• Provides a low tolerance of ±0.1% for high accuracy
• Operates effectively in temperatures from -55°C to +155°C
• Equipped with a temperature coefficient of ±10 ppm/°C for stability
• Complies with automotive standards, ensuring reliability in harsh conditions
• Minimal power rating of 0.1 W suitable for numerous applications
• Ensures high performance in Compact electronic designs

Applications

• Used in automotive adhering to stringent standards
• Utilised in circuit boards within various electronic devices
• Integrated in precision measurement tools for accurate readings
• Implemented in power management systems for energy efficiency
• Effective in consumer electronics for enhanced durability

What are the advantages of using a thin film resistor in my design?

Thin film resistors offer superior accuracy and stability with low temperature coefficients, making them Ideal for high-performance electronic applications.

How does the temperature rating impact the performance of a resistor?

A wide temperature rating allows the resistor to maintain its performance in diverse environments, ensuring reliability across different operational conditions.

Can this component be used in high-frequency applications?

Yes, this SMD resistor is suitable for high-frequency applications due to its low parasitic capacitance and high precision characteristics.

What is the significance of the AEC-Q200 compliance?

AEC-Q200 compliance indicates the resistor meets stringent automotive reliability standards, ensuring durability in automotive electronics and applications subject to harsh conditions.

Where would I typically find this resistor used within an automotive system?

You would typically find it in the control units, sensor circuits, and any other electronic modules where precision and reliability are critical.

Standards

IEC 60115-8, JIS C 5201-8, EIAJ RC-2133B

Panasonic ERA 1000 Ω, 0603 Metal Film Surface Mount Resistor ±0.1 % 0.1 W - ERA3ARB102V
