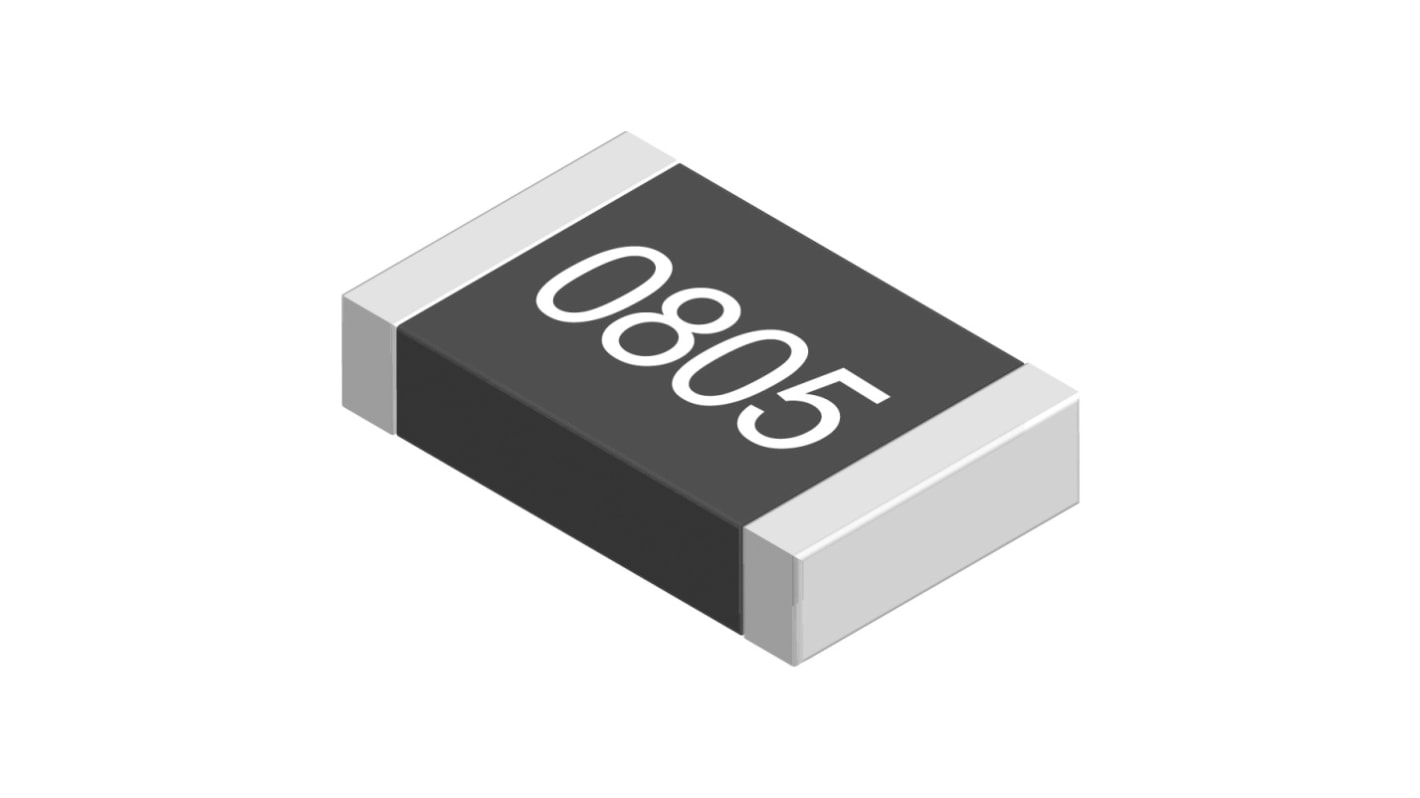

Panasonic ERJ 4.99 kΩ, 0805 Thick Film Surface Mount Resistor ±1 % 0.125 W - ERJ6ENF4991V

RS Stock No.:: 176-3519
Mfr. Part No.:: ERJ6ENF4991V
Brand:: Panasonic

Panasonic ERJ 4.99 kΩ, 0805 Thick Film Surface Mount Resistor ±1 % 0.125 W - ERJ6ENF4991V

Subtotal (1 reel of 1000 units)*

£10.00

(exc. VAT)

£10.00

(inc. VAT)

FREE delivery for orders over £60.00

Temporarily out of stock

48,000 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Reel*
1000 +	£0.01	£10.00

*price indicative

RS Stock No.:: 176-3519
Mfr. Part No.:: ERJ6ENF4991V
Brand:: Panasonic

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Panasonic
	Resistance	4.99kΩ
	Product Type	Surface Mount Resistor
	Technology	Thick Film
	Package/Case	0805
	Packaging	Punched Carrier Tape
	Tolerance	±1 %
	Power Rating	0.125W
	Voltage	150V
	Temperature Coefficient	±100 ppm/°C
	Automotive Standard	AEC-Q200
	Minimum Operating Temperature	-55°C
	Series	ERJ
	Maximum Operating Temperature	155°C
	Length	2mm
	Standards/Approvals	IEC 60115-8, JEITA RC-2134C, JIS C 5201-8, RoHS
	Width	1.25mm
	Height	0.6mm
	Termination Style	Solder

	Select all
	Brand Panasonic
	Resistance 4.99kΩ
	Product Type Surface Mount Resistor
	Technology Thick Film
	Package/Case 0805
	Packaging Punched Carrier Tape
	Tolerance ±1 %
	Power Rating 0.125W
	Voltage 150V
	Temperature Coefficient ±100 ppm/°C
	Automotive Standard AEC-Q200
	Minimum Operating Temperature -55°C
	Series ERJ
	Maximum Operating Temperature 155°C
	Length 2mm
	Standards/Approvals IEC 60115-8, JEITA RC-2134C, JIS C 5201-8, RoHS
	Width 1.25mm
	Height 0.6mm
	Termination Style Solder

Datasheet - ERJ8ENF1201V

COO (Country of Origin):: CN

Panasonic ERJ Series SMD Resistor, 4.99 kΩ Resistance, ±1 % Tolerance - ERJ6ENF4991V

This SMD resistor is a high precision component designed for robust applications within the electronics industry. It features a resistance of 4.99 kΩ and employs thick film technology, making it Ideal for a variety of electronic circuit designs. With Compact dimensions of 0805 (2012M), it can effectively fit into space-constrained environments, while its operational temperature range of -55 °C to +155 °C ensures reliable performance in diverse conditions.

Features & Benefits

• Provides a resistance Value of 4.99 kΩ for accurate circuit performance
• Utilises thick film technology for enhanced durability
• Operates safely within a temperature range of -55 °C to +155 °C
• Designed to meet AEC-Q200 standards for automotive applications
• Delivers a power rating of 0.125W for efficient energy use
• Exhibits a low tolerance of ±1% for precise applications

Applications

• Utilised in automotive electronic control units (ECUs)
• Employed in power management systems for effective load regulation
• Suitable for signal processing in communication devices
• Integrated into sensor and actuator circuits within automation systems

What kind of performance can I expect in extreme temperatures?

This component operates reliably from -55 °C to +155 °C, making it suitable for both cold and hot conditions prevalent in automotive and industrial applications.

How does the tolerance of this component affect circuit design?

A low tolerance of ±1% ensures that the resistor maintains precise resistance values, which is Crucial for sensitive electronics where even minor deviations can lead to performance issues.

In what scenarios would the thick film technology be particularly beneficial?

Thick film technology offers high durability and stability, making it Ideal for demanding environments such as automotive applications where components are subject to vibration and thermal stress.

What applications specifically benefit from the 0.125W power rating?

The 0.125W power rating is particularly suitable for low-power circuits, ensuring efficient operation without excessive heat generation, which is essential in Compact electronic designs.
