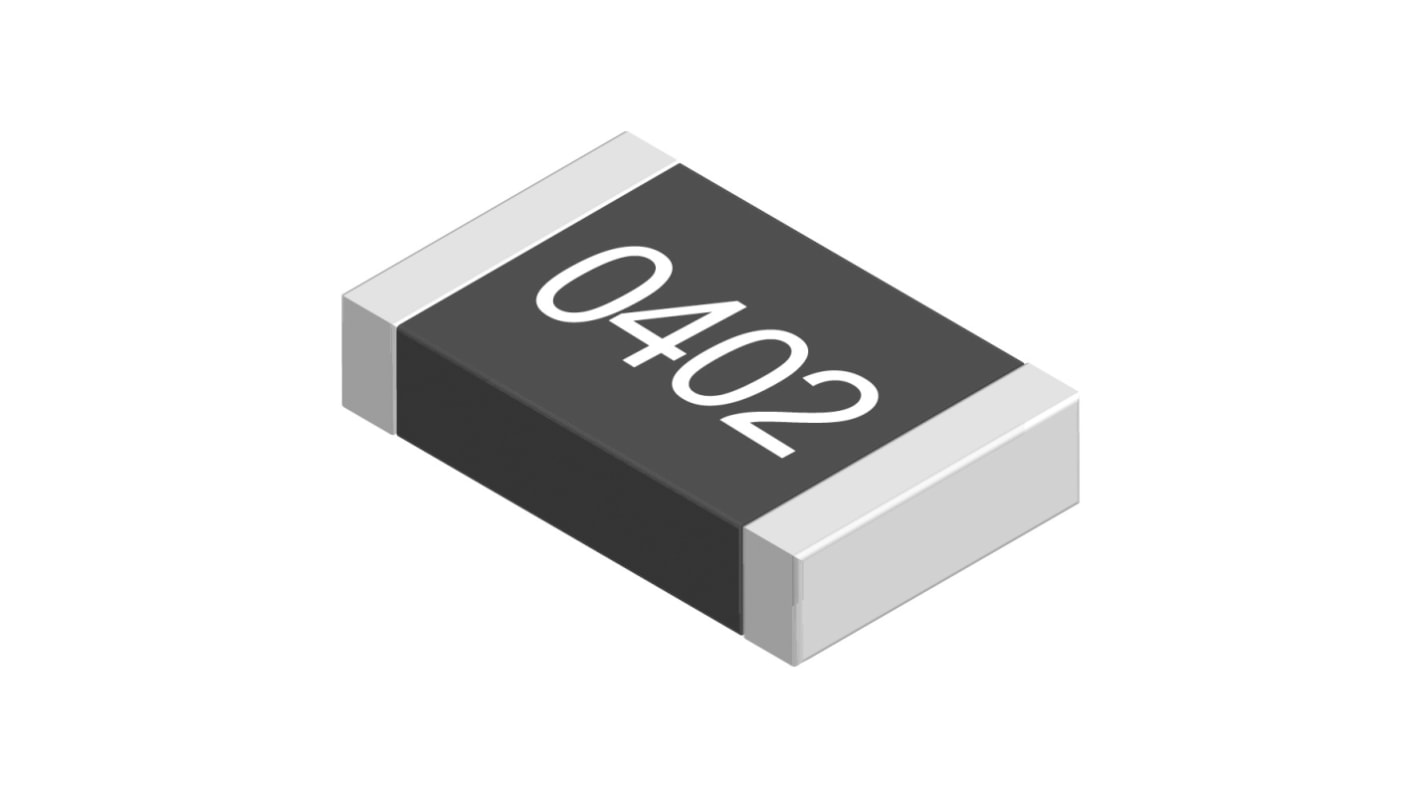

Panasonic ERJ 5.1 Ω, 0402 Thick Film Surface Mount Resistor ±5 % 0.1 W - ERJ2GEJ5R1X

RS Stock No.:: 176-3510
Mfr. Part No.:: ERJ2GEJ5R1X
Brand:: Panasonic

Panasonic ERJ 5.1 Ω, 0402 Thick Film Surface Mount Resistor ±5 % 0.1 W - ERJ2GEJ5R1X

Subtotal (1 reel of 1000 units)*

£2.00

(exc. VAT)

£2.00

(inc. VAT)

Stock information currently inaccessible - Please check back later

Units	Per unit	Per Reel*
1000 +	£0.002	£2.00

*price indicative

RS Stock No.:: 176-3510
Mfr. Part No.:: ERJ2GEJ5R1X
Brand:: Panasonic

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Panasonic
	Product Type	Surface Mount Resistor
	Resistance	5.1Ω
	Technology	Thick Film
	Package/Case	0402
	Packaging	Punched Carrier Tape
	Tolerance	±5 %
	Power Rating	0.1W
	Voltage	50V
	Temperature Coefficient	-100 ppm/°C, +600 ppm/°C
	Automotive Standard	AEC-Q200
	Series	ERJ
	Minimum Operating Temperature	-55°C
	Maximum Operating Temperature	155°C
	Width	0.5mm
	Standards/Approvals	EIAJ RC-2134B, IEC 60115-8, JIS C 5201-8
	Length	1mm
	Termination Style	Solder
	Height	0.35mm

	Select all
	Brand Panasonic
	Product Type Surface Mount Resistor
	Resistance 5.1Ω
	Technology Thick Film
	Package/Case 0402
	Packaging Punched Carrier Tape
	Tolerance ±5 %
	Power Rating 0.1W
	Voltage 50V
	Temperature Coefficient -100 ppm/°C, +600 ppm/°C
	Automotive Standard AEC-Q200
	Series ERJ
	Minimum Operating Temperature -55°C
	Maximum Operating Temperature 155°C
	Width 0.5mm
	Standards/Approvals EIAJ RC-2134B, IEC 60115-8, JIS C 5201-8
	Length 1mm
	Termination Style Solder
	Height 0.35mm

Datasheet - ERJ8ENF1201V

COO (Country of Origin):: CN

Panasonic ERJ Series SMD Resistor, 5.1Ω Resistance, ±5% Tolerance - ERJ2GEJ5R1X

This SMD resistor is an automotive-grade solution designed to enhance electronic performance. With a resistance Value of 5.1 Ω, this device is Ideal for various applications in the electrical and electronic sectors. The component measures 0402 (1005M) and is built using thick film technology, ensuring robustness and longevity, with an operating temperature range from -55°C to +155°C.

Features & Benefits

• Low tolerance of ±5% ensures precise performance
• High power rating of 0.1 W supports efficient energy management
• Temperature coefficient rated at -100 to +600 ppm/°C offers stability
• Complies with AEC-Q200 automotive standards for safety
• Compact 0402 package design enhances space utilisation
• Part of Panasonic’s ERJ resistor series for quality assurance

Applications

• Used in automotive electronic modules for precise control
• Utilised in industrial automation systems to improve reliability
• Ideal for consumer electronics requiring Compact solutions
• Effective in telecommunications for signal integrity

What environmental conditions can this component withstand?

It can operate effectively within a temperature range of -55°C to +155°C, making it suitable for diverse environments.

How does the low tolerance impact circuit design?

The low tolerance of ±5% allows for accurate circuit performance, reducing the risk of failures due to resistance variations.

What technology is used in its manufacturing process?

This component utilises thick film technology, which adds durability and reliability to the resistor's performance.

What advantages does the temperature coefficient provide?

The temperature coefficient of -100 to +600 ppm/°C ensures minimal performance variation due to temperature changes, enhancing circuit stability.
