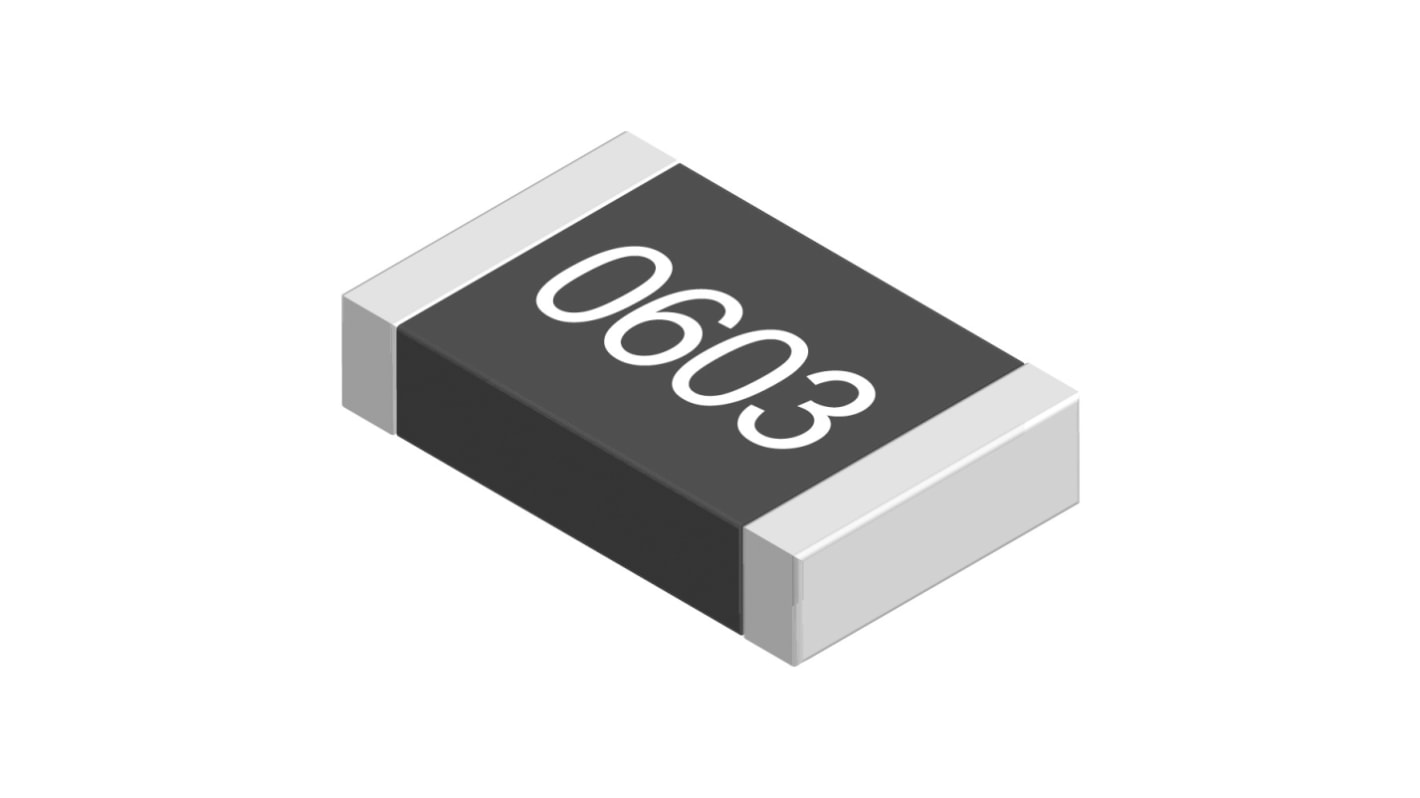

Panasonic ERJ 680 Ω, 0603 Thick Film Surface Mount Resistor ±1 % 0.1 W - ERJ3EKF6800V

RS Stock No.:: 176-3503
Mfr. Part No.:: ERJ3EKF6800V
Brand:: Panasonic

Panasonic ERJ 680 Ω, 0603 Thick Film Surface Mount Resistor ±1 % 0.1 W - ERJ3EKF6800V

Subtotal (1 reel of 1000 units)*

£6.00

(exc. VAT)

£7.00

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

49,000 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Reel*
1000 +	£0.006	£6.00

*price indicative

RS Stock No.:: 176-3503
Mfr. Part No.:: ERJ3EKF6800V
Brand:: Panasonic

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Panasonic
	Resistance	680Ω
	Product Type	Surface Mount Resistor
	Technology	Thick Film
	Package/Case	0603
	Packaging	Punched Carrier Tape
	Tolerance	±1 %
	Power Rating	0.1W
	Voltage	75V
	Temperature Coefficient	±100 ppm/°C
	Automotive Standard	AEC-Q200
	Series	ERJ
	Minimum Operating Temperature	-55°C
	Maximum Operating Temperature	155°C
	Termination Style	Solder
	Length	1.6mm
	Standards/Approvals	IEC 60115-8, JEITA RC-2134C, JIS C 5201-8, RoHS
	Width	0.8mm
	Height	0.45mm

	Select all
	Brand Panasonic
	Resistance 680Ω
	Product Type Surface Mount Resistor
	Technology Thick Film
	Package/Case 0603
	Packaging Punched Carrier Tape
	Tolerance ±1 %
	Power Rating 0.1W
	Voltage 75V
	Temperature Coefficient ±100 ppm/°C
	Automotive Standard AEC-Q200
	Series ERJ
	Minimum Operating Temperature -55°C
	Maximum Operating Temperature 155°C
	Termination Style Solder
	Length 1.6mm
	Standards/Approvals IEC 60115-8, JEITA RC-2134C, JIS C 5201-8, RoHS
	Width 0.8mm
	Height 0.45mm

Datasheet - ERJ8ENF1201V

COO (Country of Origin):: CN

Panasonic ERJ Series SMD Resistor, 680Ω Resistance, ±1 % Tolerance - ERJ3EKF6800V

This SMD resistor offers reliable performance for various electronic applications. With a resistance of 680Ω, it is designed in a Compact 0603 (1608M) package, making it suitable for surface mount technology. The use of thick film technology ensures durability and stable performance across a wide temperature range of -55 °C to +155 °C.

Features & Benefits

• A power rating of 0.1 W makes it efficient for low-power applications
• ±1 % tolerance ensures consistent performance and reliability
• AEC-Q200 compliant, suitable for automotive applications
• Compact 0603 dimensions facilitate space-saving designs
• High-temperature performance enhances reliability in demanding environments
• Suitable for use in automation and electrical applications

Applications

• Employed in automotive circuits requiring precision resistance control
• Utilised in electronic devices needing reliable low power consumption
• Applied in automation systems for precision signal conditioning
• Incorporated in circuit boards where space is a constraint

What factors influence the choice of a resistor for automotive applications?

AEC-Q200 compliance ensures optimal reliability under automotive standards. Additionally, the appropriate resistance value, power rating, and tolerance range can directly impact circuit performance and longevity in challenging environments.

How does temperature variance affect the functionality of this resistor?

The operating temperature range of -55 °C to +155 °C provides robust performance, allowing it to function effectively in diverse climates without degradation, ensuring long-term reliability in electrical systems.

What are the typical benefits of using thick film technology in resistors?

Thick film technology enhances the durability of resistors, providing better heat resistance and a wider operational temperature range, which is particularly advantageous in high-temperature settings.

What does the resistance tolerance indicate for circuit design?

A tolerance of ±1 % indicates the degree of accuracy in the resistor's resistance value, which is essential for precise circuit function, affecting overall performance and reliability in sensitive electronic applications.
