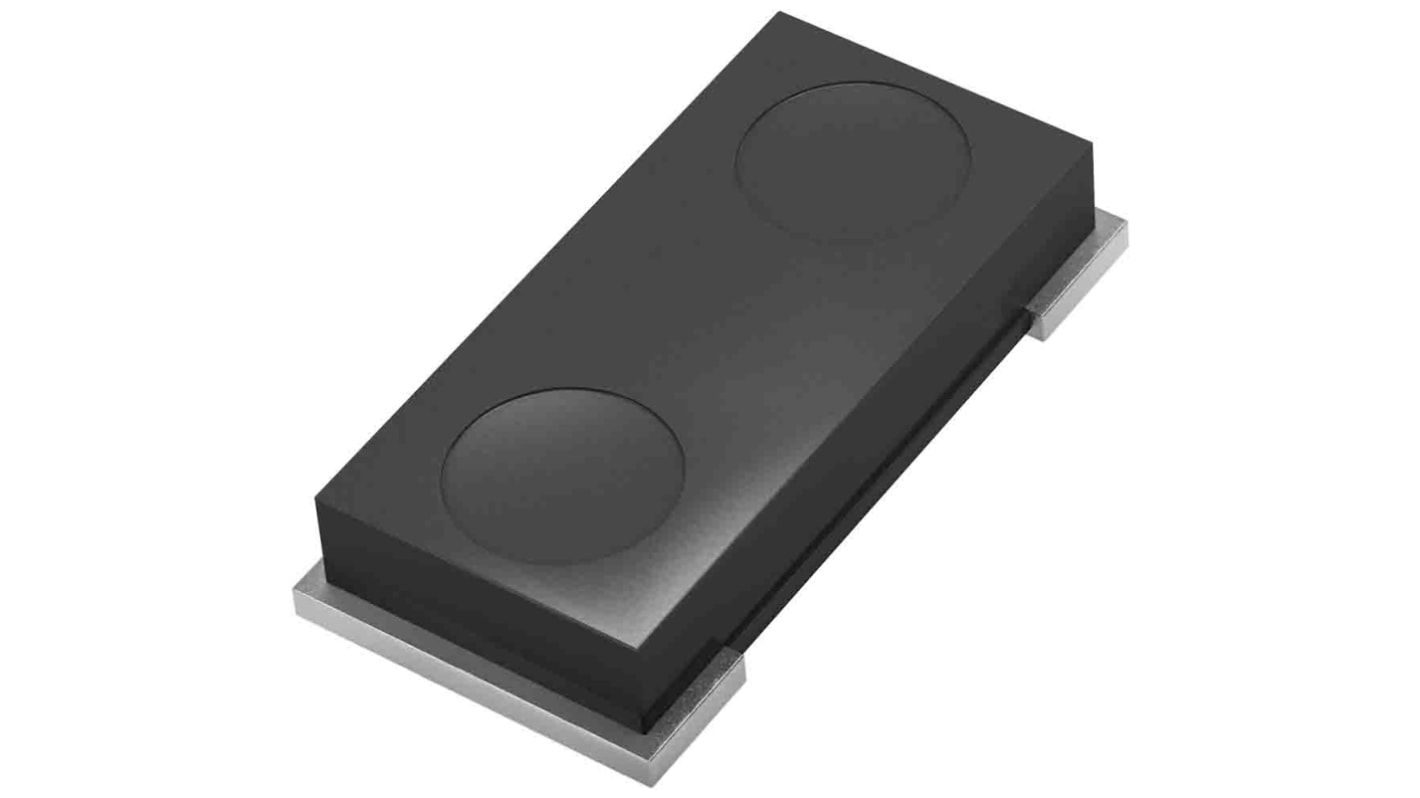

Panasonic ERJMP2 22mΩ, 1206 (3216M) Metal Plate SMD Resistor ±1% 1W

View all Surface Mount Resistors
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Sponsored
A Panasonic surface mount resistor on a burgandy background
Panasonic Brand Logo
Panasonic Aluminium Capacitors & Surface Mount Resistors
Build reliable, compact designs with Panasonic’s trusted Aluminium Capacitors and precision Surface Mount Resistors.
Shop Here
RS Stock No.:
122-3887
Mfr. Part No.:
ERJMP2MF22MU
Brand:
Panasonic
Find similar products by selecting one or more attributes.
Select all

Brand

Panasonic

Resistance

22mΩ

Technology

Metal Plate

Package/Case

1206 (3216M)

Tolerance

±1%

Power Rating

1W

Temperature Coefficient

±75ppm/°C

Series

ERJMP2

Minimum Operating Temperature

-65°C

Maximum Operating Temperature

+170°C

Priced to Clear

Yes

COO (Country of Origin):
JP

Panasonic ERJMP1206 Current Sensing Metal Shunt Resistors


ERJMP current sensing resistors from Panasonic are a surface mount solution. With high power, these resistors feature a compact, small case size. Offering a wide operating temperature range of -65°C to +170°C, ERJMP resistors are constructed with an outer resin that offers high heat dissipation. With metal plate bonding technology, these resistors provide long-term stability.

With an AEC-Q200 qualification, these metal plate current sensing resistors are suitable for automotive applications.

Standards

ISO9001, ISO/TS16949 certification.


Bulk metal chip resistors
Low thermal e.m.f.
Non-inductive
Marked with 3-digit resistance code
Mini reels are ideal for small batch production, development and R&D department
Suitable for automatic assembly on pick and place machinery
