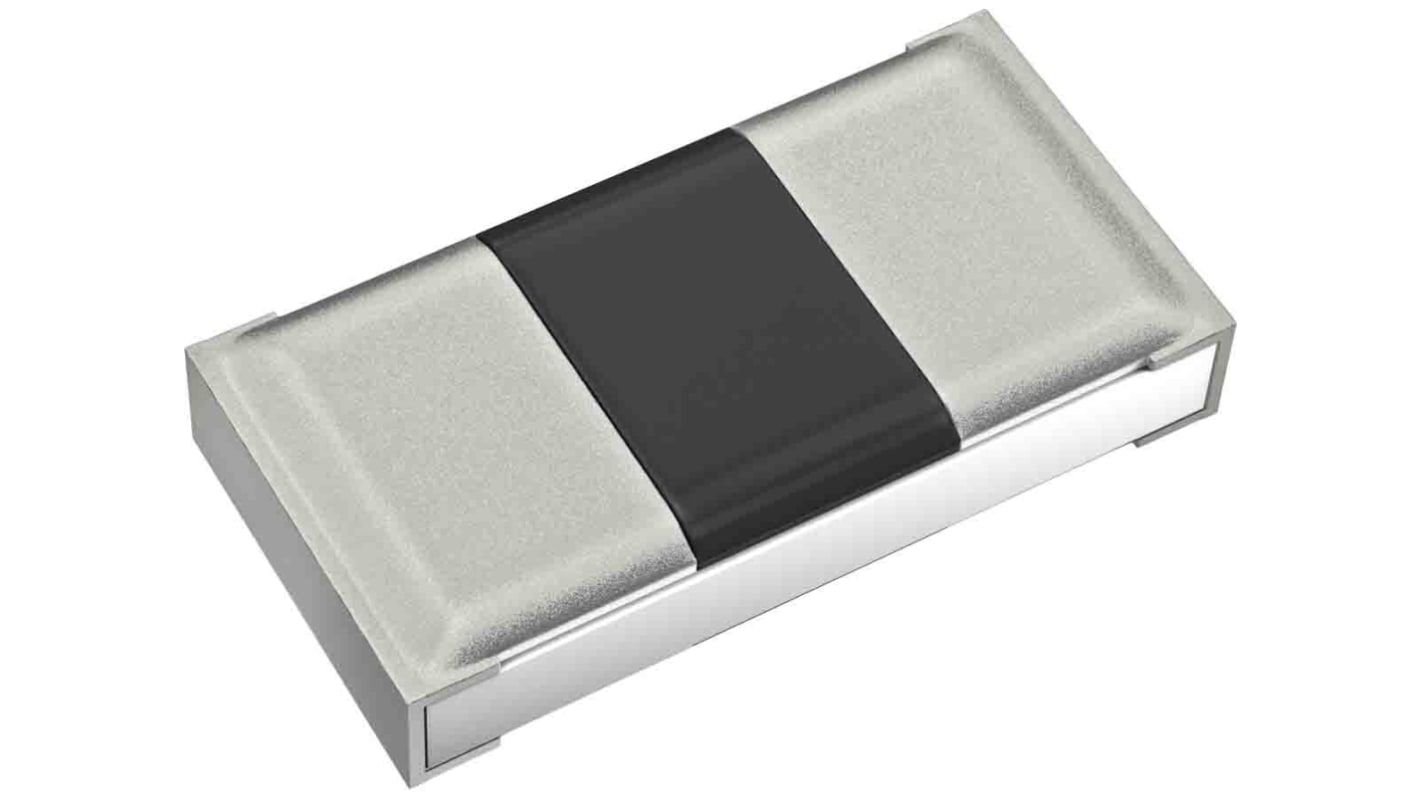

Panasonic ERJ8BW 30mΩ, 1206 (3216M) Thick Film SMD Resistor ±1% 1W

View all Surface Mount Resistors
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Sponsored
A Panasonic surface mount resistor on a burgandy background
Panasonic Brand Logo
Panasonic Aluminium Capacitors & Surface Mount Resistors
Build reliable, compact designs with Panasonic’s trusted Aluminium Capacitors and precision Surface Mount Resistors.
Shop Here
RS Stock No.:
110-0429
Mfr. Part No.:
ERJ8BWFR030V
Brand:
Panasonic
Find similar products by selecting one or more attributes.
Select all

Brand

Panasonic

Resistance

30mΩ

Technology

Thick Film

Package/Case

1206 (3216M)

Tolerance

±1%

Power Rating

1W

Temperature Coefficient

±150ppm/°C

Series

ERJ8BW

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

+155°C

1206 Format ERJ8BW Series - 1%


Panasonic ERJ 8BW thick film chip resistors are compact and lightweight. Constructed from three layers of electrodes and a metal glaze thick film resistive element, ERJ 8BW resistors have a double-sided resistive element structure. This offers improved high power/resistance to pulse. These chip resistors features low-resistance values of 10 mΩ to 100 mΩ.

AEC-Q200 qualified
Low TCR
Current sensing
Small size
Low resistance value
Suitable for both flow and reflow soldering

Applications


These chip resistors are AEC-Q200 qualified and are suitable for automotive applications.

Standards

IEC 60115-8, JIS C 5201-8, EIAK RC-2134B
