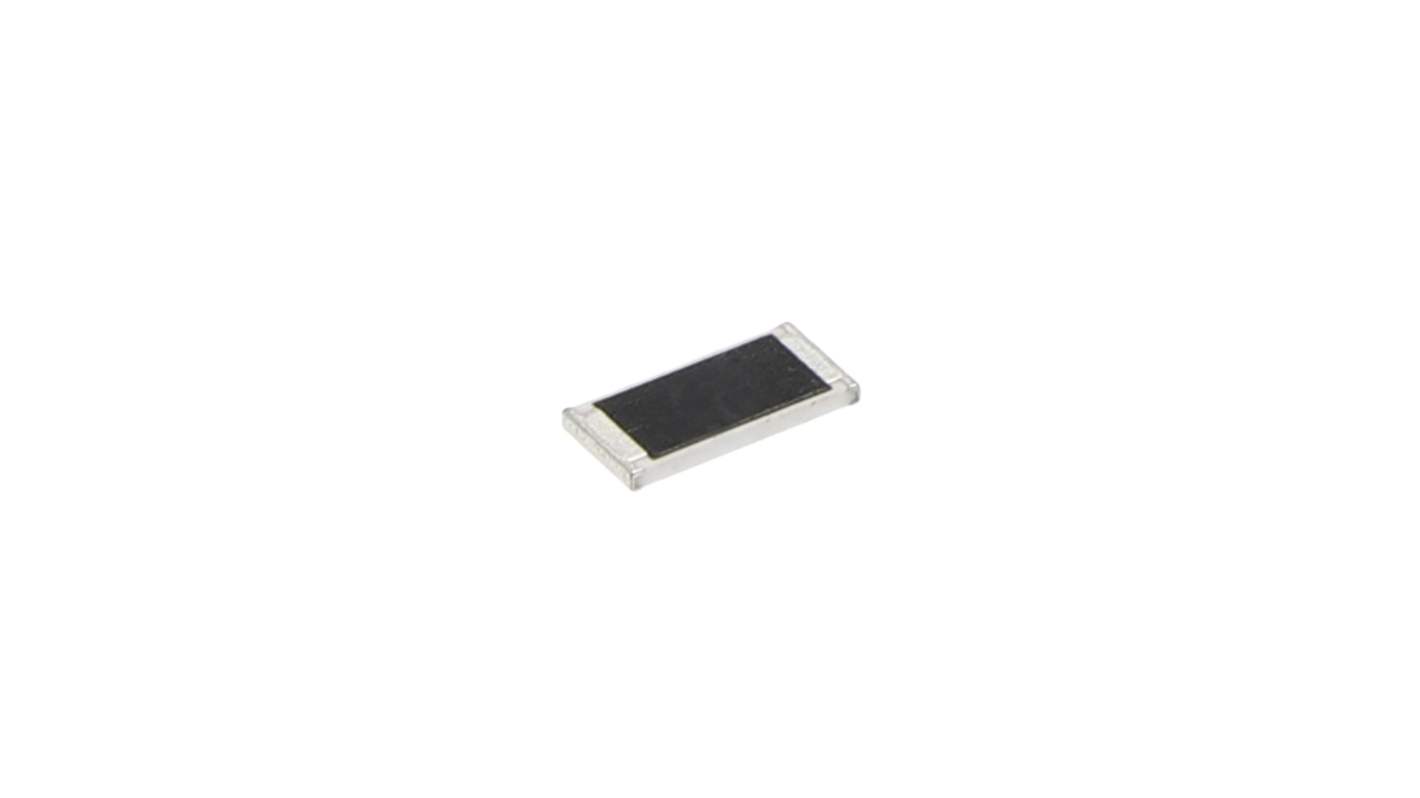

Panasonic ERA 5.6 kΩ, 0603 Thin Film Surface Mount Resistor ±0.1 % 0.1 W - ERA3AEB562V

View all Surface Mount Resistors
Bulk discount available

Subtotal (1 pack of 5 units)*

£0.55

(exc. VAT)

£0.65

(inc. VAT)

Add to Basket
Select or type quantity
Limited stock
  • 850 left, ready to ship
  • Plus 860 left, shipping from 28 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
Per Pack*
5 - 45£0.11£0.55
50 - 95£0.054£0.27
100 - 245£0.044£0.22
250 - 495£0.032£0.16
500 +£0.026£0.13

*price indicative

Packaging Options:
RS Stock No.:
566-967
Distrelec Article No.:
304-29-768
Mfr. Part No.:
ERA3AEB562V
Brand:
Panasonic
Find similar products by selecting one or more attributes.
Select all

Brand

Panasonic

Product Type

Surface Mount Resistor

Resistance

5.6kΩ

Technology

Thin Film

Package/Case

0603

Packaging

Punched Carrier Tape

Tolerance

±0.1 %

Power Rating

0.1W

Voltage

75V

Temperature Coefficient

-25 ppm/°C, +25 ppm/°C

Automotive Standard

AEC-Q200

Minimum Operating Temperature

-55°C

Series

ERA

Maximum Operating Temperature

155°C

Standards/Approvals

RoHS

Length

1.6mm

Termination Style

Solder

Height

0.45mm

Width

0.8mm

Panasonic Series ERA SMD Resistor, 5.6kΩ Resistance, ±0.1 % Tolerance - ERA3AEB562V


This SMD resistor is an essential electronic component, designed for precision applications in various industries. This particular model boasts a resistance of 5.6 kΩ and follows thin film technology, ensuring high accuracy and stability. Its Compact 0603 package makes it suitable for surface mount technology, making it Ideal for modern electronic devices.

Features & Benefits


• Offers a low tolerance of ±0.1 % for accurate performance

• Features a power rating of 0.1W to handle various applications

• Designed with a temperature coefficient of ±25 ppm/°C for reliability

• Meets the AEC-Q200 standard for automotive applications

• Capable of operating in temperatures as low as -55 °C

Applications


• Used in automotive electronics to enhance circuit reliability

• Suitable for in automation and control systems

• Implemented in precision measurement devices for accurate data

• Used in high-temperature environments where stability is Crucial

What type of technology is utilised in its construction?


It employs thin film technology, which is known for its precision and stability, making it suitable for demanding electronic applications.

How does its temperature coefficient affect performance?


With a coefficient of ±25 ppm/°C, it maintains its resistance Value effectively across varying temperatures, ensuring reliable operation in diverse environments.

What standards ensure this resistor's quality in automotive applications?


It complies with the AEC-Q200 standard, assuring its use in automotive contexts where reliability and performance are paramount.
