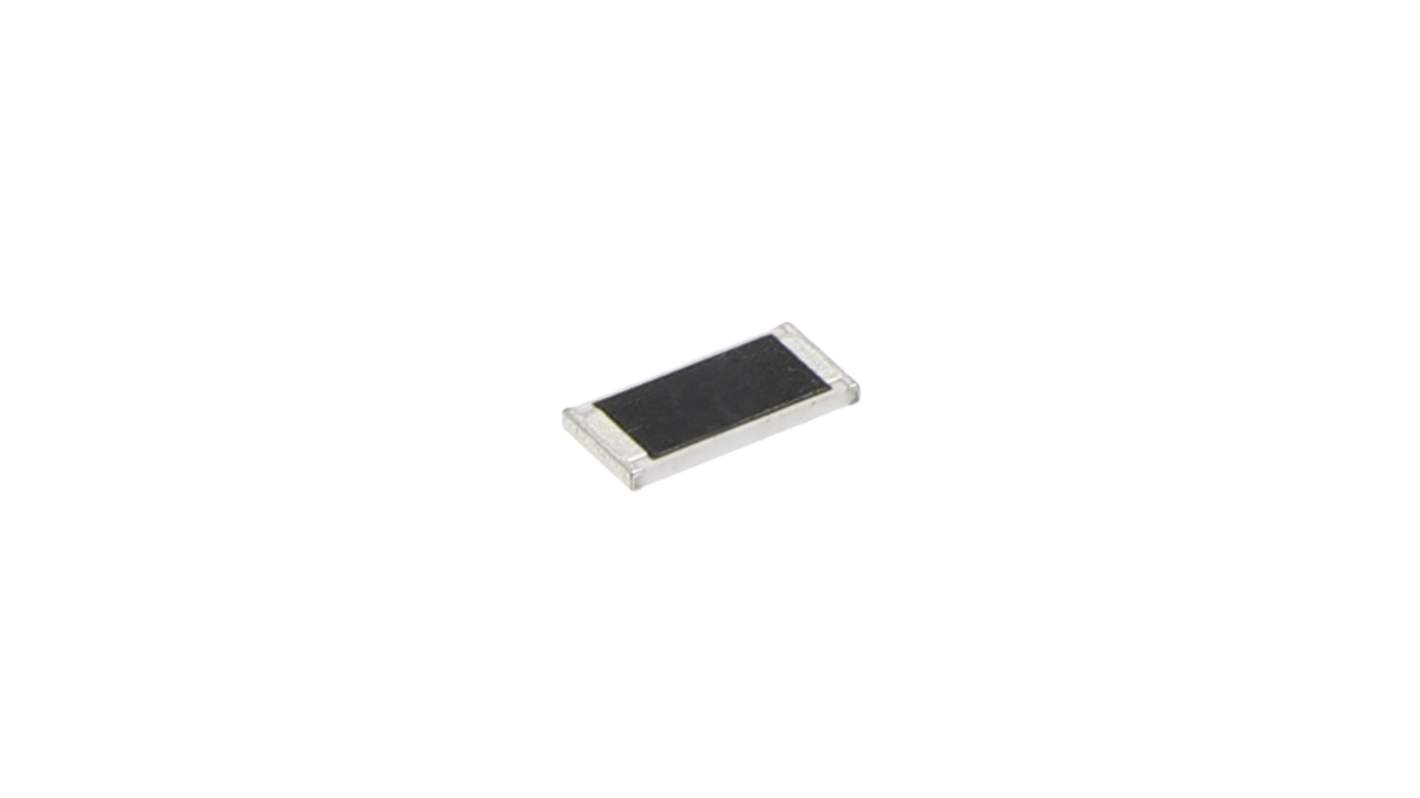

Panasonic ERA 15 kΩ, 0805 Thin Film Surface Mount Resistor ±0.1 % 0.125 W - ERA6AEB153V

View all Surface Mount Resistors
Bulk discount available

Subtotal (1 pack of 5 units)*

£0.39

(exc. VAT)

£0.47

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 860 unit(s) ready to ship
  • Plus 180 unit(s) shipping from 29 April 2026
  • Plus 5,000 unit(s) shipping from 24 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
Per Pack*
5 - 45£0.078£0.39
50 - 95£0.046£0.23
100 - 245£0.04£0.20
250 - 495£0.036£0.18
500 +£0.032£0.16

*price indicative

Packaging Options:
RS Stock No.:
566-503
Distrelec Article No.:
304-29-776
Mfr. Part No.:
ERA6AEB153V
Brand:
Panasonic
Find similar products by selecting one or more attributes.
Select all

Brand

Panasonic

Resistance

15kΩ

Product Type

Surface Mount Resistor

Technology

Thin Film

Package/Case

0805

Tolerance

±0.1 %

Packaging

Punched Carrier Tape

Voltage

100V

Power Rating

0.125W

Temperature Coefficient

-25 ppm/°C, +25 ppm/°C

Automotive Standard

AEC-Q200

Minimum Operating Temperature

-55°C

Series

ERA

Maximum Operating Temperature

155°C

Length

2mm

Termination Style

Solder

Height

0.5mm

Width

1.25mm

Standards/Approvals

RoHS

Panasonic Series ERA SMD Resistor, 15kΩ Resistance, ±0.1% Tolerance - ERA6AEB153V


This SMD resistor is a high-precision component designed for electronic applications. Featuring a resistance Value of 15 kΩ, it employs Advanced thin film technology for superior performance. The resistor comes in a Compact 0805 (2012M) package, Ideal for space-constrained designs, and operates within a temperature range from -55 °C, ensuring reliability in diverse environments.

Features & Benefits


• Utilises thin film technology for reliable performance

• Offers a resistance Value of 15 kΩ suitable for various circuits

• Maintains a low tolerance of ±0.1 % for accuracy

• Rated power of 0.125W ensures efficient power handling

• AEC-Q200 compliance meets stringent automotive standards

• Features a temperature coefficient of ±25 ppm/°C for stability

Applications


• Used in precision electronic circuitry for automation

• Employed in automotive SMD components for reliability

• Ideal for telecommunications and industrial control systems

• Applicable in consumer electronics where Compact size is Crucial

How does the tolerance affect circuit design choices?


A tolerance of ±0.1 % allows for precise control of current flow and voltage levels, making this resistor suitable for designs that require strict adherence to specifications.

What are the advantages of using thin film technology in resistors?


Thin film technology enhances stability, reduces noise, and allows for tighter tolerances compared to traditional resistor types, making these components Ideal for high-performance applications.

In which environments is this SMD resistor suitable for use?


With a minimum operating temperature of -55 °C, it can be deployed in harsh conditions, thus expanding its usability across a variety of challenging applications.

What should be considered when integrating this resistor into a circuit?


Users should take into account the power rating of 0.125W to ensure that applications do not exceed this limit to avoid overheating and potential failure.
