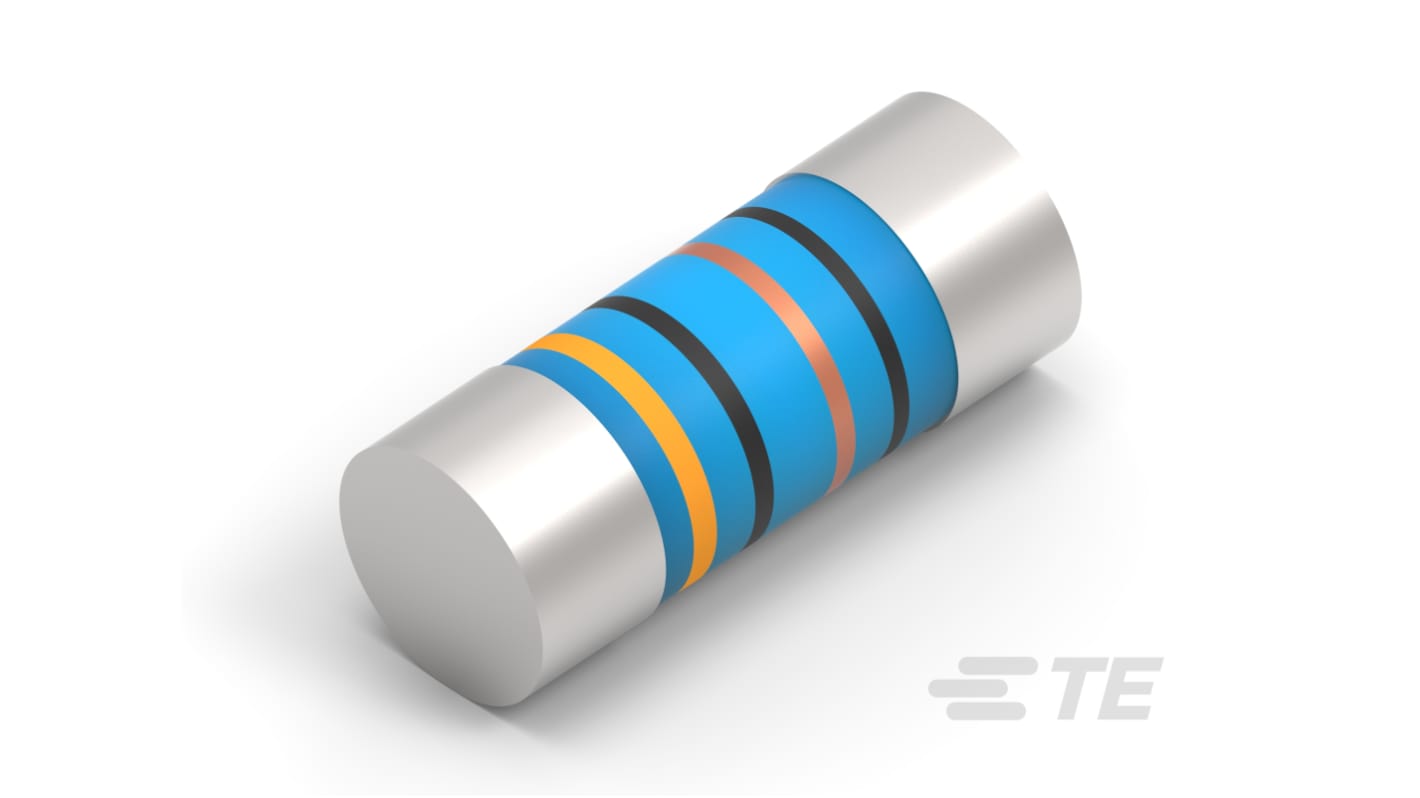

TE Connectivity Neohm SMA-A 3.9 kΩ, 0204 Thin Film Surface Mount Resistor 1 % Surface 0.4 W - 5-2176315-7
- RS Stock No.:
- 478-750
- Distrelec Article No.:
- 304-60-699
- Mfr. Part No.:
- 5-2176315-7
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 reel of 9000 units)*
£207.00
(exc. VAT)
£252.00
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 22 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 9000 - 36000 | £0.023 | £207.00 |
| 45000 + | £0.022 | £198.00 |
*price indicative
- RS Stock No.:
- 478-750
- Distrelec Article No.:
- 304-60-699
- Mfr. Part No.:
- 5-2176315-7
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Surface Mount Resistor | |
| Resistance | 3.9kΩ | |
| Resistor Type | Precision | |
| Technology | Thin Film | |
| Package/Case | 0204 | |
| Tolerance | 1 % | |
| Packaging | Tape & Reel | |
| Power Rating | 0.4W | |
| Voltage | 20V | |
| Temperature Coefficient | ±50 ppm/°C | |
| Mount Type | Surface | |
| Automotive Standard | No | |
| Series | Neohm SMA-A | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 155°C | |
| Standards/Approvals | 2016 Compliant, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC Compliant, EU REACH Regulation (EC) No. 1907/2006, EU RoHS Directive 2011/65/EU Compliant | |
| Termination Style | Melf 0204 | |
| Length | 3.5mm | |
| Height | 1.4mm | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Surface Mount Resistor | ||
Resistance 3.9kΩ | ||
Resistor Type Precision | ||
Technology Thin Film | ||
Package/Case 0204 | ||
Tolerance 1 % | ||
Packaging Tape & Reel | ||
Power Rating 0.4W | ||
Voltage 20V | ||
Temperature Coefficient ±50 ppm/°C | ||
Mount Type Surface | ||
Automotive Standard No | ||
Series Neohm SMA-A | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 155°C | ||
Standards/Approvals 2016 Compliant, China RoHS 2 Directive MIIT Order No 32, EU ELV Directive 2000/53/EC Compliant, EU REACH Regulation (EC) No. 1907/2006, EU RoHS Directive 2011/65/EU Compliant | ||
Termination Style Melf 0204 | ||
Length 3.5mm | ||
Height 1.4mm | ||
- COO (Country of Origin):
- TW
The TE Connectivity State-of-the-art surface mount precision resistor that delivers exceptional performance for various electronic applications. This high-quality thin film resistor is designed to meet stringent standards, ensuring accuracy and reliability in circuit operations. Its compact 0204 package size maximises space efficiency on your PCB, while its durable construction withstands demanding conditions. Operating over a range of temperatures, this resistor guarantees stability and performance, regardless of the environment. With features like a low temperature coefficient and excellent tolerance, it easily integrates into numerous designs, making it a vital component for engineers and designers aiming for precision in their projects.
Designed for surface mount applications, providing easier assembly
Excellent thermal stability ensures consistent performance
Capable of operating under a wide voltage range for versatile use
Features a unique metal electrode leadless face construction
Provides low halogen content, aligning with environmental sustainability
Reflow solder capable, facilitating various soldering processes
