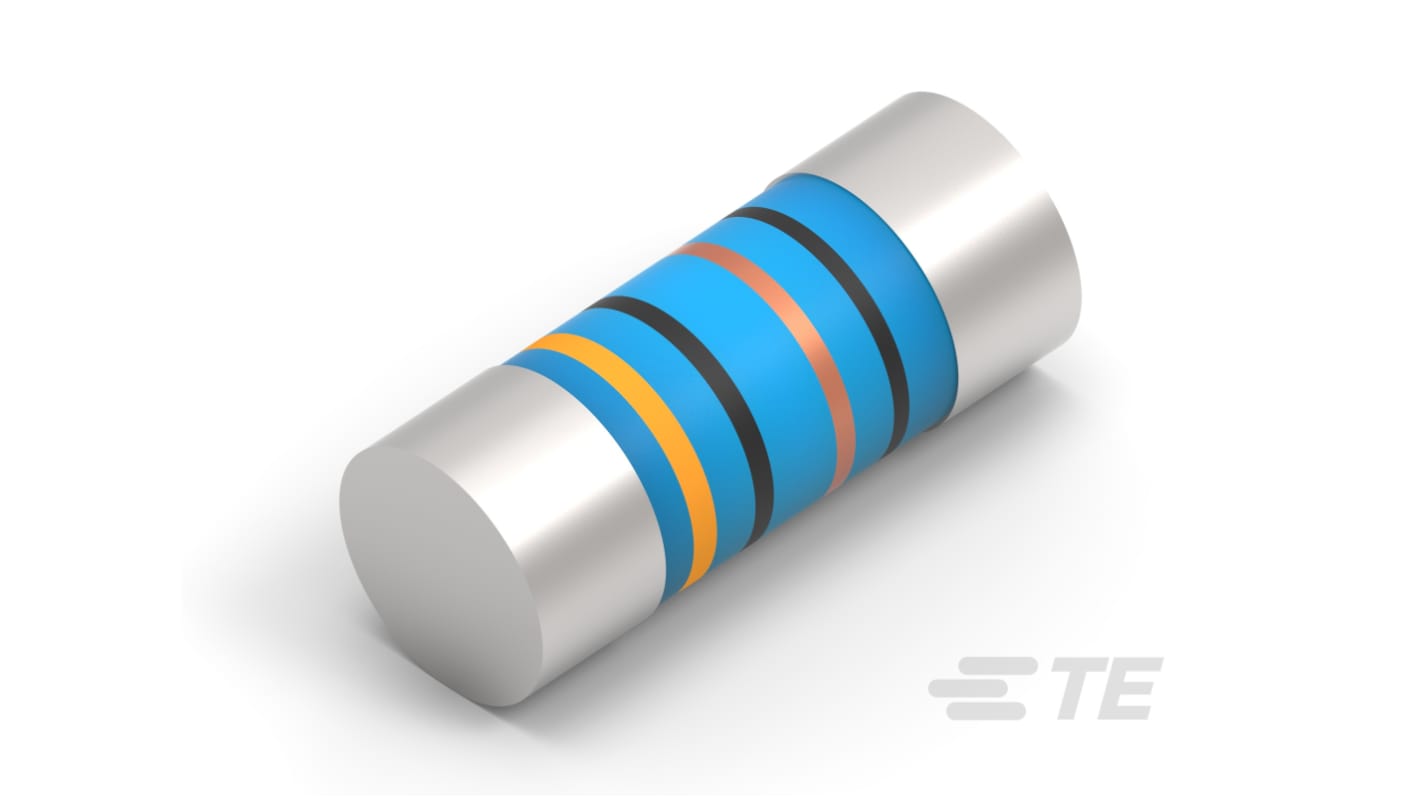

TE Connectivity Neohm SMA-A 2.2 kΩ, 0102 Thin Film Surface Mount Resistor 1 % Surface 0.3 W - 5-2176314-1
- RS Stock No.:
- 473-343
- Distrelec Article No.:
- 304-60-694
- Mfr. Part No.:
- 5-2176314-1
- Brand:
- TE Connectivity
Bulk discount available
View bulk pricing optionsSubtotal (1 reel of 3000 units)*
£240.00
(exc. VAT)
£300.00
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 - 12000 | £0.08 | £240.00 |
| 15000 + | £0.078 | £234.00 |
*price indicative
- RS Stock No.:
- 473-343
- Distrelec Article No.:
- 304-60-694
- Mfr. Part No.:
- 5-2176314-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Resistance | 2.2kΩ | |
| Product Type | Surface Mount Resistor | |
| Technology | Thin Film | |
| Resistor Type | Precision | |
| Package/Case | 0102 | |
| Packaging | Tape & Reel | |
| Tolerance | 1 % | |
| Voltage | 20V | |
| Power Rating | 0.3W | |
| Mount Type | Surface | |
| Temperature Coefficient | ±50 ppm/°C | |
| Automotive Standard | No | |
| Series | Neohm SMA-A | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 155°C | |
| Length | 2.2mm | |
| Standards/Approvals | 2016 No Restricted Materials Above Threshold, China RoHS 2 MIIT Order No 32, EU ELV 2000/53/EC, EU REACH (EC) No. 1907/2006, EU RoHS 2011/65/EU | |
| Termination Style | Melf 0102 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Resistance 2.2kΩ | ||
Product Type Surface Mount Resistor | ||
Technology Thin Film | ||
Resistor Type Precision | ||
Package/Case 0102 | ||
Packaging Tape & Reel | ||
Tolerance 1 % | ||
Voltage 20V | ||
Power Rating 0.3W | ||
Mount Type Surface | ||
Temperature Coefficient ±50 ppm/°C | ||
Automotive Standard No | ||
Series Neohm SMA-A | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 155°C | ||
Length 2.2mm | ||
Standards/Approvals 2016 No Restricted Materials Above Threshold, China RoHS 2 MIIT Order No 32, EU ELV 2000/53/EC, EU REACH (EC) No. 1907/2006, EU RoHS 2011/65/EU | ||
Termination Style Melf 0102 | ||
- COO (Country of Origin):
- TW
The TE Connectivity High-performance surface mount precision resistor, designed to meet the stringent requirements of modern electronic applications. With a thin film construction that ensures exceptional accuracy and stability, this resistor excels in precision applications where tolerances and temperature coefficients are critical. The robust design features a metal electrode leadless face (MELF) configuration and is capable of operating efficiently in adverse environments, offering reliability from -55 to 155 °C. The compact 0102 package size makes it ideal for space-constrained layouts, while the 0.3 W power rating adds to its versatility. This resistor not only complies with major safety and environmental standards but also reflects a commitment to quality that can be trusted in high-grade electronic systems.
Designed with a thin film element for enhanced precision
Compact MELF configuration that saves space on PCBs
Reliable performance in extreme temperature ranges
Complies with environmental directives like EU RoHS
Low halogen content for environmentally conscious applications
Reflow solder capability ensures compatibility with automated assembly processes
