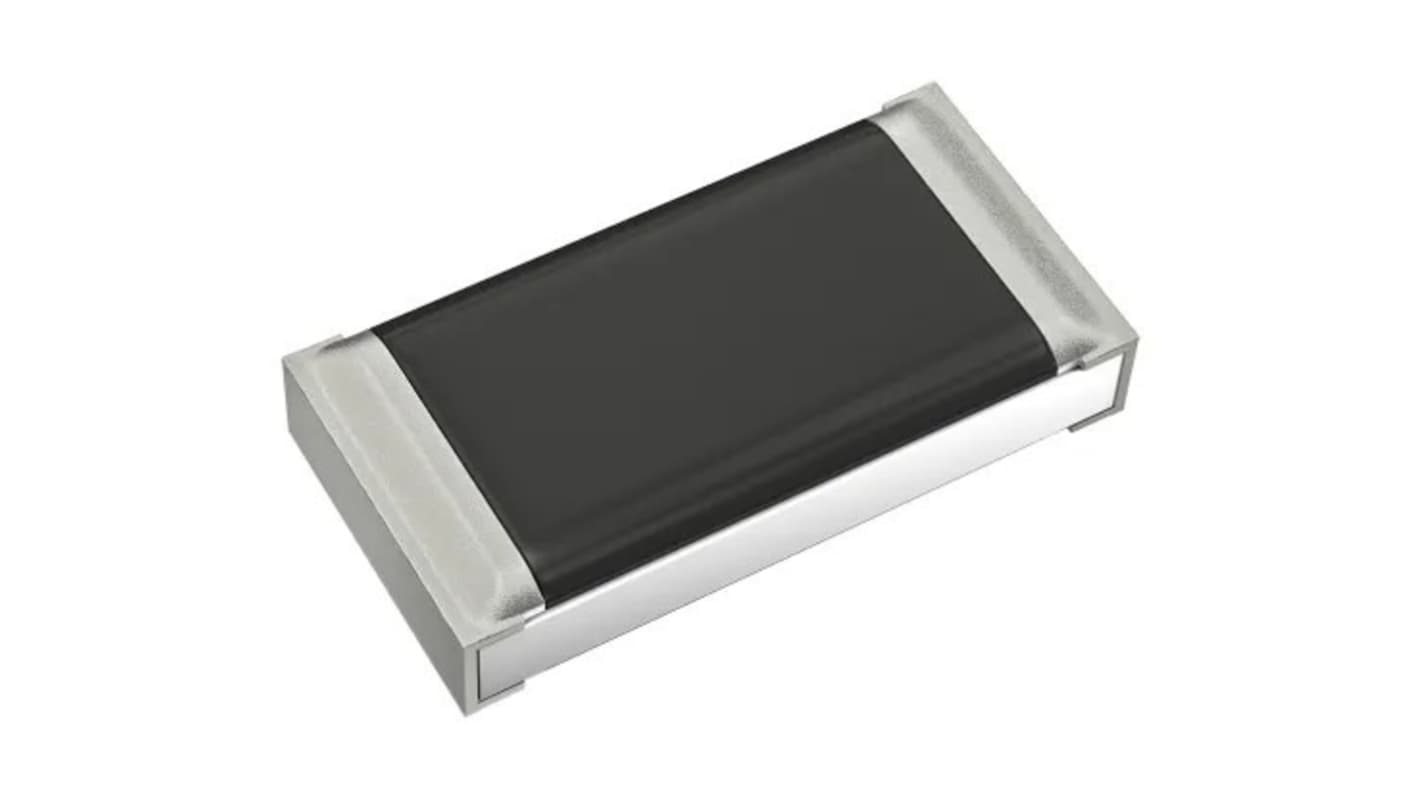

Panasonic Precision Thick Film Chip Resistors 1800 Ω, 0603 Thick Film Surface Mount Resistor ±1 % 0.1 W - ERJ3EKF1801V

RS Stock No.:: 287-616
Mfr. Part No.:: ERJ3EKF1801V
Brand:: Panasonic

Panasonic Precision Thick Film Chip Resistors 1800 Ω, 0603 Thick Film Surface Mount Resistor ±1 % 0.1 W - ERJ3EKF1801V

Subtotal (1 bag of 10 units)*

£0.08

(exc. VAT)

£0.10

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

74,220 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Bag*
10 +	£0.008	£0.08

*price indicative

RS Stock No.:: 287-616
Mfr. Part No.:: ERJ3EKF1801V
Brand:: Panasonic

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Panasonic
	Resistance	1800Ω
	Product Type	Surface Mount Resistor
	Technology	Thick Film
	Resistor Type	Current
	Package/Case	0603
	Tolerance	±1 %
	Packaging	Punched Carrier Tape
	Power Rating	0.1W
	Voltage	75V
	Temperature Coefficient	-100 ppm/°C, +100 ppm/°C
	Automotive Standard	AEC-Q200
	Series	Precision Thick Film Chip Resistors
	Minimum Operating Temperature	-55°C
	Maximum Operating Temperature	155°C
	Length	1.6mm
	Termination Style	Solder
	Width	0.8mm
	Standards/Approvals	IEC 60115-8, JEITA RC-2144, JIS C 5201-8
	Height	0.45mm

	Select all
	Brand Panasonic
	Resistance 1800Ω
	Product Type Surface Mount Resistor
	Technology Thick Film
	Resistor Type Current
	Package/Case 0603
	Tolerance ±1 %
	Packaging Punched Carrier Tape
	Power Rating 0.1W
	Voltage 75V
	Temperature Coefficient -100 ppm/°C, +100 ppm/°C
	Automotive Standard AEC-Q200
	Series Precision Thick Film Chip Resistors
	Minimum Operating Temperature -55°C
	Maximum Operating Temperature 155°C
	Length 1.6mm
	Termination Style Solder
	Width 0.8mm
	Standards/Approvals IEC 60115-8, JEITA RC-2144, JIS C 5201-8
	Height 0.45mm

Datasheet - ERJ3EKF1801V

COO (Country of Origin):: CN

Panasonic Precision Thick Film Chip Resistors Series Surface Mount Fixed Resistor, 1800Ω Resistance, 0.1W Power Rating - ERJ3EKF1801V

This surface mount fixed resistor is a high-performance component designed for precision applications. With a resistance Value of 1800Ω, it belongs to the category of thick film resistors, encapsulated in a Compact 0603 package. This resistor is engineered to withstand a wide temperature range from -55°C to +155°C, ensuring reliability in demanding environments.

Features & Benefits

• Supports surface mount technology for efficient assembly
• High tolerance of ±1% for precise resistance values
• Operates reliably in extreme temperature conditions
• Suitable for automotive applications as per AEC-Q200 standards
• Designed for high-performance circuit applications
• Utilises thick film technology for enhanced durability

Applications

• Used in automotive electronics for enhanced safety features
• Employed in industrial automation systems for reliable performance
• Ideal for precision measurement devices requiring EXACT specifications
• Utilised in low tolerance resistor in electrical circuits

How does the temperature rating of this component impact its performance?

The wide temperature range from -55°C to +155°C ensures the resistor maintains its performance under various environmental conditions, making it suitable for both indoor and outdoor applications.

What types of circuits are most compatible with this resistor?

It is particularly effective in high-precision circuits where EXACT resistance values are critical, such as in sensor applications or control systems.

How does the thick film technology enhance durability compared to other types?

Thick film technology provides robust thermal and mechanical stability, making the resistor resistant to wear and ensuring long-term reliability in challenging scenarios.

What benefits does the AEC-Q200 certification offer for automotive applications?

The AEC-Q200 certification indicates that the component meets stringent automotive quality standards, ensuring reliability and safety in critical automotive systems.
