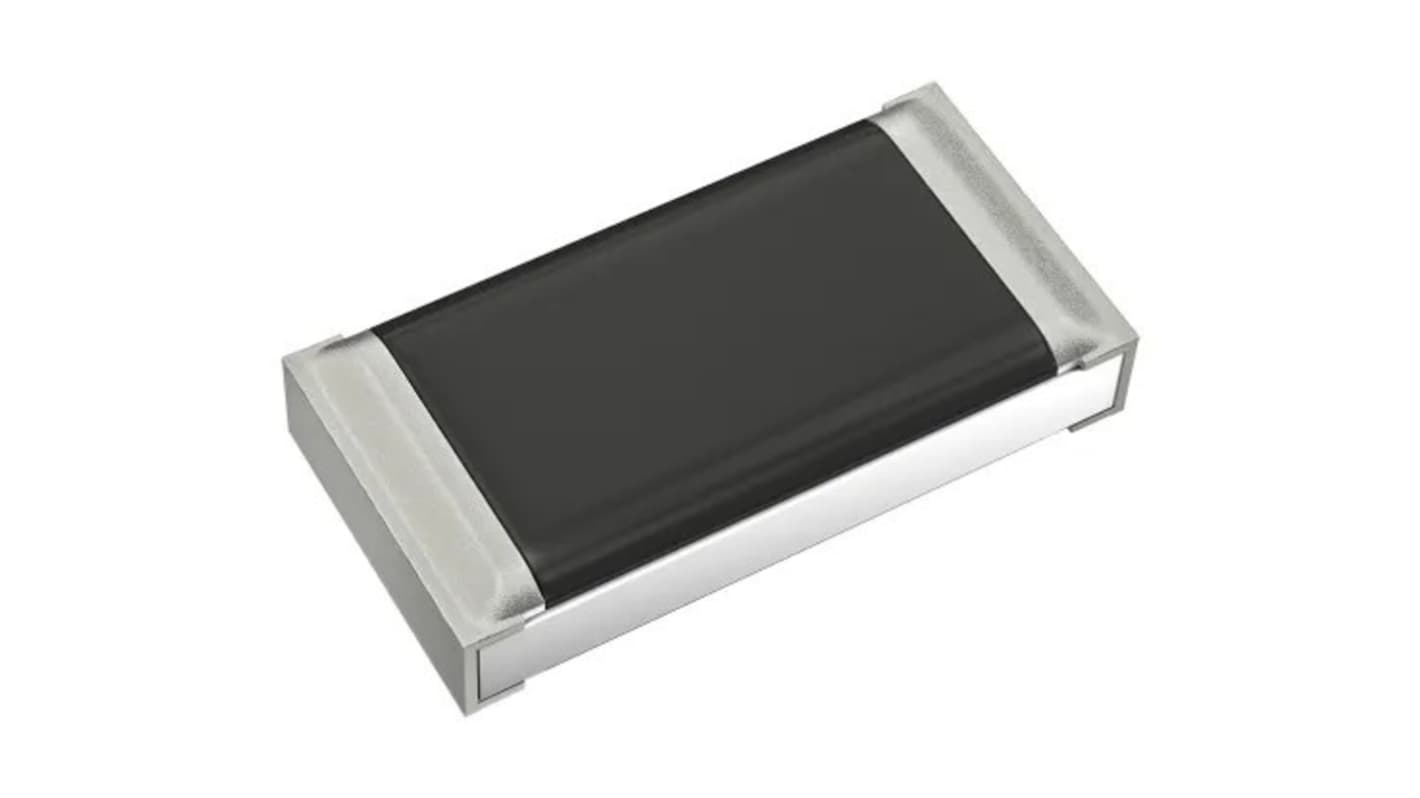

Panasonic Precision Thick Film Chip Resistors 33000 Ω, 0402 Thick Film Surface Mount Fixed Resistor ±1 % Surface 0.1 W -

RS Stock No.:: 287-607
Mfr. Part No.:: ERJ2RKF3302X
Brand:: Panasonic

Panasonic Precision Thick Film Chip Resistors 33000 Ω, 0402 Thick Film Surface Mount Fixed Resistor ±1 % Surface 0.1 W -

Subtotal (1 bag of 10 units)*

£0.13

(exc. VAT)

£0.16

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

149,520 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Bag*
10 +	£0.013	£0.13

*price indicative

RS Stock No.:: 287-607
Mfr. Part No.:: ERJ2RKF3302X
Brand:: Panasonic

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Panasonic
	Resistance	33000Ω
	Product Type	Surface Mount Fixed Resistor
	Technology	Thick Film
	Resistor Type	Thick Film
	Package/Case	0402
	Packaging	Tape & Reel
	Tolerance	±1 %
	Power Rating	0.1W
	Voltage	50V
	Mount Type	Surface
	Temperature Coefficient	100 ppm/°C
	Automotive Standard	AEC-Q200
	Pin Count	2
	Series	Precision Thick Film Chip Resistors
	Minimum Operating Temperature	-55°C
	Maximum Operating Temperature	155°C
	Height	0.40mm
	Length	1mm
	Standards/Approvals	IEC 60115-8, JEITA RC-2134C, JIS C 5201-8
	Width	0.50mm

	Select all
	Brand Panasonic
	Resistance 33000Ω
	Product Type Surface Mount Fixed Resistor
	Technology Thick Film
	Resistor Type Thick Film
	Package/Case 0402
	Packaging Tape & Reel
	Tolerance ±1 %
	Power Rating 0.1W
	Voltage 50V
	Mount Type Surface
	Temperature Coefficient 100 ppm/°C
	Automotive Standard AEC-Q200
	Pin Count 2
	Series Precision Thick Film Chip Resistors
	Minimum Operating Temperature -55°C
	Maximum Operating Temperature 155°C
	Height 0.40mm
	Length 1mm
	Standards/Approvals IEC 60115-8, JEITA RC-2134C, JIS C 5201-8
	Width 0.50mm

COO (Country of Origin):: CN

Panasonic Precision Thick Film Chip Resistors Series Surface Mount Fixed Resistor, 33000Ω Resistance, ±1% Tolerance - ERJ2RKF3302X

This surface mount fixed resistor is designed for precision applications requiring a resistance Value of 33k Ohm. Encased in a Compact 0402 (1005M) package, this resistor employs thick film technology to ensure stable performance. It operates within a wide temperature range from -55°C to +155°C, making it suitable for diverse environmental conditions. With a power rating of 0.1W, this component meets the Automotive Electronics Council standard AEC-Q200, ensuring reliability in automotive and industrial applications.

Features & Benefits

• Designed for high reliability in precision applications
• Tolerance of ±1% ensures consistent performance
• Suitable for high-temperature environments for versatile use
• Compact 0402 package optimises space on PCBs
• Meets AEC-Q200 for automotive-grade applications
• Utilises thick film technology for enhanced stability and accuracy

Applications

• Utilised in automotive electronic circuits for stable performance
• Employed in industrial automation for precise control systems
• Incorporated in telecommunications equipment for reliable signal processing
• Used in consumer electronics for efficient power management
• Ideal for portable devices requiring space-saving components

What temperature range can the component effectively operate within?

The component can function reliably within a temperature range of -55°C to +155°C, making it suitable for challenging environmental conditions.

How does the tolerance specification affect overall circuit design?

The ±1% tolerance provides assurance that the resistance Value will remain close to stated specifications, which is essential for maintaining circuit reliability and performance.

What type of technology is used in this resistor for performance consistency?

This resistor utilises thick film technology, which contributes to its stability and accuracy over varying operational conditions.

In which scenarios would it be beneficial to use this specific resistor type?

This specific resistor is particularly beneficial in automotive and industrial applications, where precision and reliability are critical to the circuit's overall function.

How do the Compact dimensions benefit component layout in designs?

The Compact 0402 package allows for efficient use of space on printed circuit boards (PCBs), facilitating more complex designs without compromising performance.
