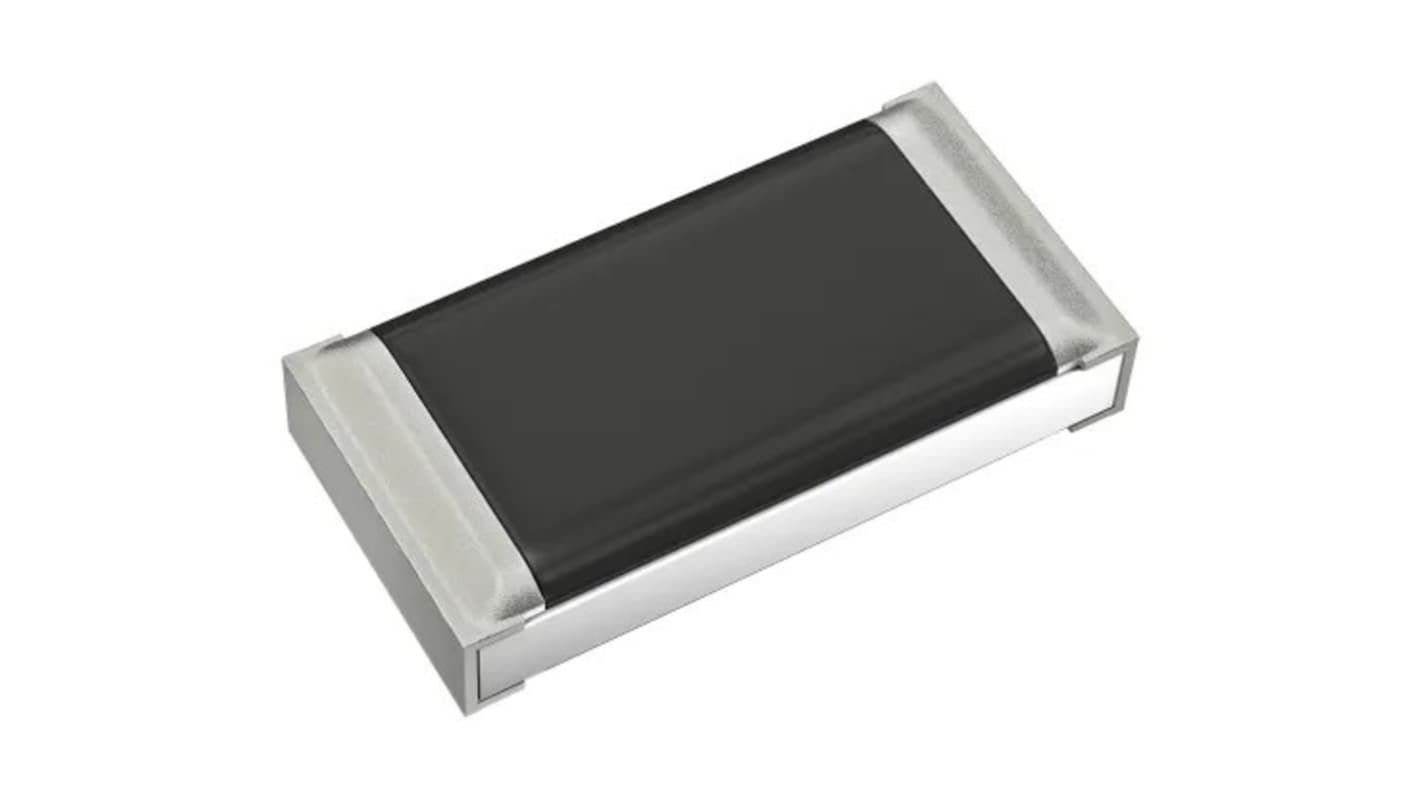

Panasonic ERJ 316 kΩ, 0402 Thick Film Surface Mount Fixed Resistor ±1 % Surface 0.1 W - ERJ2RKF3163X

RS Stock No.:: 287-435
Mfr. Part No.:: ERJ2RKF3163X
Brand:: Panasonic

Panasonic ERJ 316 kΩ, 0402 Thick Film Surface Mount Fixed Resistor ±1 % Surface 0.1 W - ERJ2RKF3163X

Subtotal (1 bag of 10 units)*

£0.13

(exc. VAT)

£0.16

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

19,860 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Bag*
10 +	£0.013	£0.13

*price indicative

RS Stock No.:: 287-435
Mfr. Part No.:: ERJ2RKF3163X
Brand:: Panasonic

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Panasonic
	Resistance	316kΩ
	Product Type	Surface Mount Fixed Resistor
	Resistor Type	Thick Film
	Technology	Thick Film
	Package/Case	0402
	Tolerance	±1 %
	Power Rating	0.1W
	Voltage	25, 500V
	Mount Type	Surface
	Temperature Coefficient	± 100 ppm/°C
	Automotive Standard	AEC-Q200
	Minimum Operating Temperature	-55°C
	Pin Count	2
	Series	ERJ
	Maximum Operating Temperature	155°C
	Width	0.50mm
	Standards/Approvals	IEC 60115-8, JEITA RC-2134C, JIS C 5201-8
	Length	1mm
	Height	0.40mm

	Select all
	Brand Panasonic
	Resistance 316kΩ
	Product Type Surface Mount Fixed Resistor
	Resistor Type Thick Film
	Technology Thick Film
	Package/Case 0402
	Tolerance ±1 %
	Power Rating 0.1W
	Voltage 25, 500V
	Mount Type Surface
	Temperature Coefficient ± 100 ppm/°C
	Automotive Standard AEC-Q200
	Minimum Operating Temperature -55°C
	Pin Count 2
	Series ERJ
	Maximum Operating Temperature 155°C
	Width 0.50mm
	Standards/Approvals IEC 60115-8, JEITA RC-2134C, JIS C 5201-8
	Length 1mm
	Height 0.40mm

Datasheet - ERJ2RKF3163X

COO (Country of Origin):: CN

Panasonic ERJ Series Surface Mount Fixed Resistor, 316kΩ Resistance, 0402 Package/Case - ERJ2RKF3163X

This surface mount fixed resistor is designed to deliver reliable performance in various electronic applications. With a resistance Value of 316kΩ and a Compact 0402 (1005M) package size, this component is suitable for precision tasks in automation, electronics, and electrical industries. The device employs thick film technology, ensuring a robust performance across diverse conditions.

Features & Benefits

• Thick film technology provides excellent durability and stability
• Tolerance of ±1% ensures reliable and accurate resistance values
• Power rating of 0.1W supports consistent operation in applications
• Operating temperature range from -55°C to +155°C accommodates extreme conditions
• AEC-Q200 compliant, making it suitable for automotive applications
• Compact 0402 size facilitates easy integration into circuit designs

Applications

• Used for signal processing in consumer electronics
• Ideal for voltage division in automotive control systems
• Suitable for biasing in high-frequency
• Commonly used within Compact PCB layouts in medical devices

How does the resistance Value impact circuit design?

The resistance Value of 316kΩ is Crucial for controlling current flow within circuits, helping to prevent component damage and ensure circuit functionality.

What is the significance of the temperature coefficient?

With a temperature coefficient of ±100ppm/°C, variations in resistance due to temperature changes are minimal, aiding in maintaining performance stability over a range of temperatures.

In which situations would the automotive standard be essential?

The AEC-Q200 compliance ensures that it meets stringent quality and reliability standards in automotive applications, safeguarding against failures in critical systems.

What potential benefits does the Compact 0402 size offer?

The small form factor of the 0402 size allows for space-saving designs, making it Ideal for modern electronics that require efficient use of PCB real estate without compromising performance.
