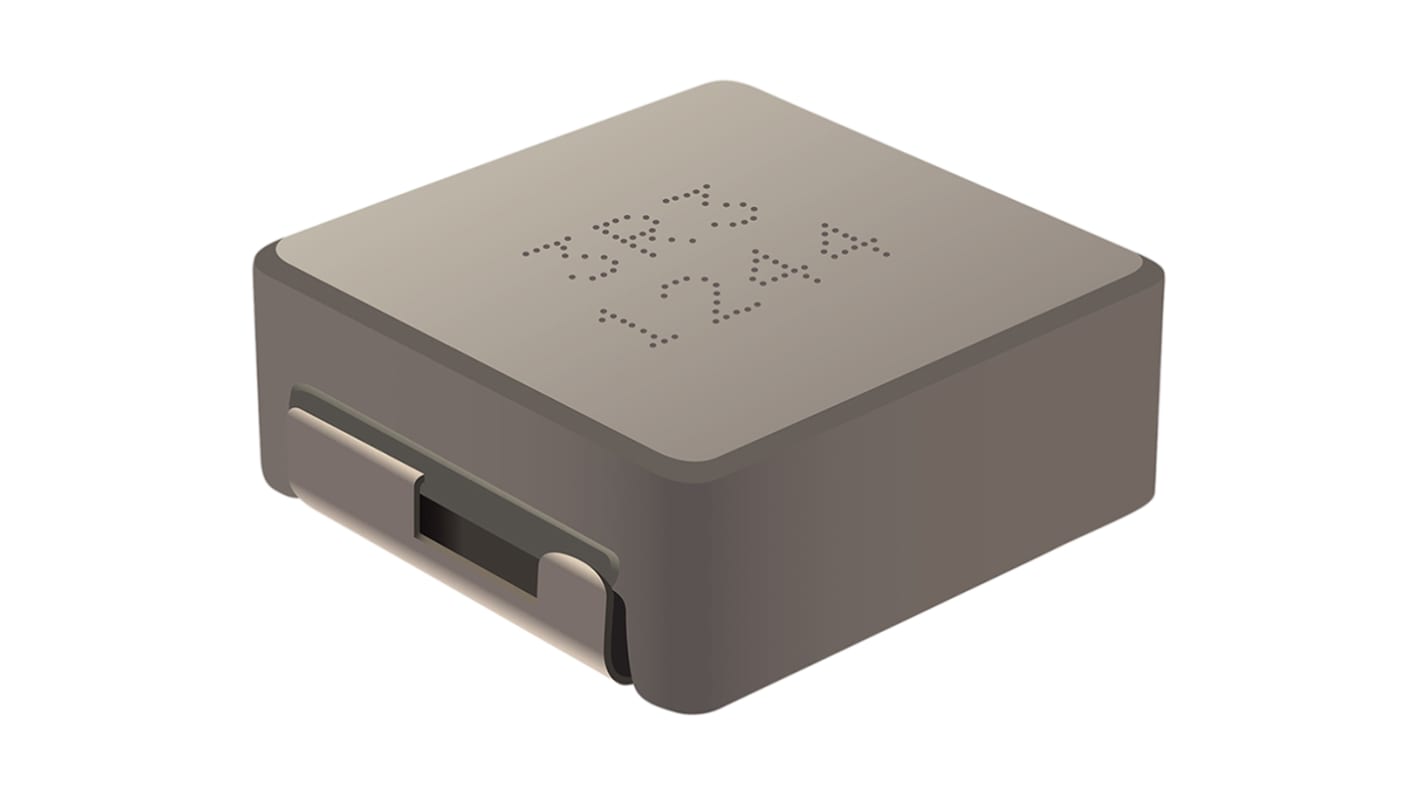

Bourns, SRP1770TA, 1770 Shielded Wirewound Surface Mount Inductor with a Carbonyl Powder Core, 22 μH ±20 % 12 A Idc Q:20

View all Surface Mount Inductors
Bulk discount available

Subtotal (1 unit)*

£2.93

(exc. VAT)

£3.52

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 200 unit(s) shipping from 10 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 49£2.93
50 - 99£2.16
100 - 199£1.76
200 - 499£1.65
500 +£1.57

*price indicative

Packaging Options:
RS Stock No.:
905-4766
Distrelec Article No.:
301-44-112
Mfr. Part No.:
SRP1770TA-220M
Brand:
Bourns
Find similar products by selecting one or more attributes.
Select all

Brand

Bourns

Product Type

Wirewound Surface Mount Inductor

Inductance

22μH

Maximum DC Current

12A

Package/Case

1770

Length

17.3mm

Packaging

Reel

Automotive Standard

AEC-Q200

Shielding

Yes

Maximum DC Resistance

26.5mΩ

Minimum Operating Temperature

-40°C

Pin Count

2

Inductance Tolerance

±20 %

Maximum Operating Temperature

150°C

Series

SRP1770TA

Core Material

Carbonyl Powder

Termination Style

Solder

Standards/Approvals

RoHS

Height

16.9mm

Depth

6.7mm

Maximum Self Resonant Frequency

5MHz

Minimum Quality Factor

20

Inductor Construction

Wirewound

Moulded

Yes

SRP1770TA Series Shielded Power Inductors (AEC-Q200 Qualified)


Bourns SRP1770TA SMD power inductors are constructed from a carbonyl powder core that features a high saturation current. The shielded construction of these power inductors ensures a low level of magnetic radiation. Inductance range offered is 1μH to 100μH.

These SMD power inductors are AEC-Q200 and suitable for automotive systems such as driver assistant device, lighting and information/entertainment systems. Other suitable applications include power supplies and DC/DC converters.

Features and Benefits:

Carbonyl powder core, enamelled copper wire

High saturation current

Operating temperature range from -40°C to 150°C
