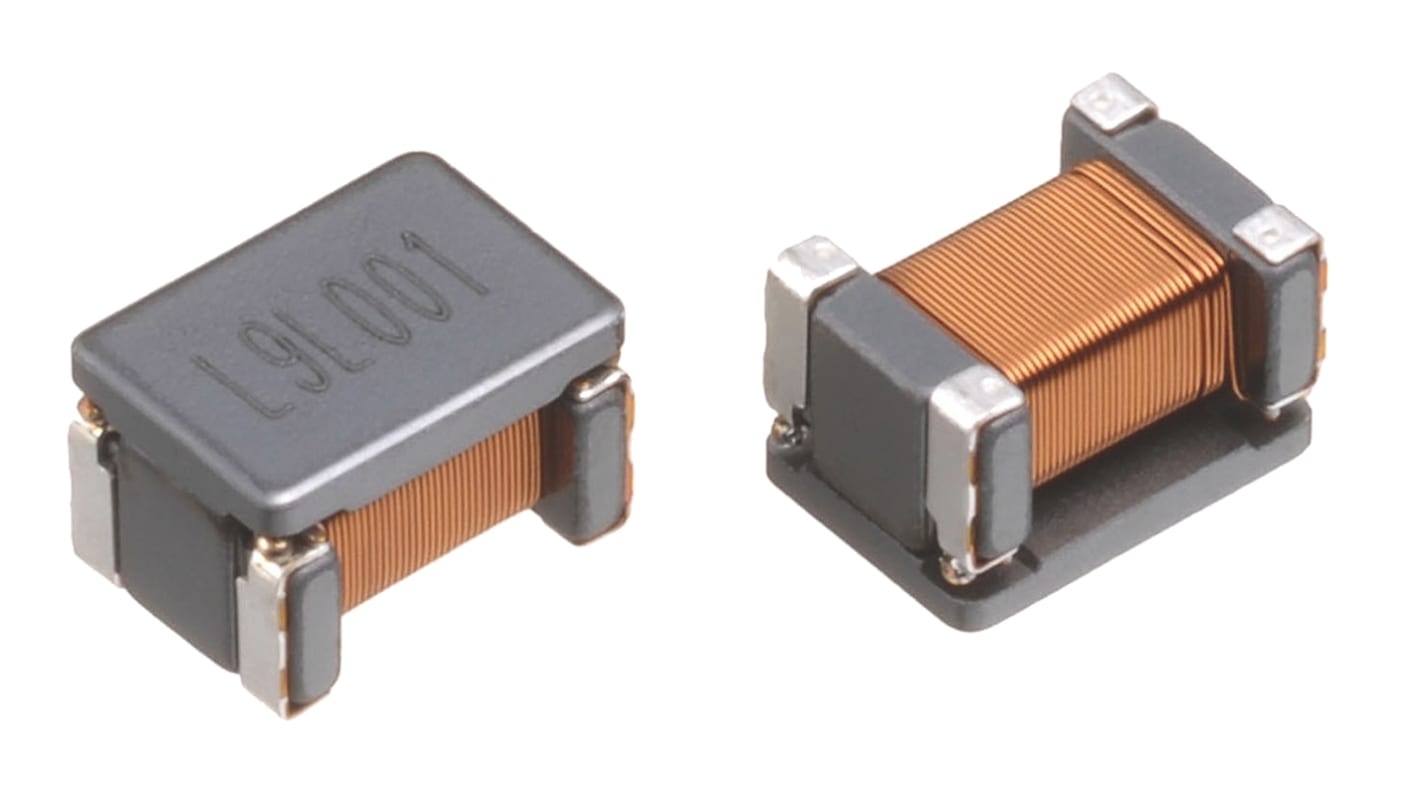

TDK, ACT, 1812 Shielded Wirewound Surface Mount Inductor 100 μH -30 to 50 % 200 mA Idc
- RS Stock No.:
- 831-9286
- Mfr. Part No.:
- ACT45R-101-2P-TL001
- Brand:
- TDK
Bulk discount available
Subtotal (1 unit)*
£1.57
(exc. VAT)
£1.88
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 1,250 unit(s) shipping from 20 April 2026
- Plus 1,468 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 49 | £1.57 |
| 50 - 99 | £1.18 |
| 100 - 199 | £1.07 |
| 200 - 499 | £1.03 |
| 500 + | £0.93 |
*price indicative
- RS Stock No.:
- 831-9286
- Mfr. Part No.:
- ACT45R-101-2P-TL001
- Brand:
- TDK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK | |
| Product Type | Wirewound Surface Mount Inductor | |
| Inductance | 100μH | |
| Maximum DC Current | 200mA | |
| Package/Case | 1812 | |
| Length | 4.5mm | |
| Automotive Standard | No | |
| Shielding | Yes | |
| Minimum Operating Temperature | -40°C | |
| Maximum DC Resistance | 1500mΩ | |
| Maximum Operating Temperature | 105°C | |
| Series | ACT | |
| Inductance Tolerance | -30 to 50 % | |
| Standards/Approvals | RoHS | |
| Height | 2.8mm | |
| Depth | 3.2mm | |
| Termination Style | Surface Mount | |
| Inductor Construction | Wirewound | |
| Select all | ||
|---|---|---|
Brand TDK | ||
Product Type Wirewound Surface Mount Inductor | ||
Inductance 100μH | ||
Maximum DC Current 200mA | ||
Package/Case 1812 | ||
Length 4.5mm | ||
Automotive Standard No | ||
Shielding Yes | ||
Minimum Operating Temperature -40°C | ||
Maximum DC Resistance 1500mΩ | ||
Maximum Operating Temperature 105°C | ||
Series ACT | ||
Inductance Tolerance -30 to 50 % | ||
Standards/Approvals RoHS | ||
Height 2.8mm | ||
Depth 3.2mm | ||
Termination Style Surface Mount | ||
Inductor Construction Wirewound | ||
TDK ACT Series SMD Common Mode Chokes
ACT Series is compatible with an operating temperature range of –40 to +150°C, so it can be used for vehicle devices requiring compatibility with high temperatures. (ACT45B, ACT45R)
ACT45R for FlexRay, is a product that can achieve DCR < 2Ω @ 125 °C. C by reducing the DC resistance while maintaining a high L-value of 100μH.
ACT45L for Ethernet, which uses our unique technology, is a product that can realize higher-level Scd21 mode conversion characteristics while maintaining a high L-value of 200μH
TDK SMD Common Mode Chokes
