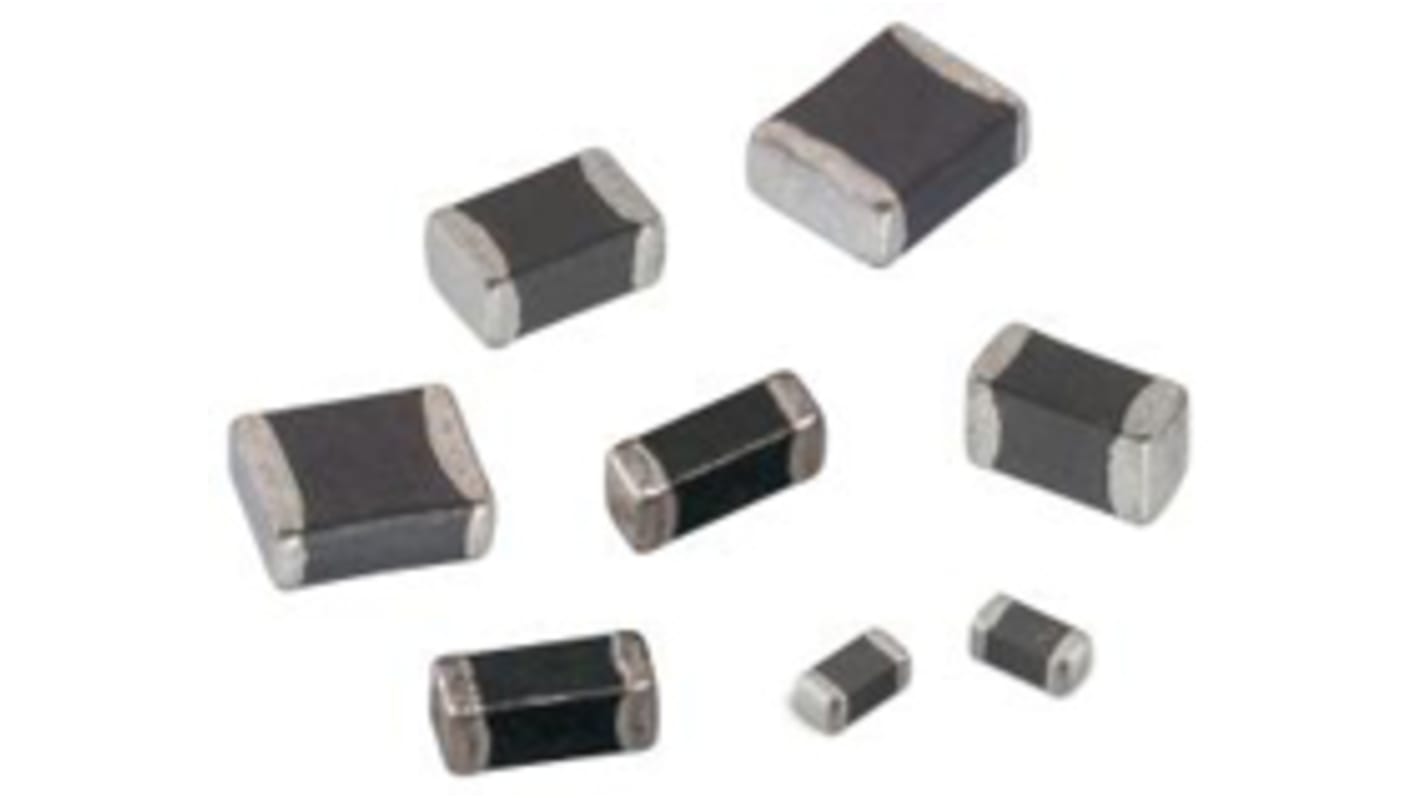

Wurth Elektronik, WE-PMI, 0603 Unshielded Multilayer Surface Mount Inductor with a Ferrite Core, 220 nH Multilayer ±20 %

View all Surface Mount Inductors
Bulk discount available

Subtotal (1 bag of 5 units)*

£2.12

(exc. VAT)

£2.545

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 15 unit(s) ready to ship
  • Plus 50 unit(s) shipping from 08 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Bag*
5 - 20£0.424£2.12
25 - 45£0.40£2.00
50 - 95£0.376£1.88
100 - 245£0.346£1.73
250 +£0.318£1.59

*price indicative

Packaging Options:
Development Kit Box with a flash stating "Win"
Win A Würth Elektronik Lighting Development Kit
Spend as little as £1 and win a Würth Elektronik Lighting Kit, complete with exclusive follow-up technical support from the experts themselves. Promotion ends 30th November 2025.
Claim my Lighting Kit
RS Stock No.:
823-5380
Distrelec Article No.:
304-36-761
Mfr. Part No.:
74479762122
Brand:
Wurth Elektronik
Find similar products by selecting one or more attributes.
Select all

Brand

Wurth Elektronik

Product Type

Multilayer Surface Mount Inductor

Inductance

220 nH

Maximum DC Current

1.3A

Package/Case

0603

Length

1.6mm

Packaging

Tape & Reel

Automotive Standard

No

Shielding

No

Maximum DC Resistance

120mΩ

Pin Count

2

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

125°C

Inductance Tolerance

±20 %

Series

WE-PMI

Termination Style

Surface Mount

Standards/Approvals

REACH, RoHS

Core Material

Ferrite

Height

0.5mm

Depth

0.8mm

Maximum Self Resonant Frequency

250MHz

Minimum Quality Factor

7

Inductor Construction

Multilayer

Moulded

Yes

COO (Country of Origin):
CN

Wurth 0603 WE-PMI Series Power Multilayer Inductors


0603 WE-PMI series power multilayer inductors with a magnetically shielded construction to cut out cross talk. These WE-PMI power multilayer inductors are suitable for applications with high currents of up to 1.8A, have DCR values below 0.2Ω and an operating temperature range of -40 to + 125°C. Typical applications for these 0603 WE-PMI power multilayer inductors include DC/DC converters especially at high switching frequences >1MHz and portable devides eg PDA and digital cameras.

Stock numbers 823-5392 and 823-5380 are low profile versions.

Compact multilayer surface Mount Chip Bead Chokes, magnetically shielded to cut out cross talk.

Suitable for use in high current application of up to 2.5A

DCR values below 0.2Ω

Operating temperature range: -40°C to +125°C

Recommended for reflow soldering

Applications include: DC/DC converters particularity at high switching frequencies; Portable devices, e.g. PDA and digital cameras
