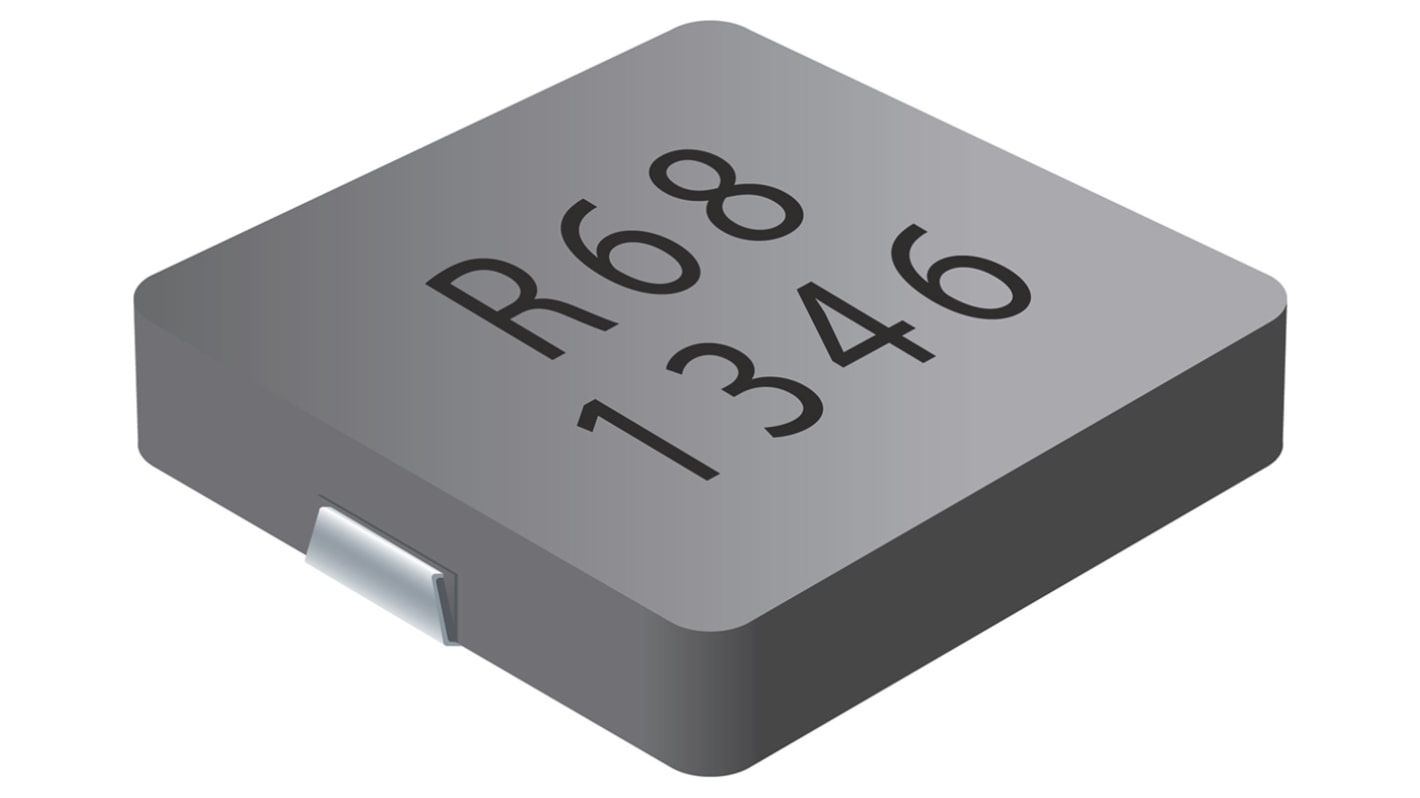

Bourns, SRP1238A, 1238 Shielded Surface Mount Inductor with a Carbonyl Powder Core, 680 nH 28 A Idc Q:15
- RS Stock No.:
- 819-3422
- Mfr. Part No.:
- SRP1238A-R68M
- Brand:
- Bourns
Bulk discount available
View bulk pricing optionsSubtotal (1 bag of 5 units)*
£4.45
(exc. VAT)
£5.35
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 09 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 5 - 20 | £0.89 | £4.45 |
| 25 - 45 | £0.838 | £4.19 |
| 50 - 95 | £0.792 | £3.96 |
| 100 - 245 | £0.722 | £3.61 |
| 250 + | £0.658 | £3.29 |
*price indicative
- RS Stock No.:
- 819-3422
- Mfr. Part No.:
- SRP1238A-R68M
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Product Type | Surface Mount Inductor | |
| Inductance | 680nH | |
| Maximum DC Current | 28A | |
| Package/Case | 1238 | |
| Length | 13.5mm | |
| Automotive Standard | AEC-Q200 | |
| Shielding | Yes | |
| Minimum Operating Temperature | -40°C | |
| Maximum DC Resistance | 2.5mΩ | |
| Maximum Operating Temperature | 150°C | |
| Series | SRP1238A | |
| Core Material | Carbonyl Powder | |
| Depth | 12.5mm | |
| Height | 3.3mm | |
| Maximum Self Resonant Frequency | 50MHz | |
| Moulded | Yes | |
| Minimum Quality Factor | 15 | |
| Inductor Construction | Wirewound | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Product Type Surface Mount Inductor | ||
Inductance 680nH | ||
Maximum DC Current 28A | ||
Package/Case 1238 | ||
Length 13.5mm | ||
Automotive Standard AEC-Q200 | ||
Shielding Yes | ||
Minimum Operating Temperature -40°C | ||
Maximum DC Resistance 2.5mΩ | ||
Maximum Operating Temperature 150°C | ||
Series SRP1238A | ||
Core Material Carbonyl Powder | ||
Depth 12.5mm | ||
Height 3.3mm | ||
Maximum Self Resonant Frequency 50MHz | ||
Moulded Yes | ||
Minimum Quality Factor 15 | ||
Inductor Construction Wirewound | ||
- COO (Country of Origin):
- TW
SRP1238A Series Magnetically Shielded Power Inductors
Bourns SRP series of high current power inductors with a carbonyl powder core and are AEC-Q200 qualified.
Features and Benefits:
SRP1238A Series inductors have a shielded construction
Carbonyl powder core
High saturation current
Inductance ranges from 0.10 μH to 10 μH
AEC-Q200 qualified
RoHS compliant and halogen free
Applications include Automotive systems (Driver assistant, Information, Entertainment and Lighting), DC-DC converters and power supplies
