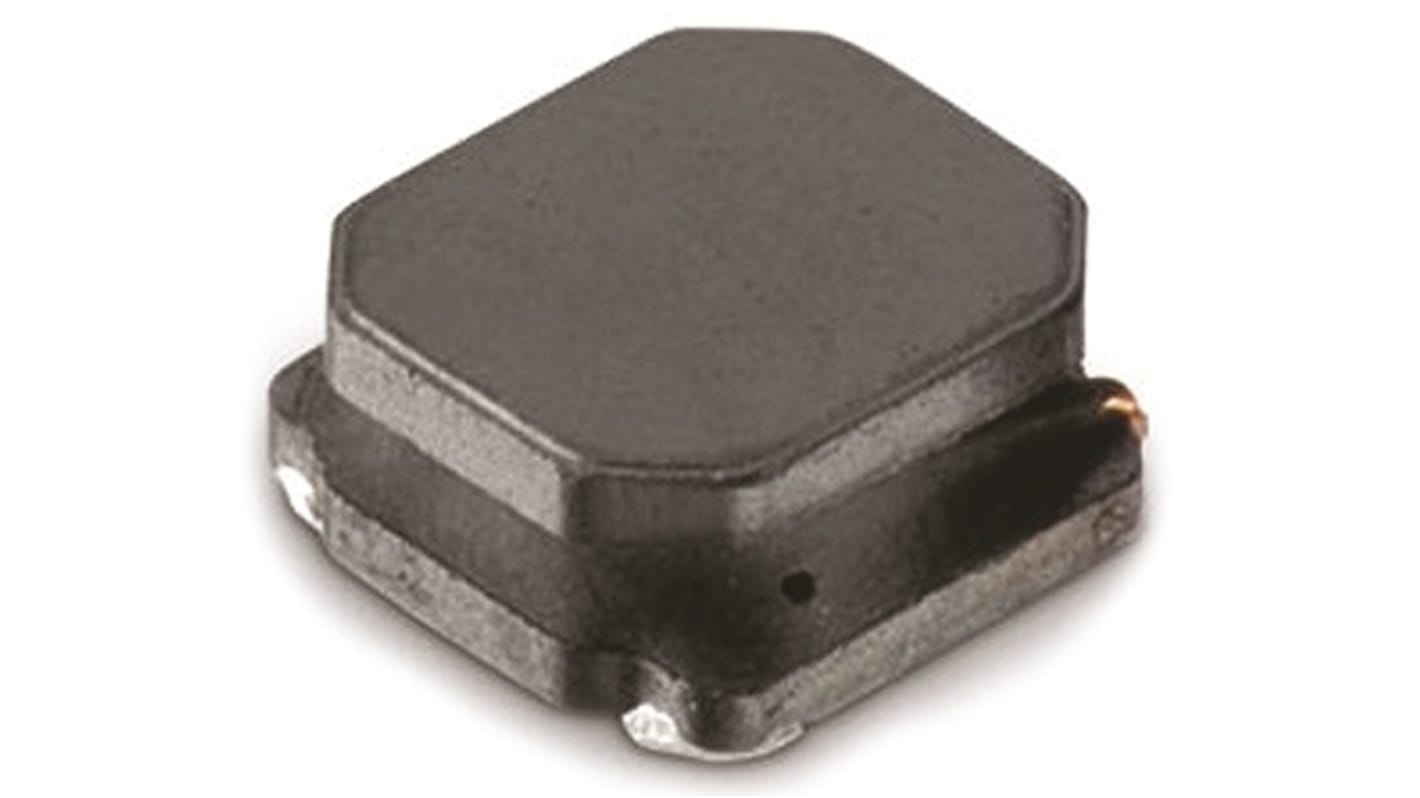

Wurth Elektronik, WE-LQS, 2512 Shielded Wirewound Surface Mount Inductor 1 μH Semi Shielded ±20 % 2.2 A Idc
- RS Stock No.:
- 814-2424
- Distrelec Article No.:
- 304-46-116
- Mfr. Part No.:
- 74404024010
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal (1 bag of 5 units)*
£4.24
(exc. VAT)
£5.09
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 45 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 5 - 45 | £0.848 | £4.24 |
| 50 - 95 | £0.72 | £3.60 |
| 100 - 245 | £0.636 | £3.18 |
| 250 - 495 | £0.552 | £2.76 |
| 500 + | £0.512 | £2.56 |
*price indicative
- RS Stock No.:
- 814-2424
- Distrelec Article No.:
- 304-46-116
- Mfr. Part No.:
- 74404024010
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Product Type | Wirewound Surface Mount Inductor | |
| Inductance | 1μH | |
| Maximum DC Current | 2.2A | |
| Package/Case | 2512 | |
| Length | 2.5mm | |
| Packaging | Tape & Reel | |
| Automotive Standard | AEC-Q200 | |
| Shielding | Yes | |
| Maximum DC Resistance | 37mΩ | |
| Minimum Operating Temperature | -40°C | |
| Series | WE-LQS | |
| Maximum Operating Temperature | 125°C | |
| Inductance Tolerance | ±20 % | |
| Depth | 2mm | |
| Termination Style | Surface Mount | |
| Height | 1.2mm | |
| Standards/Approvals | RoHS | |
| Maximum Self Resonant Frequency | 85MHz | |
| Inductor Construction | Semi Shielded | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Product Type Wirewound Surface Mount Inductor | ||
Inductance 1μH | ||
Maximum DC Current 2.2A | ||
Package/Case 2512 | ||
Length 2.5mm | ||
Packaging Tape & Reel | ||
Automotive Standard AEC-Q200 | ||
Shielding Yes | ||
Maximum DC Resistance 37mΩ | ||
Minimum Operating Temperature -40°C | ||
Series WE-LQS | ||
Maximum Operating Temperature 125°C | ||
Inductance Tolerance ±20 % | ||
Depth 2mm | ||
Termination Style Surface Mount | ||
Height 1.2mm | ||
Standards/Approvals RoHS | ||
Maximum Self Resonant Frequency 85MHz | ||
Inductor Construction Semi Shielded | ||
- COO (Country of Origin):
- CN
WE-LQS Series Magnetically Shielded Power Inductors
Wurth Elektronic LQ-S power inductors feature a robust, compact design and can manage 1.7 times more current than the unshielded equivalent. They act as integrated DC/DC converters and the larger sizes can be used in shock resisting circuits. Suitable uses for these power inductors include switching controllers that require high efficiency and portable power applications including PDAs, smartphones, digital cameras and TVs.
Applications
Magnetically shielded
Low RDC
