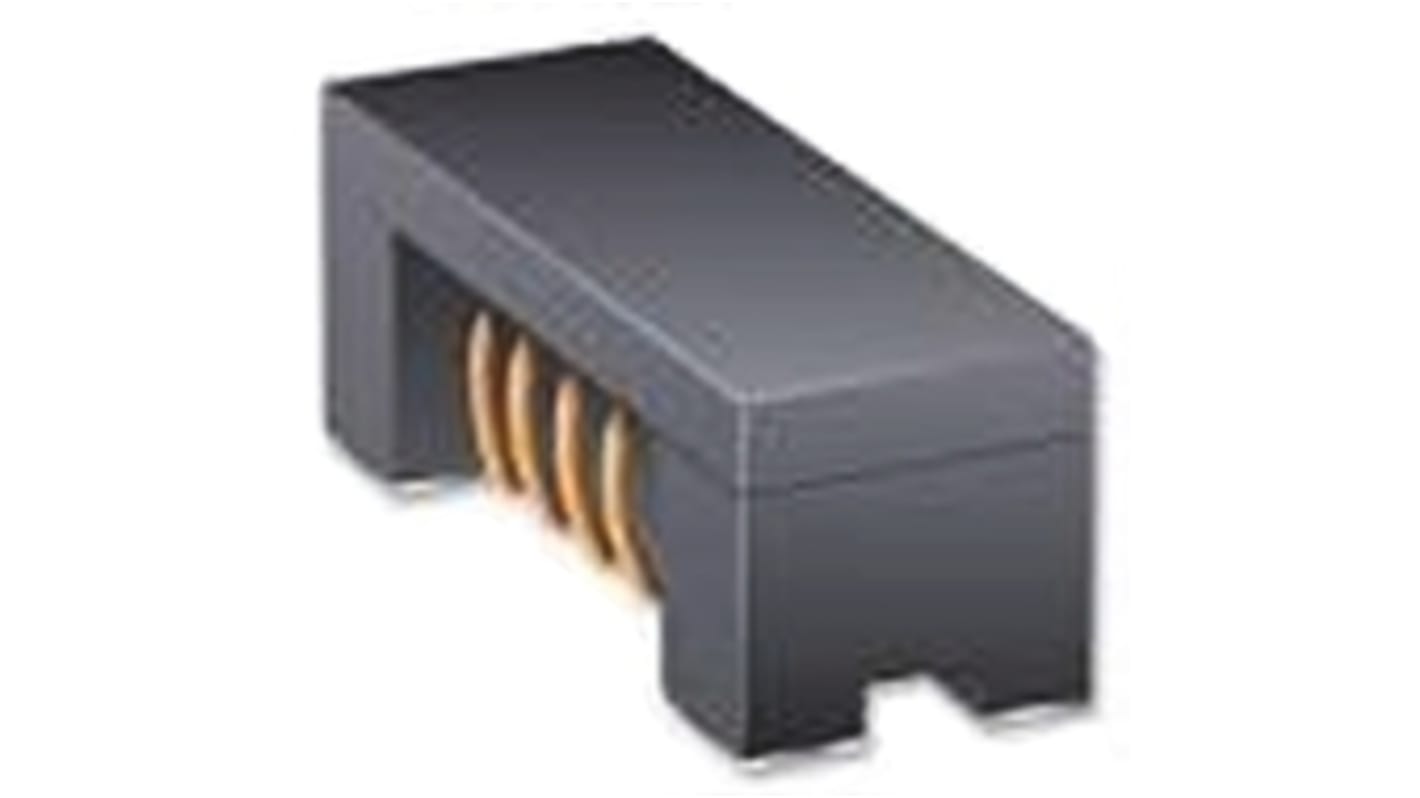

Bourns, SRF3216, 3216 SMD Common Mode Line Filter with a Ferrite Core, 600 μH ±25% Wire-Wound 300mA Idc
- RS Stock No.:
- 811-8774
- Mfr. Part No.:
- SRF3216-601Y
- Brand:
- Bourns
Subtotal (1 bag of 5 units)*
£1.83
(exc. VAT)
£2.195
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 10 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 5 + | £0.366 | £1.83 |
*price indicative
- RS Stock No.:
- 811-8774
- Mfr. Part No.:
- SRF3216-601Y
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Inductance | 600 μH | |
| Maximum DC Current | 300mA | |
| Package/Case | 3216 | |
| Length | 3.2mm | |
| Depth | 1.6mm | |
| Height | 2mm | |
| Dimensions | 3.2 x 1.6 x 2mm | |
| Tolerance | ±25% | |
| Maximum DC Resistance | 800mΩ | |
| Series | SRF3216 | |
| Core Material | Ferrite | |
| Maximum Operating Temperature | +125°C | |
| Minimum Operating Temperature | -55°C | |
| Inductor Construction | Wire-Wound | |
Select all | ||
|---|---|---|
Brand Bourns | ||
Inductance 600 μH | ||
Maximum DC Current 300mA | ||
Package/Case 3216 | ||
Length 3.2mm | ||
Depth 1.6mm | ||
Height 2mm | ||
Dimensions 3.2 x 1.6 x 2mm | ||
Tolerance ±25% | ||
Maximum DC Resistance 800mΩ | ||
Series SRF3216 | ||
Core Material Ferrite | ||
Maximum Operating Temperature +125°C | ||
Minimum Operating Temperature -55°C | ||
Inductor Construction Wire-Wound | ||
SRF3216 Series Wire Wound Chokes
SRF3216 Series Wire Wound Chokes with a High impedance value and a current rating of up to 400mA. Applications for the SRF3216 series include noise suppression, personal computers and display panels.
RoHS compliant
