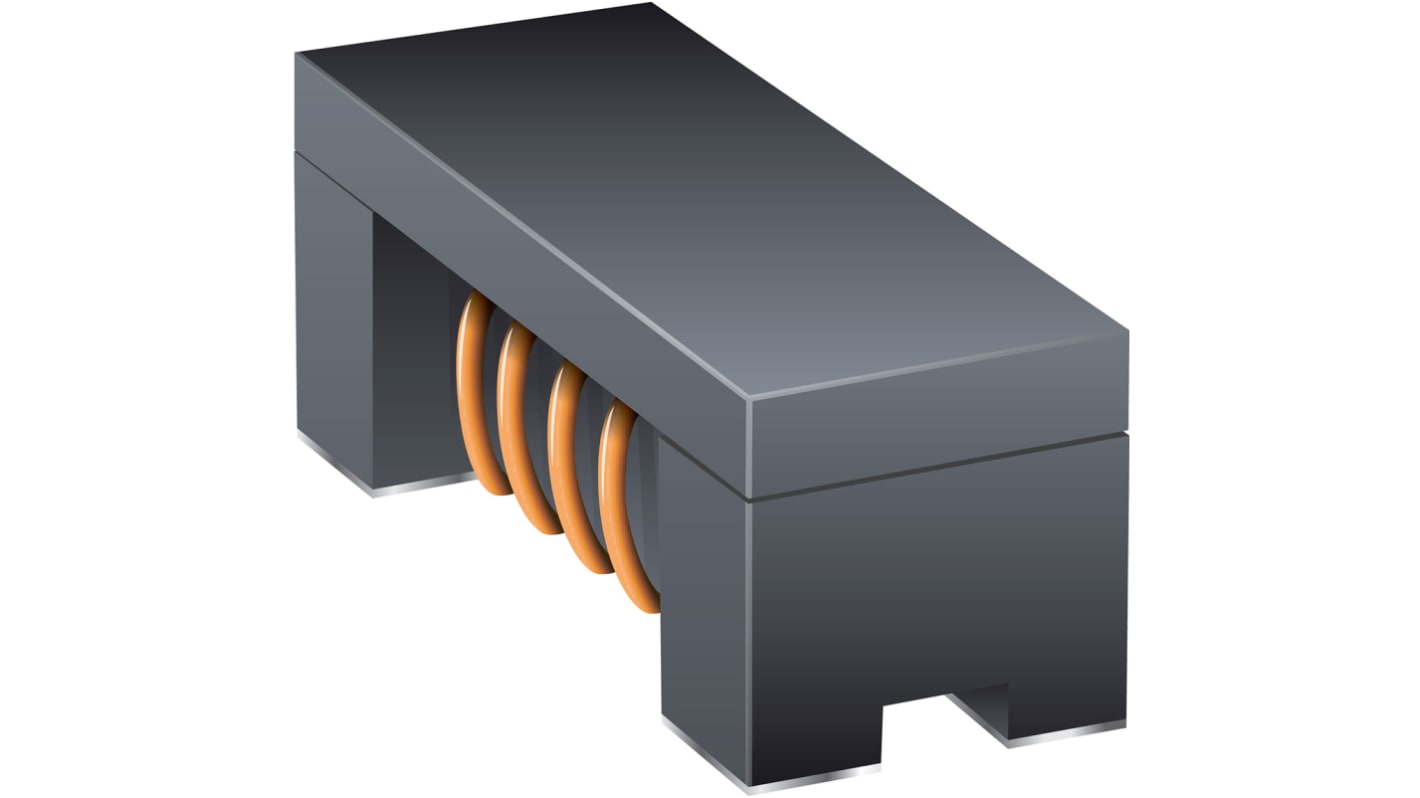

Bourns, SRF3216 Shielded Multilayer Surface Mount Inductor with a Ferrite Core, ±25 % 230 mA Idc
- RS Stock No.:
- 180-8964
- Mfr. Part No.:
- SRF3216-102Y
- Brand:
- Bourns
Bulk discount available
Subtotal (1 reel of 100 units)*
£18.90
(exc. VAT)
£22.70
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1,500 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 100 - 400 | £0.189 | £18.90 |
| 500 - 900 | £0.184 | £18.40 |
| 1000 + | £0.18 | £18.00 |
*price indicative
- RS Stock No.:
- 180-8964
- Mfr. Part No.:
- SRF3216-102Y
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Product Type | Multilayer Surface Mount Inductor | |
| Maximum DC Current | 230mA | |
| Length | 3.2mm | |
| Packaging | 2000 pieces per 7 in Reel | |
| Automotive Standard | AEC-Q200 | |
| Shielding | Yes | |
| Maximum DC Resistance | 1Ω | |
| Minimum Operating Temperature | -40°C | |
| Pin Count | 4 | |
| Series | SRF3216 | |
| Inductance Tolerance | ±25 % | |
| Maximum Operating Temperature | 125°C | |
| Height | 2mm | |
| Termination Style | Tin Plated Red Copper(DSn) | |
| Core Material | Ferrite | |
| Standards/Approvals | 95, RoHS Recast 2011, RoHS Directive 2002, Halogen Free, EC, EU | |
| Depth | 1.6mm | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Product Type Multilayer Surface Mount Inductor | ||
Maximum DC Current 230mA | ||
Length 3.2mm | ||
Packaging 2000 pieces per 7 in Reel | ||
Automotive Standard AEC-Q200 | ||
Shielding Yes | ||
Maximum DC Resistance 1Ω | ||
Minimum Operating Temperature -40°C | ||
Pin Count 4 | ||
Series SRF3216 | ||
Inductance Tolerance ±25 % | ||
Maximum Operating Temperature 125°C | ||
Height 2mm | ||
Termination Style Tin Plated Red Copper(DSn) | ||
Core Material Ferrite | ||
Standards/Approvals 95, RoHS Recast 2011, RoHS Directive 2002, Halogen Free, EC, EU | ||
Depth 1.6mm | ||
High impedance Value
Current rating up to 400 mA
Applications
Noise suppression
Personal computers
Display panels
