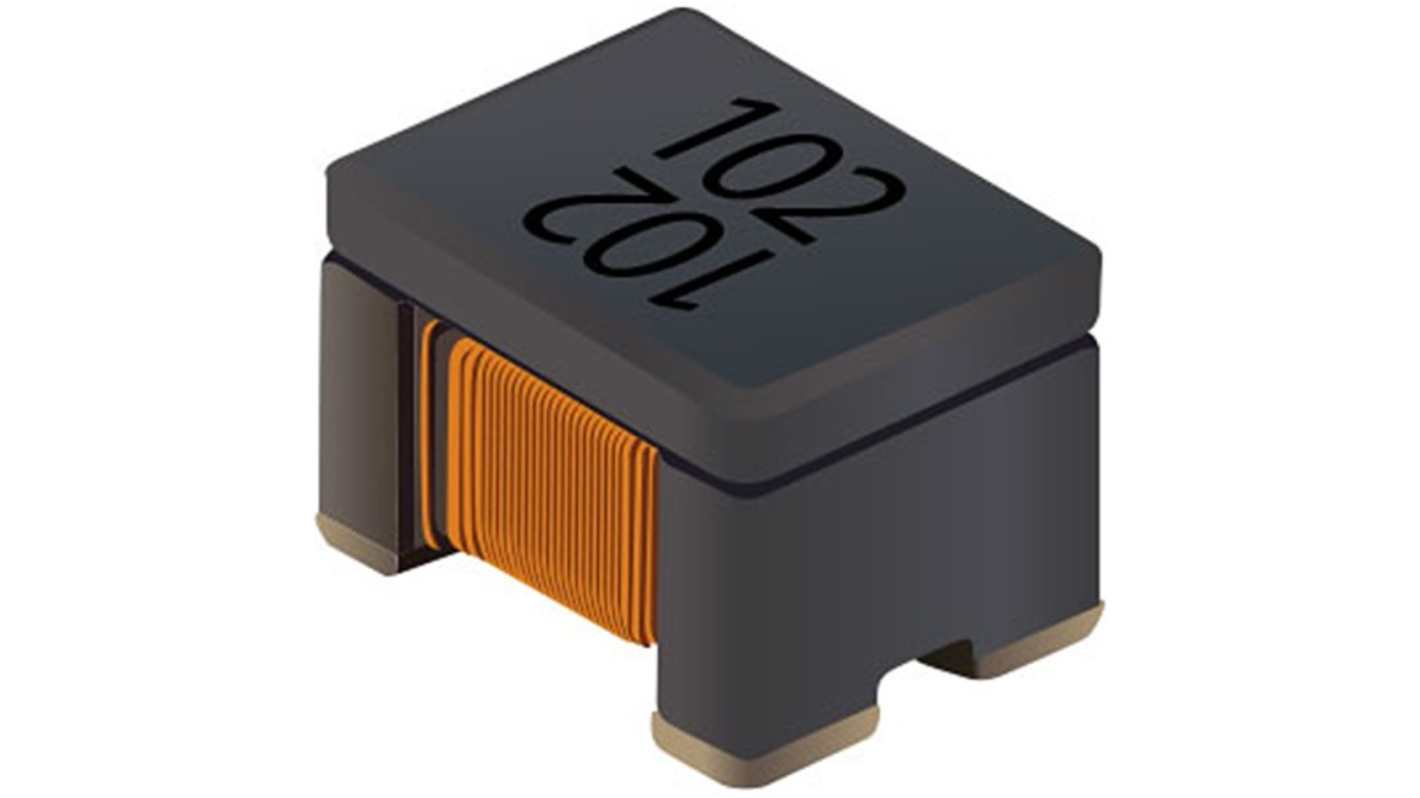

Bourns, SRF3225TP, 3225 Shielded Surface Mount Common Mode Choke 8.2 μH -30 to 50 % 1.5 A Idc
- RS Stock No.:
- 466-207
- Mfr. Part No.:
- SRF3225TP-102Y
- Brand:
- Bourns
Bulk discount available
Subtotal (1 bag of 2 units)*
£0.69
(exc. VAT)
£0.828
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1,926 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 2 - 48 | £0.345 | £0.69 |
| 50 - 198 | £0.295 | £0.59 |
| 200 - 998 | £0.22 | £0.44 |
| 1000 + | £0.175 | £0.35 |
*price indicative
- RS Stock No.:
- 466-207
- Mfr. Part No.:
- SRF3225TP-102Y
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Product Type | Surface Mount Common Mode Choke | |
| Inductance | 8.2μH | |
| Maximum DC Current | 1.5A | |
| Package/Case | 3225 | |
| Length | 3.2mm | |
| Automotive Standard | No | |
| Shielding | Yes | |
| Pin Count | 4 | |
| Maximum DC Resistance | 0.1Ω | |
| Minimum Operating Temperature | -40°C | |
| Series | SRF3225TP | |
| Inductance Tolerance | -30 to 50 % | |
| Maximum Operating Temperature | 105°C | |
| Diameter | 1.6mm | |
| Depth | 1.6mm | |
| Standards/Approvals | RoHS | |
| Height | 1.6mm | |
| Inductor Construction | Shielded | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Product Type Surface Mount Common Mode Choke | ||
Inductance 8.2μH | ||
Maximum DC Current 1.5A | ||
Package/Case 3225 | ||
Length 3.2mm | ||
Automotive Standard No | ||
Shielding Yes | ||
Pin Count 4 | ||
Maximum DC Resistance 0.1Ω | ||
Minimum Operating Temperature -40°C | ||
Series SRF3225TP | ||
Inductance Tolerance -30 to 50 % | ||
Maximum Operating Temperature 105°C | ||
Diameter 1.6mm | ||
Depth 1.6mm | ||
Standards/Approvals RoHS | ||
Height 1.6mm | ||
Inductor Construction Shielded | ||
The Bourns Common mode chokes feature a shielded construction for low radiation, minimizing electromagnetic interference. They support high current handling and come in a compact size, making them ideal for space-constrained applications that require efficient noise filtering and reliable performance.
RoHS compliant
Halogen free
