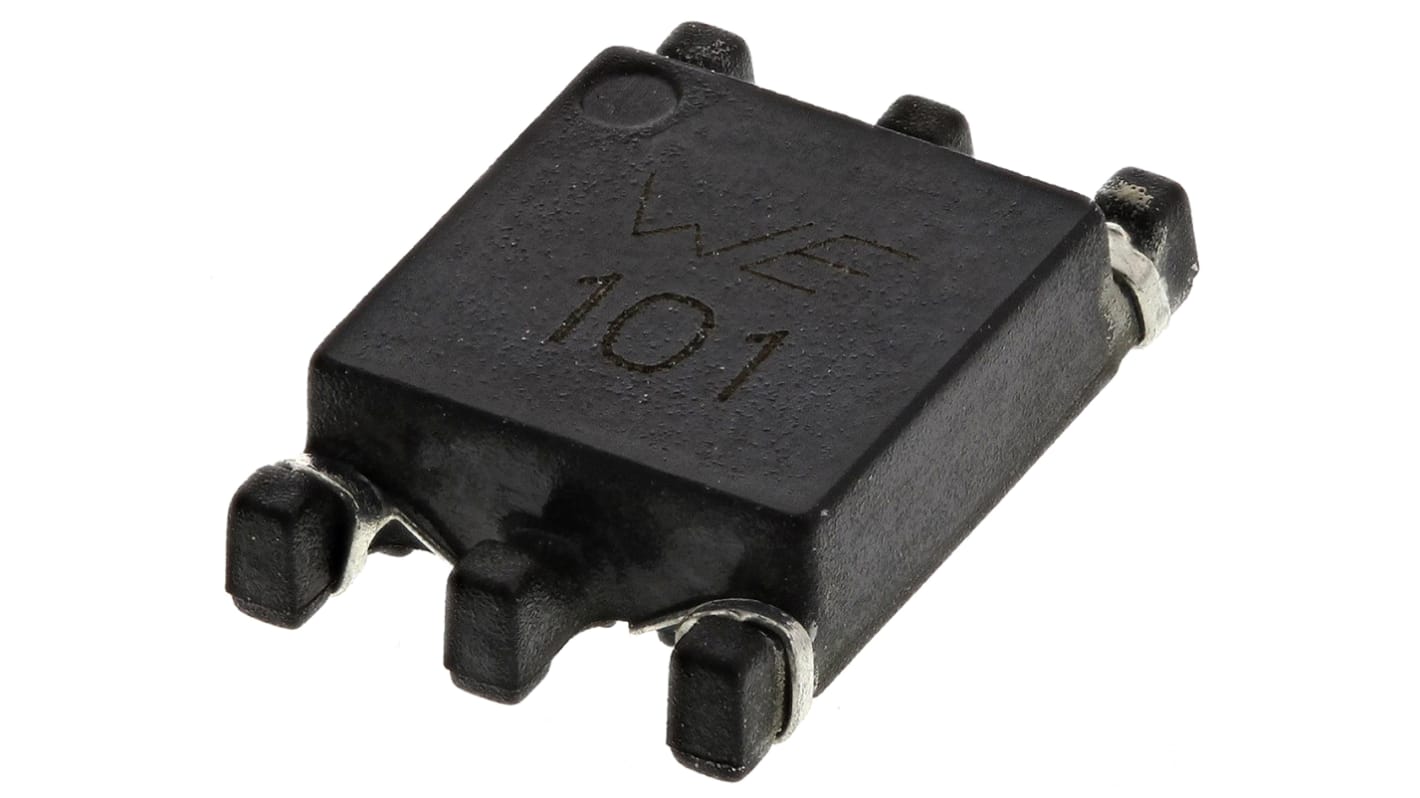

Wurth, WE-SL3 SMD Common Mode Line Filter with a Ferrite Core, 100 μH -30 → +50% Dual 500mA Idc
- RS Stock No.:
- 500-3256
- Mfr. Part No.:
- 744252101
- Brand:
- Wurth Elektronik
1220 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 5)
£2.06
(exc. VAT)
£2.47
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 45 | £2.06 | £10.30 |
| 50 - 245 | £1.85 | £9.25 |
| 250 - 495 | £1.706 | £8.53 |
| 500 - 995 | £1.586 | £7.93 |
| 1000 + | £1.482 | £7.41 |
| *price indicative | ||
- RS Stock No.:
- 500-3256
- Mfr. Part No.:
- 744252101
- Brand:
- Wurth Elektronik
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Common Mode SMD Line Inductors, Type WE-SL3
6-way SMD housing
Impedances up to 5000 Ω
Current rating up to 700 mA
Low stray/leakage inductance
UL compliant housing (UL 94-VO)
Applications include CAN, USB, firewire, data and power lines
Impedances up to 5000 Ω
Current rating up to 700 mA
Low stray/leakage inductance
UL compliant housing (UL 94-VO)
Applications include CAN, USB, firewire, data and power lines
Wurth SMD Common Mode Chokes
Specifications
Attribute | Value |
|---|---|
| Inductance | 100 μH |
| Maximum DC Current | 500mA |
| Length | 9.2mm |
| Depth | 6.6mm |
| Height | 2.5mm |
| Dimensions | 9.2 x 6.6 x 2.5mm |
| Tolerance | -30 → +50% |
| Maximum DC Resistance | 280mΩ |
| Series | WE-SL3 |
| Core Material | Ferrite |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Dual |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -40°C |
- RS Stock No.:
- 500-3256
- Mfr. Part No.:
- 744252101
- Brand:
- Wurth Elektronik
