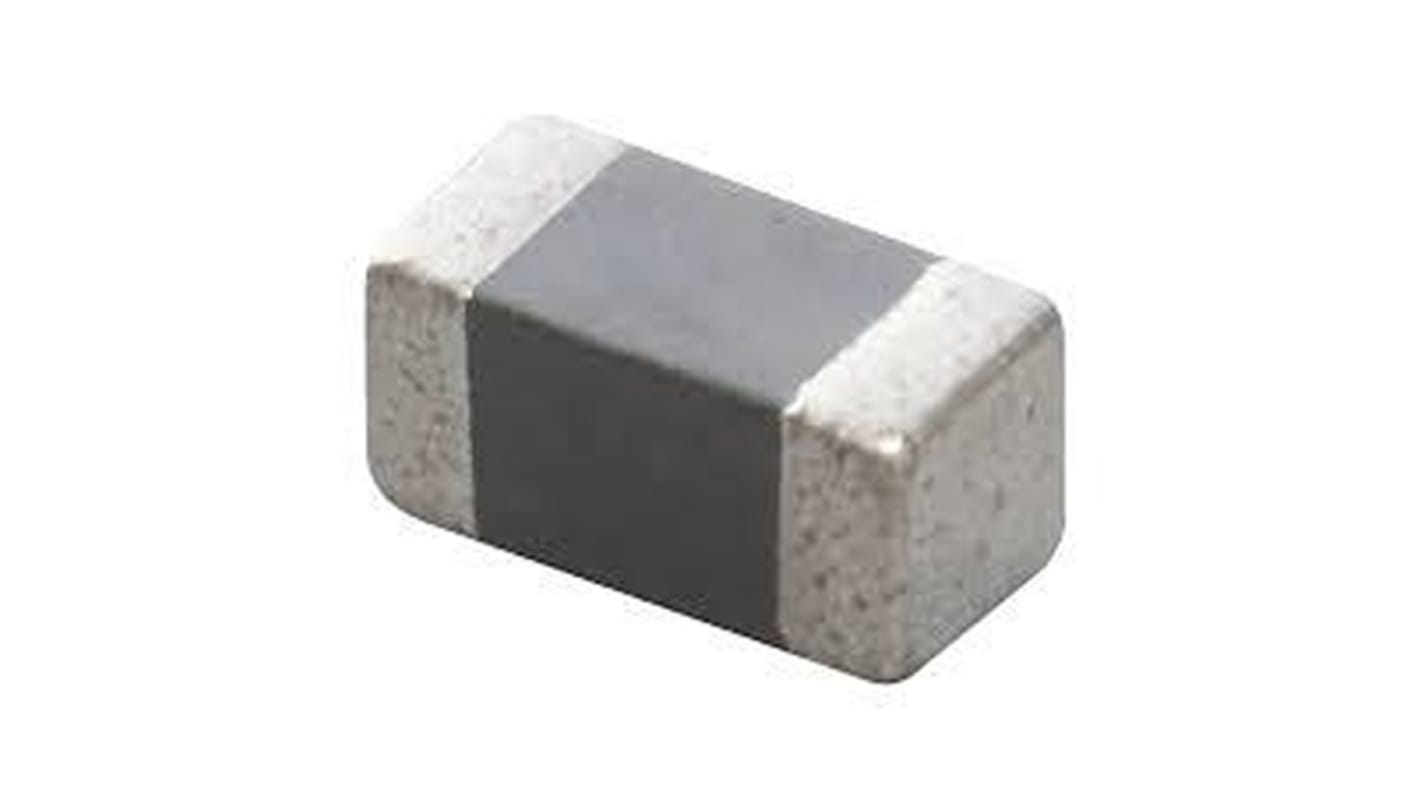

Murata, LQM21DN_70, 0805 (2012M) Shielded Power Inductor with a Ferrite Core Core, 15 μH ±20% Multilayer 140mA Idc
- RS Stock No.:
- 276-3794
- Mfr. Part No.:
- LQM21DN150M70L
- Brand:
- Murata
Subtotal (1 reel of 3000 units)*
£174.00
(exc. VAT)
£210.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.058 | £174.00 |
*price indicative
- RS Stock No.:
- 276-3794
- Mfr. Part No.:
- LQM21DN150M70L
- Brand:
- Murata
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murata | |
| Inductance | 15 μH | |
| Maximum DC Current | 140mA | |
| Package/Case | 0805 (2012M) | |
| Length | 2mm | |
| Depth | 1.25mm | |
| Shielded | Yes | |
| Tolerance | ±20% | |
| Series | LQM21DN_70 | |
| Core Material | Ferrite Core | |
| Inductor Construction | Multilayer | |
| Select all | ||
|---|---|---|
Brand Murata | ||
Inductance 15 μH | ||
Maximum DC Current 140mA | ||
Package/Case 0805 (2012M) | ||
Length 2mm | ||
Depth 1.25mm | ||
Shielded Yes | ||
Tolerance ±20% | ||
Series LQM21DN_70 | ||
Core Material Ferrite Core | ||
Inductor Construction Multilayer | ||
- COO (Country of Origin):
- JP
The Murata multilayer type inductor for power lines for automotive applications. It has shielded ferrite core.
Used in consumer equipment, automotive infotainment, comfort equipment, automotive powertrain, safety equipment, medical equipment
Bias current characteristics improved
AEC-Q200, RoHS, REACH compliant
Bias current characteristics improved
AEC-Q200, RoHS, REACH compliant
