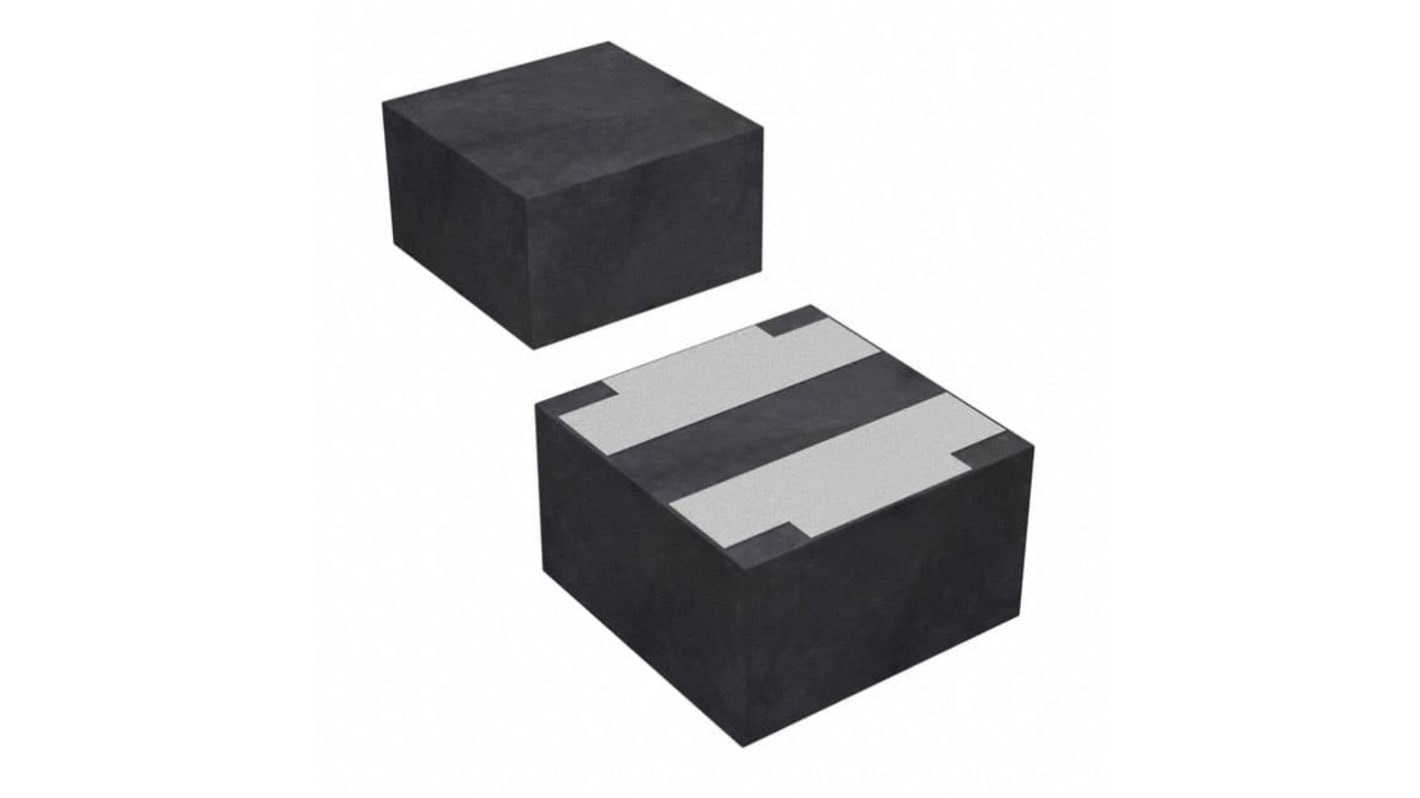

Wurth Elektronik, WE-MAPI SMT, 4020 Shielded Power Inductor with a Manganese Zinc Core, 15 μH ±20 % 1.9 A Idc

View all Surface Mount Inductors

Subtotal (1 reel of 1000 units)*

£961.00

(exc. VAT)

£1,153.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 1,000 unit(s) shipping from 08 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
1000 +£0.961£961.00

*price indicative

Development Kit Box with a flash stating "Win"
Win A Würth Elektronik Lighting Development Kit
Spend as little as £1 and win a Würth Elektronik Lighting Kit, complete with exclusive follow-up technical support from the experts themselves. Promotion ends 30th November 2025.
Claim my Lighting Kit
RS Stock No.:
258-5686
Mfr. Part No.:
74438356150
Brand:
Wurth Elektronik
Find similar products by selecting one or more attributes.
Select all

Brand

Wurth Elektronik

Product Type

Power Inductor

Inductance

15μH

Maximum DC Current

1.9A

Package/Case

4020

Length

4mm

Packaging

Tape & Reel

Automotive Standard

AEC-Q200

Shielding

Yes

Minimum Operating Temperature

-40°C

Maximum DC Resistance

230mΩ

Maximum Operating Temperature

125°C

Inductance Tolerance

±20 %

Series

WE-MAPI SMT

Standards/Approvals

AEC-Q200, DIN EN 61760-2, DIN ISO 2768, IEC 61249-2-21, JEDEC JS709B, REACH, RoHS

Core Material

Manganese Zinc

Height

2.1mm

Depth

2mm

Maximum Self Resonant Frequency

14MHz

Inductor Construction

Shielded

COO (Country of Origin):
KR
The Wurth Elektronik power inductor with magnetic iron alloy allows high rated currents. High current capability and handles high transient current spikes.

Compact design

Magnetically shielded

High current capability and handles high transient current spikes
