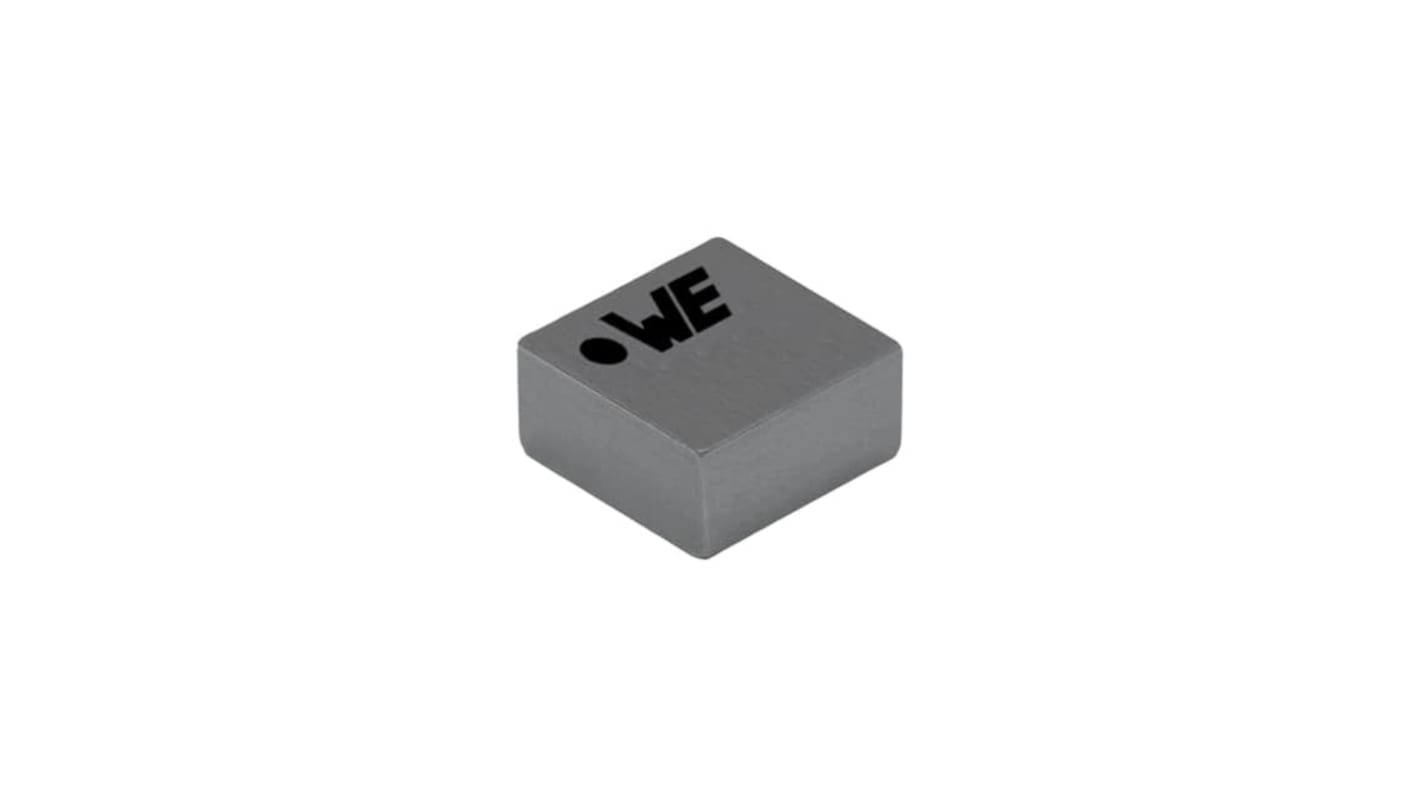

Wurth Elektronik, WE-MAPI SMT, 4030 Shielded Power Inductor with a Manganese Zinc Core, 2.2 μH ±20 % 7 A Idc
- RS Stock No.:
- 258-5700
- Distrelec Article No.:
- 301-85-126
- Mfr. Part No.:
- 74438357022
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal (1 unit)*
£1.40
(exc. VAT)
£1.68
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 560 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £1.40 |
| 10 - 49 | £1.22 |
| 50 - 99 | £0.95 |
| 100 - 249 | £0.74 |
| 250 + | £0.64 |
*price indicative
- RS Stock No.:
- 258-5700
- Distrelec Article No.:
- 301-85-126
- Mfr. Part No.:
- 74438357022
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Product Type | Power Inductor | |
| Inductance | 2.2μH | |
| Maximum DC Current | 7A | |
| Package/Case | 4030 | |
| Length | 4mm | |
| Packaging | Tape & Reel | |
| Automotive Standard | AEC-Q200 | |
| Shielding | Yes | |
| Minimum Operating Temperature | -40°C | |
| Maximum DC Resistance | 26mΩ | |
| Inductance Tolerance | ±20 % | |
| Series | WE-MAPI SMT | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | RoHS, REACH, JEDEC JS709B, IEC 61249-2-21, DIN ISO 2768, DIN EN 61760-2, AEC-Q200 | |
| Height | 3.1mm | |
| Core Material | Manganese Zinc | |
| Depth | 4.1mm | |
| Maximum Self Resonant Frequency | 35MHz | |
| Inductor Construction | Shielded | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Product Type Power Inductor | ||
Inductance 2.2μH | ||
Maximum DC Current 7A | ||
Package/Case 4030 | ||
Length 4mm | ||
Packaging Tape & Reel | ||
Automotive Standard AEC-Q200 | ||
Shielding Yes | ||
Minimum Operating Temperature -40°C | ||
Maximum DC Resistance 26mΩ | ||
Inductance Tolerance ±20 % | ||
Series WE-MAPI SMT | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals RoHS, REACH, JEDEC JS709B, IEC 61249-2-21, DIN ISO 2768, DIN EN 61760-2, AEC-Q200 | ||
Height 3.1mm | ||
Core Material Manganese Zinc | ||
Depth 4.1mm | ||
Maximum Self Resonant Frequency 35MHz | ||
Inductor Construction Shielded | ||
- COO (Country of Origin):
- KR
The Wurth Elektronik power inductor with magnetic iron alloy allows high rated currents. High current capability and handles high transient current spikes.
Compact design
Magnetically shielded
High current capability and handles high transient current spikes
