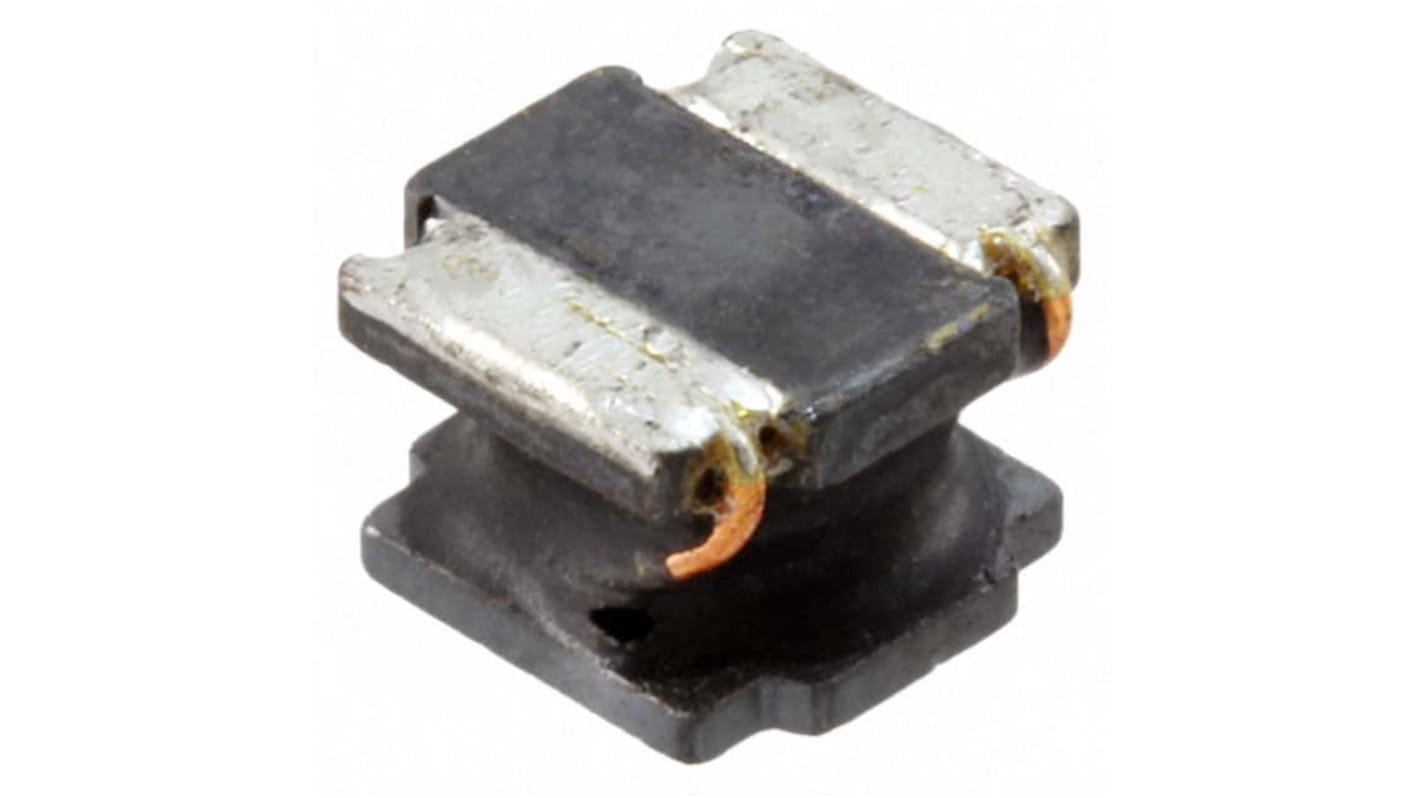

Wurth Elektronik, WE-LQS SMT, 6045 Shielded Power Inductor with a Manganese Zinc Core, 56 μH Semi Shielded ±20 % 1.5 A
- RS Stock No.:
- 258-5617
- Mfr. Part No.:
- 74404064560
- Brand:
- Wurth Elektronik
Subtotal (1 reel of 1500 units)*
£820.50
(exc. VAT)
£984.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 05 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1500 + | £0.547 | £820.50 |
*price indicative
- RS Stock No.:
- 258-5617
- Mfr. Part No.:
- 74404064560
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Product Type | Power Inductor | |
| Inductance | 56μH | |
| Maximum DC Current | 1.5A | |
| Package/Case | 6045 | |
| Packaging | Tape & Reel | |
| Length | 6mm | |
| Automotive Standard | AEC-Q200 | |
| Shielding | Yes | |
| Minimum Operating Temperature | -40°C | |
| Maximum DC Resistance | 220mΩ | |
| Series | WE-LQS SMT | |
| Inductance Tolerance | ±20 % | |
| Maximum Operating Temperature | 125°C | |
| Height | 4.5mm | |
| Depth | 4.5mm | |
| Core Material | Manganese Zinc | |
| Standards/Approvals | AEC-Q200, RoHS, REACH, DIN EN 61760-2, JEDEC JS709B, IEC 61249-2-21, DIN ISO 2768 | |
| Maximum Self Resonant Frequency | 8.3MHz | |
| Inductor Construction | Semi Shielded | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Product Type Power Inductor | ||
Inductance 56μH | ||
Maximum DC Current 1.5A | ||
Package/Case 6045 | ||
Packaging Tape & Reel | ||
Length 6mm | ||
Automotive Standard AEC-Q200 | ||
Shielding Yes | ||
Minimum Operating Temperature -40°C | ||
Maximum DC Resistance 220mΩ | ||
Series WE-LQS SMT | ||
Inductance Tolerance ±20 % | ||
Maximum Operating Temperature 125°C | ||
Height 4.5mm | ||
Depth 4.5mm | ||
Core Material Manganese Zinc | ||
Standards/Approvals AEC-Q200, RoHS, REACH, DIN EN 61760-2, JEDEC JS709B, IEC 61249-2-21, DIN ISO 2768 | ||
Maximum Self Resonant Frequency 8.3MHz | ||
Inductor Construction Semi Shielded | ||
- COO (Country of Origin):
- CN
The Wurth Elektronik SMT power inductor with magnetically shielded by use of a magnetic resin, for use as switching controllers which require high efficiency. Big sizes can be used in shock resisting circuits.
Robust construction
Compact design Power Inductor
1.7 times more current than compared to an unshielded version
