Wurth, 6045 Power Inductor 68 μH 1.1A Idc
- RS Stock No.:
- 259-1124
- Mfr. Part No.:
- 78404064680
- Brand:
- Wurth Elektronik
Subtotal (1 reel of 1500 units)*
£957.00
(exc. VAT)
£1,149.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,500 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
---|---|---|
1500 + | £0.638 | £957.00 |
*price indicative
- RS Stock No.:
- 259-1124
- Mfr. Part No.:
- 78404064680
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Wurth Elektronik | |
Inductance | 68 μH | |
Maximum DC Current | 1.1A | |
Package/Case | 6045 | |
Length | 5mm | |
Depth | 6mm | |
Automotive Standard | AEC-Q200 | |
Select all | ||
---|---|---|
Brand Wurth Elektronik | ||
Inductance 68 μH | ||
Maximum DC Current 1.1A | ||
Package/Case 6045 | ||
Length 5mm | ||
Depth 6mm | ||
Automotive Standard AEC-Q200 | ||
- COO (Country of Origin):
- CN

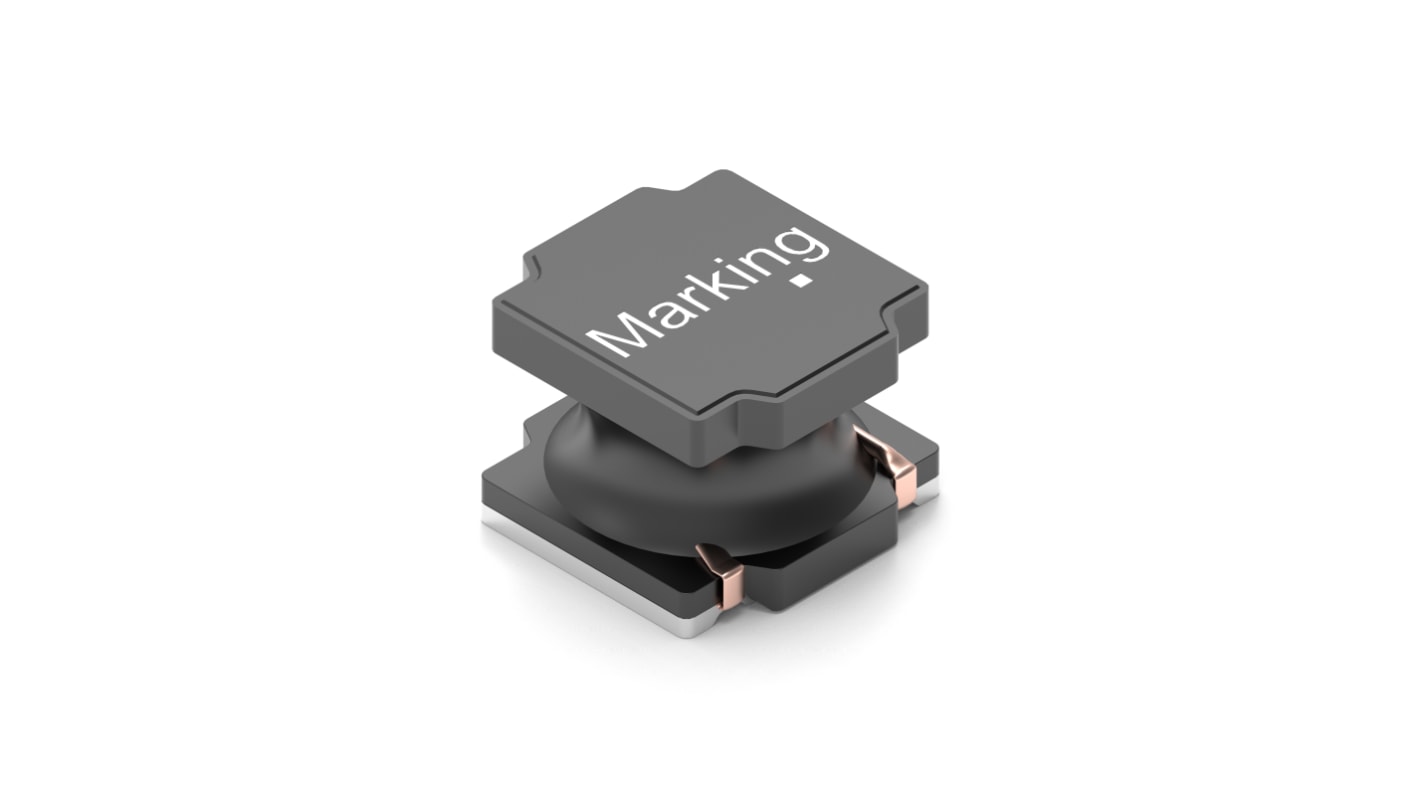

The Wurth Elektronik WE-LQSH SMD semi shielded power inductors are compact semi-shielded power inductors with an iron core for applications with high DC output current. The powder core can be loaded with 70% more saturation current than other semi-shielded power inductors. The wurth elektronik WE-LQSH series has a soft saturation behaviour and a magnetic adhesive epoxy around the inductor core that reduces disturbing noise and magnetic stray field.
High current semi-shielded power inductor
70% higher saturation current than WE-LQS series
Soft saturation current
Magnetically shielded through magnetic glue
25V maximum peak voltage
70% higher saturation current than WE-LQS series
Soft saturation current
Magnetically shielded through magnetic glue
25V maximum peak voltage
