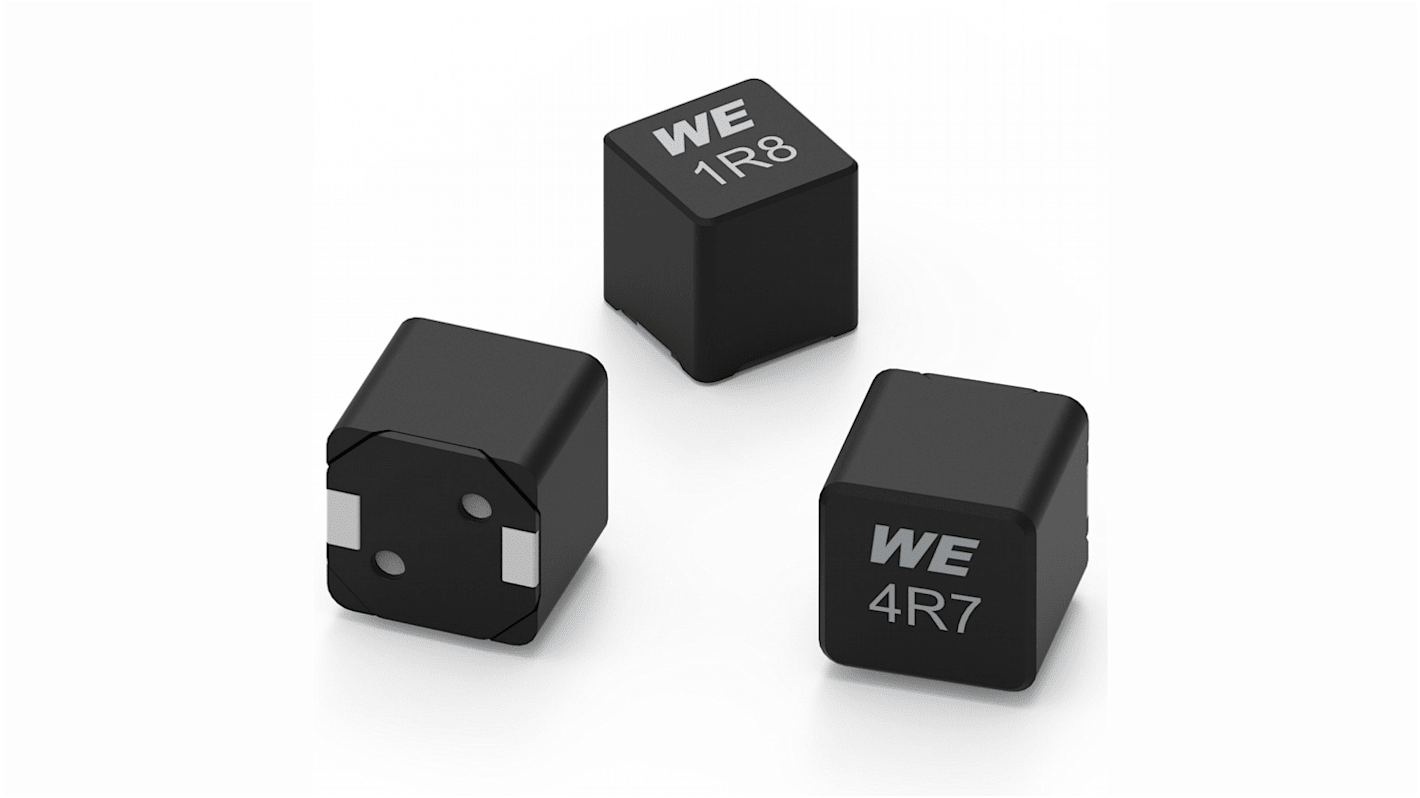

Wurth, 1212 Wire-wound SMD Inductor 6.2 μH 8.8A Idc
- RS Stock No.:
- 248-8204
- Mfr. Part No.:
- 78433290620
- Brand:
- Wurth Elektronik
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 248-8204
- Mfr. Part No.:
- 78433290620
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Inductance | 6.2 μH | |
| Maximum DC Current | 8.8A | |
| Package/Case | 1212 | |
| Length | 12.2mm | |
| Automotive Standard | AEC-Q200 | |
| Depth | 11.75mm | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Inductance 6.2 μH | ||
Maximum DC Current 8.8A | ||
Package/Case 1212 | ||
Length 12.2mm | ||
Automotive Standard AEC-Q200 | ||
Depth 11.75mm | ||
- COO (Country of Origin):
- TH
The Wurth Elektronik SMT high current inductor used as a filter choke for motor electronics, DC/DC converter, multimedia applications as well as in microprocessor filtering.
Magnetically shielded rod core inductor
Operating temperature: -55 °C up to +150 °C
Saturation current up to 48.5 A
Iron alloy core leads to soft saturation
Excellent coplanarity due to the plastic base
Operating temperature: -55 °C up to +150 °C
Saturation current up to 48.5 A
Iron alloy core leads to soft saturation
Excellent coplanarity due to the plastic base
