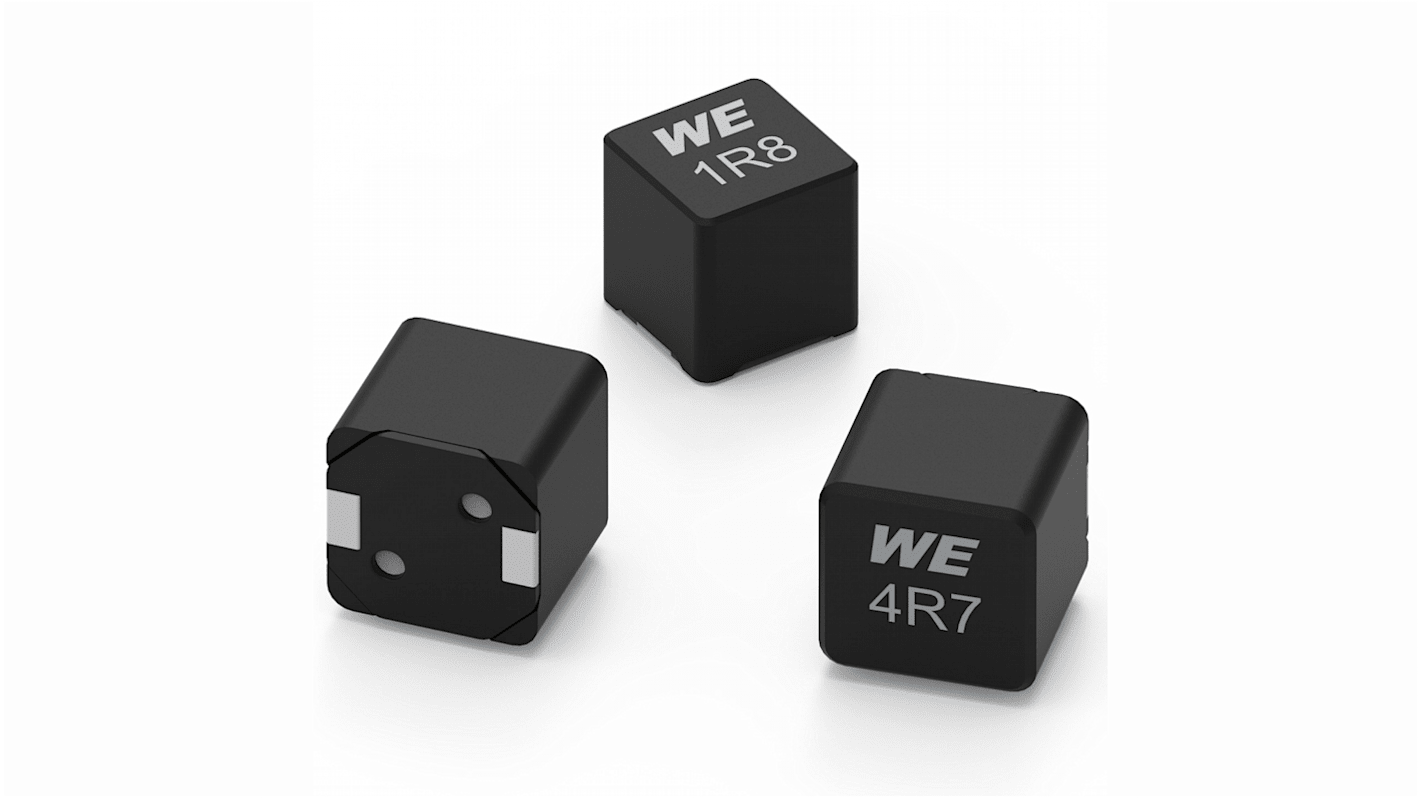

Wurth Elektronik, WE-CHSA, 1212 Shielded Surface Mount Inductor with a Magnetic Iron Alloy Core, 2.4 μH ±20 % 13.8 A Idc

View all Surface Mount Inductors
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Development Kit Box with a flash stating "Win"
Win A Würth Elektronik Lighting Development Kit
Spend as little as £1 and win a Würth Elektronik Lighting Kit, complete with exclusive follow-up technical support from the experts themselves. Promotion ends 30th November 2025.
Claim my Lighting Kit
RS Stock No.:
248-8198
Mfr. Part No.:
78433290240
Brand:
Wurth Elektronik
Find similar products by selecting one or more attributes.
Select all

Brand

Wurth Elektronik

Inductance

2.4μH

Product Type

Surface Mount Inductor

Maximum DC Current

13.8A

Package/Case

1212

Packaging

Tape & Reel

Length

12.2mm

Automotive Standard

AEC-Q200

Shielding

Yes

Maximum DC Resistance

6.4mΩ

Pin Count

2

Minimum Operating Temperature

-55°C

Inductance Tolerance

±20 %

Maximum Operating Temperature

150°C

Series

WE-CHSA

Termination Style

Surface Mount

Standards/Approvals

RoHS, REACH, JEDEC JS709B

Core Material

Magnetic Iron Alloy

Depth

11.75mm

Height

11.75mm

Maximum Self Resonant Frequency

60MHz

Moulded

Yes

Inductor Construction

Wirewound

COO (Country of Origin):
TH
The Wurth Elektronik SMT high current inductor used as a filter choke for motor electronics, DC/DC converter, multimedia applications as well as in microprocessor filtering.

Magnetically shielded rod core inductor

Operating temperature is -55 °C up to +150 °C

Saturation current up to 48.5 A

Iron alloy core leads to soft saturation

Excellent coplanarity due to the plastic base
