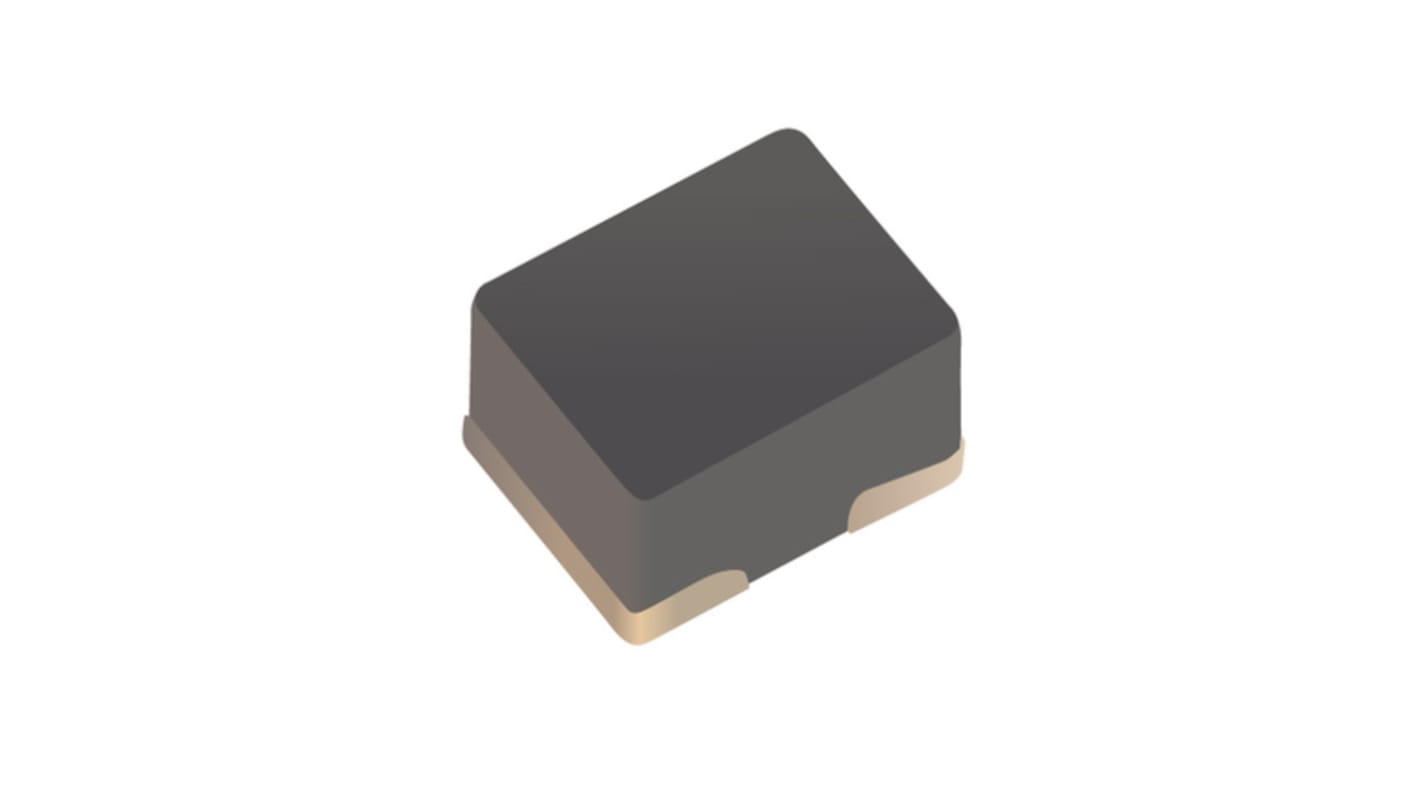

Bourns, SRP3212, 3212 Shielded Surface Mount Inductor with a Metal Alloy Powder Core, 4.7 mH ±20 % 2.2 A Idc Q:5
- RS Stock No.:
- 247-8227
- Mfr. Part No.:
- SRP3212-4R7M
- Brand:
- Bourns
Bulk discount available
View bulk pricing optionsSubtotal (1 tape of 10 units)*
£1.80
(exc. VAT)
£2.20
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 1,950 unit(s) shipping from 02 October 2026
- Plus 2,000 unit(s) shipping from 16 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 10 - 90 | £0.18 | £1.80 |
| 100 - 190 | £0.158 | £1.58 |
| 200 - 490 | £0.122 | £1.22 |
| 500 - 990 | £0.107 | £1.07 |
| 1000 + | £0.088 | £0.88 |
*price indicative
- RS Stock No.:
- 247-8227
- Mfr. Part No.:
- SRP3212-4R7M
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Inductance | 4.7mH | |
| Product Type | Surface Mount Inductor | |
| Maximum DC Current | 2.2A | |
| Package/Case | 3212 | |
| Length | 3.2mm | |
| Packaging | 2000 pieces per 7 in Reel | |
| Automotive Standard | AEC-Q | |
| Shielding | Yes | |
| Pin Count | 2 | |
| Maximum DC Resistance | 146mΩ | |
| Minimum Operating Temperature | -40°C | |
| Series | SRP3212 | |
| Inductance Tolerance | ±20 % | |
| Maximum Operating Temperature | 125°C | |
| Termination Style | Silver/Nickel/Tin | |
| Height | 1mm | |
| Standards/Approvals | RoHS | |
| Depth | 2.5mm | |
| Core Material | Metal Alloy Powder | |
| Maximum Self Resonant Frequency | 25MHz | |
| Moulded | Yes | |
| Inductor Construction | Shielded | |
| Minimum Quality Factor | 5 | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Inductance 4.7mH | ||
Product Type Surface Mount Inductor | ||
Maximum DC Current 2.2A | ||
Package/Case 3212 | ||
Length 3.2mm | ||
Packaging 2000 pieces per 7 in Reel | ||
Automotive Standard AEC-Q | ||
Shielding Yes | ||
Pin Count 2 | ||
Maximum DC Resistance 146mΩ | ||
Minimum Operating Temperature -40°C | ||
Series SRP3212 | ||
Inductance Tolerance ±20 % | ||
Maximum Operating Temperature 125°C | ||
Termination Style Silver/Nickel/Tin | ||
Height 1mm | ||
Standards/Approvals RoHS | ||
Depth 2.5mm | ||
Core Material Metal Alloy Powder | ||
Maximum Self Resonant Frequency 25MHz | ||
Moulded Yes | ||
Inductor Construction Shielded | ||
Minimum Quality Factor 5 | ||
- COO (Country of Origin):
- CN
The bourns shielded power inductors of SRP3212-4R7M-series has Shielded construction for the low radiation. It has metal alloy powder core for high saturation current. It is halogen free and RoHS compliant.The operating temperature is -40 °C to +125 °C including temperature rise.The storage temperature for the component is -40 °C to +125 °C and the temperature can be rise upto 40°C
Inductance is 4.7 mH
Moisture sensitivity level is 1
It has 20 % tolerance
