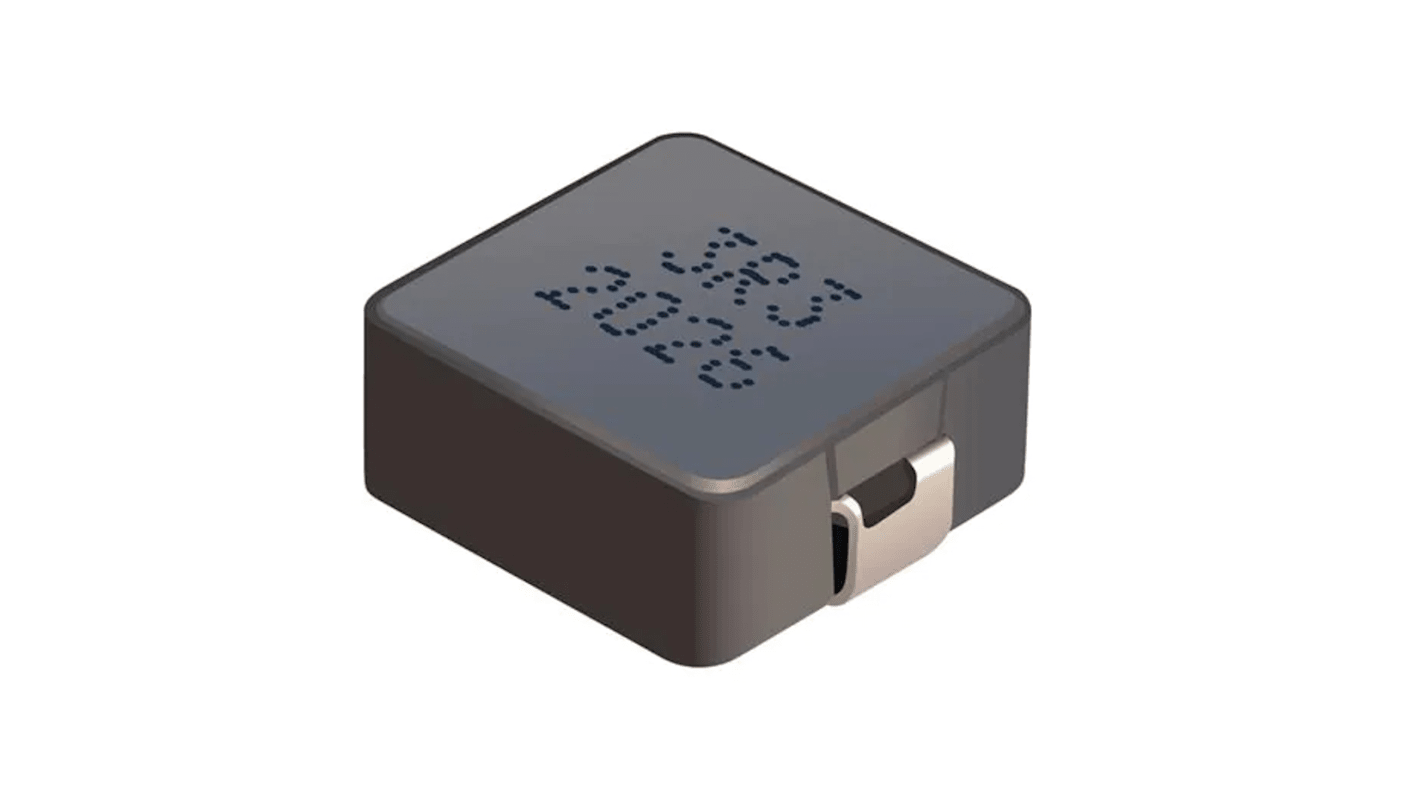

Bourns, SRP7028AA, 7028 Shielded Power Inductor with a Metal Alloy Powder Core, 22 μH ±20 % 2.5 A Idc Q:10

View all Surface Mount Inductors

Subtotal (1 reel of 1000 units)*

£517.00

(exc. VAT)

£620.00

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
1000 +£0.517£517.00

*price indicative

RS Stock No.:
247-6130
Mfr. Part No.:
SRP7028AA-220M
Brand:
Bourns
Find similar products by selecting one or more attributes.
Select all

Brand

Bourns

Product Type

Power Inductor

Inductance

22 μH

Maximum DC Current

2.5A

Package/Case

7028

Length

7.1mm

Packaging

Tape & Reel

Automotive Standard

AEC-Q200

Shielding

Yes

Minimum Operating Temperature

-55°C

Pin Count

2

Maximum DC Resistance

190mΩ

Series

SRP7028AA

Inductance Tolerance

±20 %

Maximum Operating Temperature

155°C

Core Material

Metal Alloy Powder

Termination Style

Surface Mount

Height

2.8mm

Depth

6.6mm

Standards/Approvals

RoHS

Maximum Self Resonant Frequency

9MHz

Moulded

Yes

Minimum Quality Factor

10

Inductor Construction

Wirewound

COO (Country of Origin):
CN
The Bourns SRP7028AA series power Inductor are manufactured with a metal alloy powder core featuring high saturation current and shielded construction for low magnetic radiation. It is AEC-Q200 qualified and 22 μH inductance with 2.5 A rated current.

Low buzz noise

Operating temperature is -55 °C to 155 °C

Halogen free

RoHS compliant
