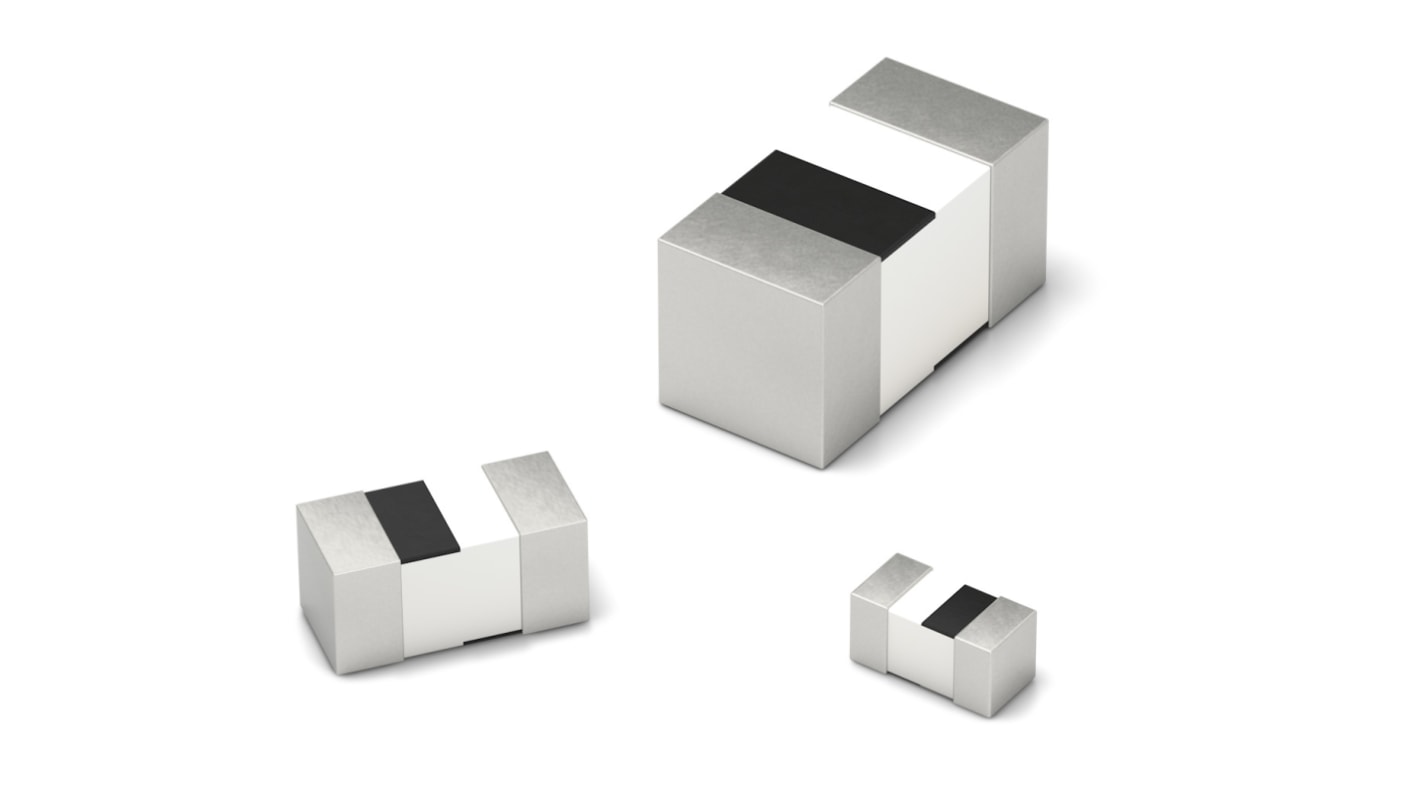

Wurth Elektronik, WE-MK, 0201 Shielded Multilayer Surface Mount Inductor with a Ceramic Core, 9.1 nH Multilayer ±2 % 220
- RS Stock No.:
- 245-8374
- Distrelec Article No.:
- 304-41-045
- Mfr. Part No.:
- 7447820091G
- Brand:
- Wurth Elektronik
Bulk discount available
View bulk pricing optionsSubtotal (1 tape of 10 units)*
£0.60
(exc. VAT)
£0.70
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 15,000 unit(s), ready to ship
Units | Per unit | Per Tape* |
|---|---|---|
| 10 - 990 | £0.06 | £0.60 |
| 1000 - 1990 | £0.054 | £0.54 |
| 2000 - 4990 | £0.048 | £0.48 |
| 5000 - 9990 | £0.04 | £0.40 |
| 10000 + | £0.038 | £0.38 |
*price indicative
- RS Stock No.:
- 245-8374
- Distrelec Article No.:
- 304-41-045
- Mfr. Part No.:
- 7447820091G
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Product Type | Multilayer Surface Mount Inductor | |
| Inductance | 9.1nH | |
| Maximum DC Current | 220mA | |
| Package/Case | 0201 | |
| Packaging | Tape & Reel | |
| Length | 0.6mm | |
| Automotive Standard | AEC-Q200 | |
| Shielding | Yes | |
| Minimum Operating Temperature | -55°C | |
| Maximum DC Resistance | 0.48Ω | |
| Pin Count | 2 | |
| Maximum Operating Temperature | 125°C | |
| Series | WE-MK | |
| Inductance Tolerance | ±2 % | |
| Termination Style | Surface Mount | |
| Core Material | Ceramic | |
| Standards/Approvals | REACH, RoHS | |
| Height | 0.3mm | |
| Depth | 0.3mm | |
| Minimum Quality Factor | 4 | |
| Moulded | Yes | |
| Inductor Construction | Multilayer | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Product Type Multilayer Surface Mount Inductor | ||
Inductance 9.1nH | ||
Maximum DC Current 220mA | ||
Package/Case 0201 | ||
Packaging Tape & Reel | ||
Length 0.6mm | ||
Automotive Standard AEC-Q200 | ||
Shielding Yes | ||
Minimum Operating Temperature -55°C | ||
Maximum DC Resistance 0.48Ω | ||
Pin Count 2 | ||
Maximum Operating Temperature 125°C | ||
Series WE-MK | ||
Inductance Tolerance ±2 % | ||
Termination Style Surface Mount | ||
Core Material Ceramic | ||
Standards/Approvals REACH, RoHS | ||
Height 0.3mm | ||
Depth 0.3mm | ||
Minimum Quality Factor 4 | ||
Moulded Yes | ||
Inductor Construction Multilayer | ||
- COO (Country of Origin):
- TW
The Wurth Elektroniks multi-layer ceramic SMT inductor for high frequency circuits, bluetooths, wireless LANs, filter circuits, oscillators, pagers, PCMCIA-cards. Reflow solder profile is recommended. It is coil integrated in a multilayer ceramic structure with polarity marked.
High self resonant frequency
Inductive tolerances of ±2% (or ±0.1nH) and ±5% (or ±0.3nH)
Inductance very stable over temperature
Operating temperature of -55°C to +125°C
