Wurth, 0201 (0603M) Multilayer Surface Mount Inductor 1 nH 120mA Idc
- RS Stock No.:
- 245-8329
- Mfr. Part No.:
- 7447820010G
- Brand:
- Wurth Elektronik
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 245-8329
- Mfr. Part No.:
- 7447820010G
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Wurth Elektronik | |
Inductance | 1 nH | |
Maximum DC Current | 120mA | |
Package/Case | 0201 (0603M) | |
Length | 0.6mm | |
Automotive Standard | AEC-Q200 | |
Depth | 0.3mm | |
Select all | ||
---|---|---|
Brand Wurth Elektronik | ||
Inductance 1 nH | ||
Maximum DC Current 120mA | ||
Package/Case 0201 (0603M) | ||
Length 0.6mm | ||
Automotive Standard AEC-Q200 | ||
Depth 0.3mm | ||
- COO (Country of Origin):
- TW

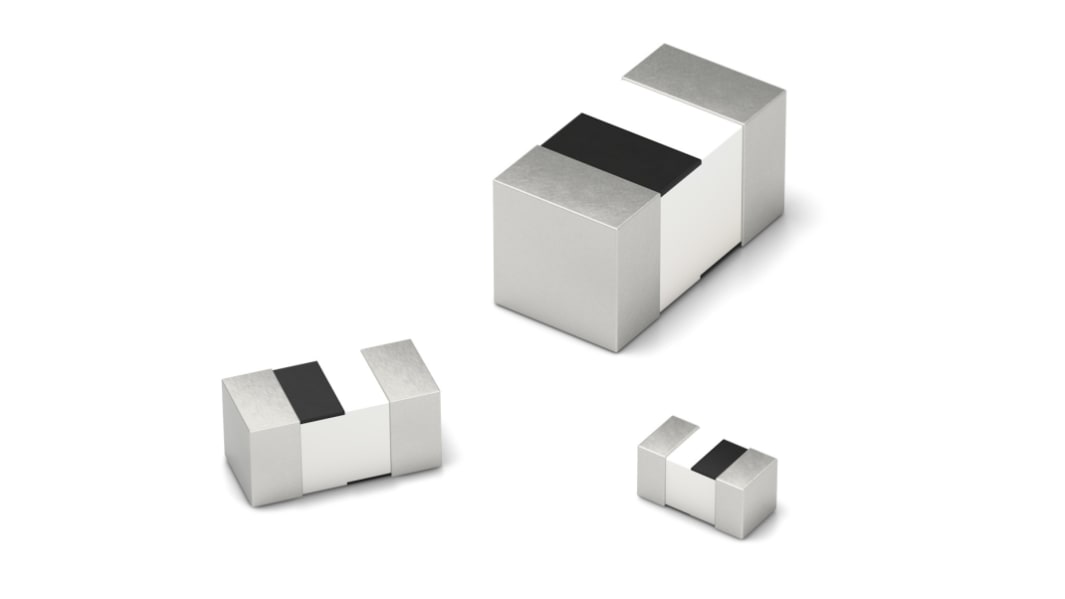

The Wurth Elektroniks multi-layer ceramic SMT inductor for high frequency circuits, bluetooths, wireless LANs, filter circuits, oscillators, pagers, PCMCIA-cards. Reflow solder profile is recommended. It is coil integrated in a multilayer ceramic structure with polarity marked.
High self resonant frequency
Inductive tolerances of ±2% (or ±0.1nH) and ±5% (or ±0.3nH)
Inductance very stable over temperature
Operating temperature of -55°C to +125°C
Inductive tolerances of ±2% (or ±0.1nH) and ±5% (or ±0.3nH)
Inductance very stable over temperature
Operating temperature of -55°C to +125°C
