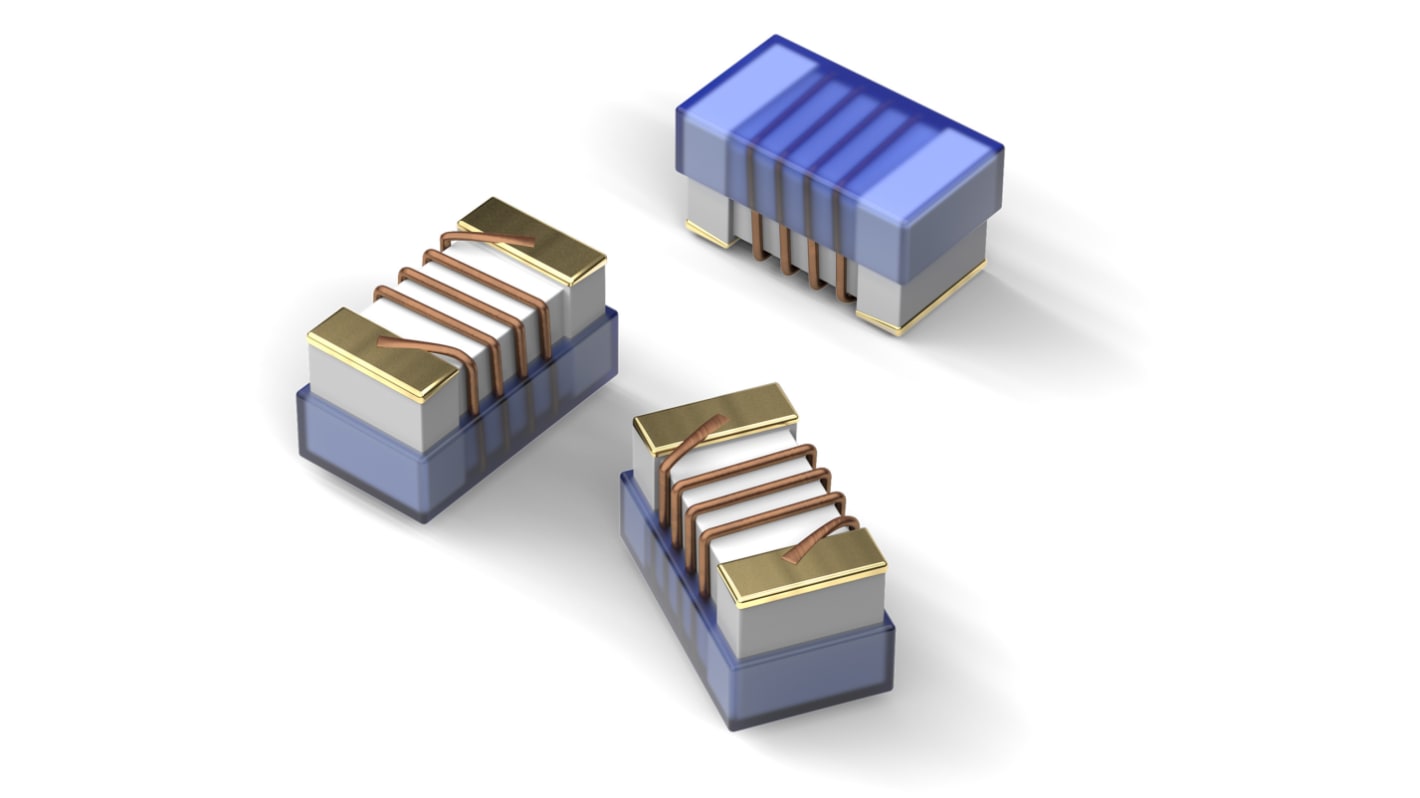

Wurth, 0805 (2012M) Wire-wound SMD Inductor 1.5 μH 160mA Idc
- RS Stock No.:
- 245-8318
- Mfr. Part No.:
- 7447603150A
- Brand:
- Wurth Elektronik
Subtotal (1 reel of 2000 units)*
£362.00
(exc. VAT)
£434.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
---|---|---|
2000 + | £0.181 | £362.00 |
*price indicative
- RS Stock No.:
- 245-8318
- Mfr. Part No.:
- 7447603150A
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Wurth Elektronik | |
Inductance | 1.5 μH | |
Maximum DC Current | 160mA | |
Package/Case | 0805 (2012M) | |
Length | 2mm | |
Automotive Standard | AEC-Q200 | |
Depth | 1.2mm | |
Select all | ||
---|---|---|
Brand Wurth Elektronik | ||
Inductance 1.5 μH | ||
Maximum DC Current 160mA | ||
Package/Case 0805 (2012M) | ||
Length 2mm | ||
Automotive Standard AEC-Q200 | ||
Depth 1.2mm | ||
- COO (Country of Origin):
- MY
The Wurth Elektroniks SMT wire-wound ceramic inductor is especially developed for high frequency applications. Also for applications such as RF transceiver/communications, SAT-receiver, set top box, broadband signal transmission, bluetooth and wireless LAN.
Excellent Q factor and highest possible self resonant frequencies up to 12.5 GHz
High quality with high thermal stability
Inductance tolerances of 2% and 5%
Recommended soldering of reflow type
Operating temperature of -40°C to +125°C
High quality with high thermal stability
Inductance tolerances of 2% and 5%
Recommended soldering of reflow type
Operating temperature of -40°C to +125°C
