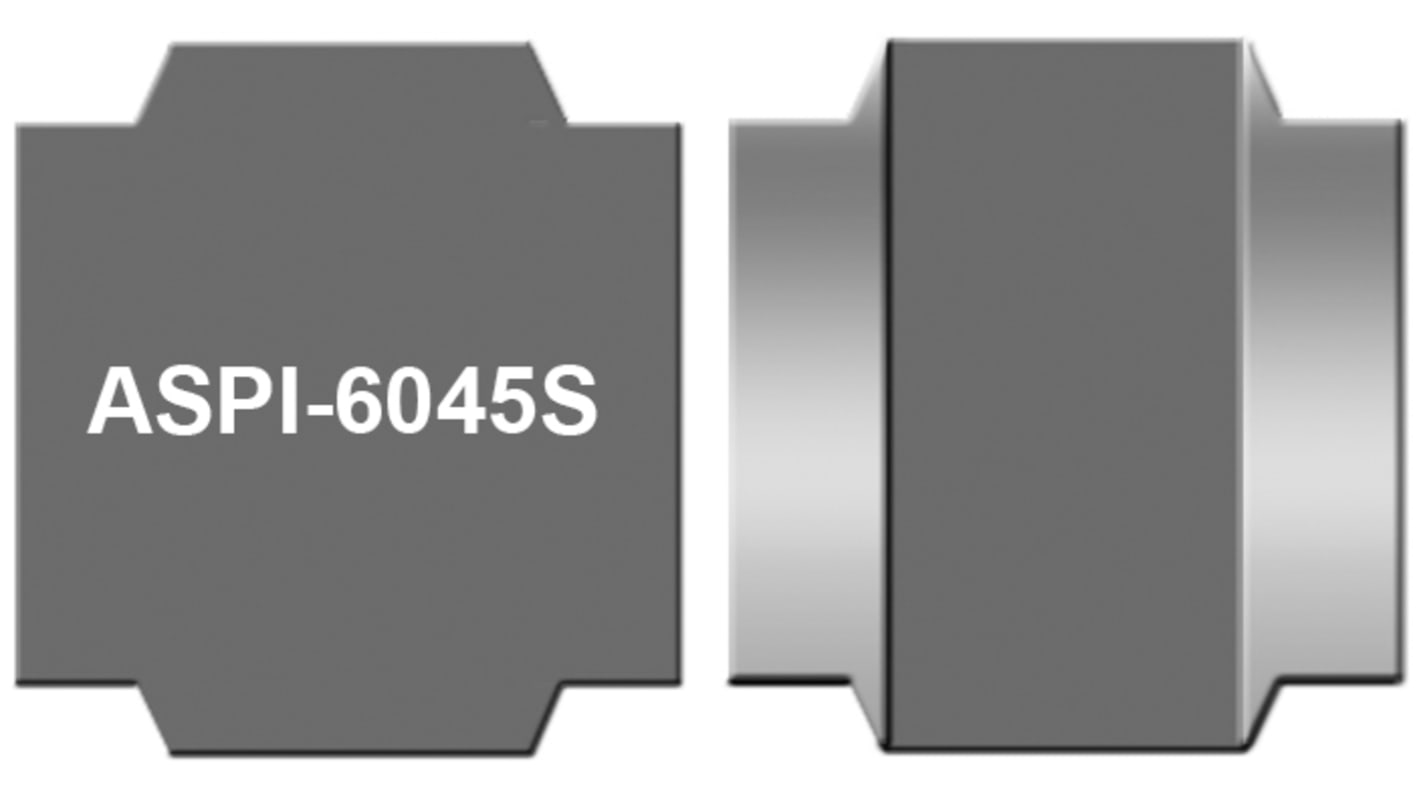

Abracon, ASPI-6045S, Surface Mount Yes Surface Mount Inductor with a Ferrite Core, 22 μH Flat Wire Winding ±20 % 1.8 A
- RS Stock No.:
- 240-0948
- Mfr. Part No.:
- ASPI-6045S-220M-T
- Brand:
- Abracon
Bulk discount available
Subtotal (1 pack of 25 units)*
£5.75
(exc. VAT)
£7.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 825 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 25 | £0.23 | £5.75 |
| 50 - 75 | £0.226 | £5.65 |
| 100 - 225 | £0.201 | £5.03 |
| 250 - 475 | £0.197 | £4.93 |
| 500 + | £0.18 | £4.50 |
*price indicative
- RS Stock No.:
- 240-0948
- Mfr. Part No.:
- ASPI-6045S-220M-T
- Brand:
- Abracon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Abracon | |
| Product Type | Surface Mount Inductor | |
| Inductance | 22 μH | |
| Maximum DC Current | 1.8A | |
| Package/Case | Surface Mount | |
| Length | 6mm | |
| Packaging | Tape & Reel | |
| Automotive Standard | No | |
| Shielding | Yes | |
| Maximum DC Resistance | 0.09Ω | |
| Minimum Operating Temperature | -40°C | |
| Pin Count | 2 | |
| Series | ASPI-6045S | |
| Maximum Operating Temperature | 125°C | |
| Inductance Tolerance | ±20 % | |
| Standards/Approvals | RoHS | |
| Termination Style | Surface Mount | |
| Core Material | Ferrite | |
| Depth | 4.5mm | |
| Height | 4.5mm | |
| Inductor Construction | Flat Wire Winding | |
| Moulded | Yes | |
| Select all | ||
|---|---|---|
Brand Abracon | ||
Product Type Surface Mount Inductor | ||
Inductance 22 μH | ||
Maximum DC Current 1.8A | ||
Package/Case Surface Mount | ||
Length 6mm | ||
Packaging Tape & Reel | ||
Automotive Standard No | ||
Shielding Yes | ||
Maximum DC Resistance 0.09Ω | ||
Minimum Operating Temperature -40°C | ||
Pin Count 2 | ||
Series ASPI-6045S | ||
Maximum Operating Temperature 125°C | ||
Inductance Tolerance ±20 % | ||
Standards/Approvals RoHS | ||
Termination Style Surface Mount | ||
Core Material Ferrite | ||
Depth 4.5mm | ||
Height 4.5mm | ||
Inductor Construction Flat Wire Winding | ||
Moulded Yes | ||
The Abracon Wire Wound Magnetically Shielded SMD Power Inductor is Suitable for wide range of application such as Partable communication equipment, OA equipment, LCD, DVD, modem, set-top box and DC/DC converters.
Shielded magnetics, low radiation
Large Terminal surface for good PCB bonding
Low DCR, High Energy storage, suitable for large currents
Ideal for a variety of DC-DC converter inductor applications
