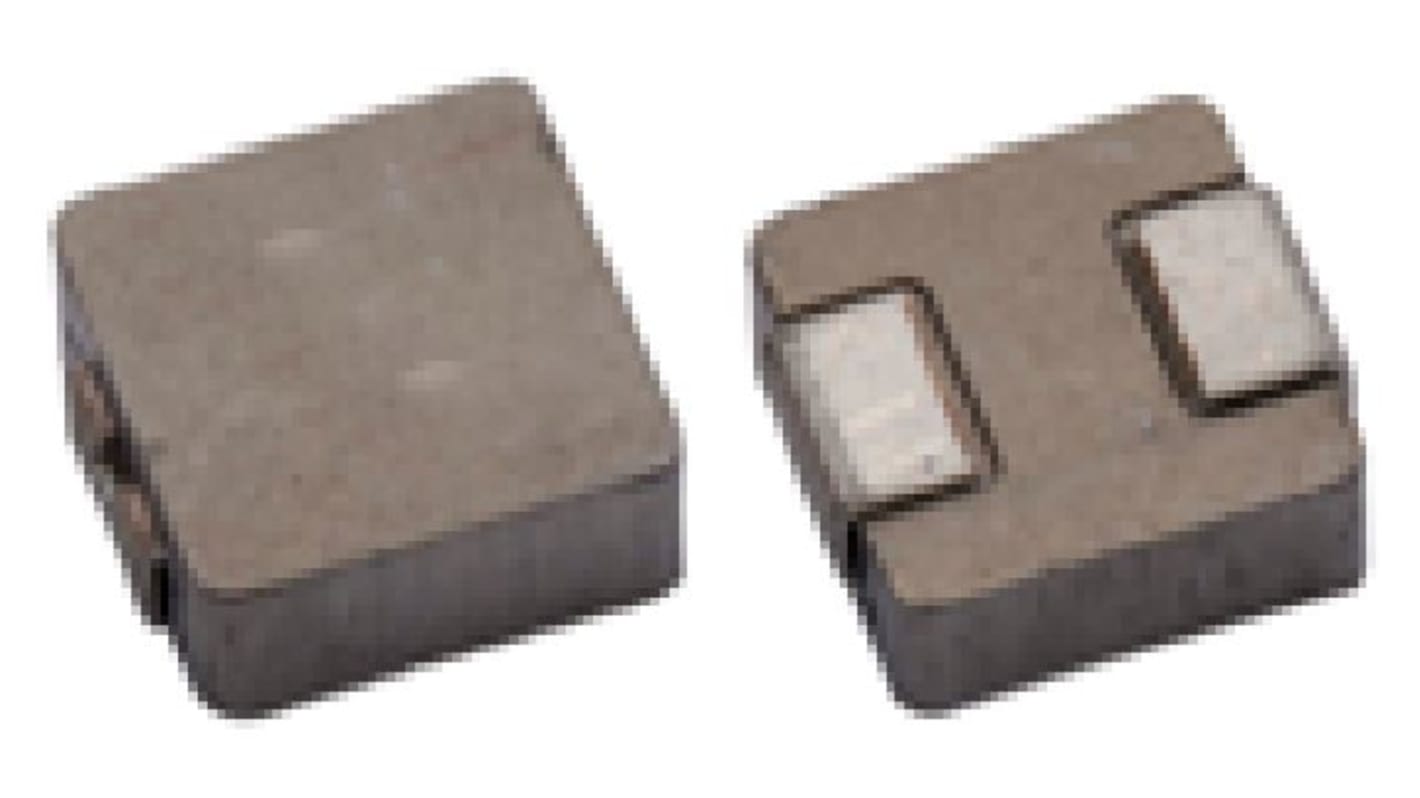

Abracon, ASPI-0630LR Shielded Surface Mount Inductor with a Iron Core, 2.2 μH Flat Wire Winding ±20 % 8 A Idc
- RS Stock No.:
- 240-0919
- Mfr. Part No.:
- ASPI-0630LR-2R2M-T15
- Brand:
- Abracon
Bulk discount available
Subtotal (1 pack of 25 units)*
£11.65
(exc. VAT)
£13.975
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 550 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 25 | £0.466 | £11.65 |
| 50 - 75 | £0.456 | £11.40 |
| 100 - 225 | £0.39 | £9.75 |
| 250 - 475 | £0.382 | £9.55 |
| 500 + | £0.331 | £8.28 |
*price indicative
- RS Stock No.:
- 240-0919
- Mfr. Part No.:
- ASPI-0630LR-2R2M-T15
- Brand:
- Abracon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Abracon | |
| Product Type | Surface Mount Inductor | |
| Inductance | 2.2 μH | |
| Maximum DC Current | 8A | |
| Package/Case | Surface Mount | |
| Length | 7.2mm | |
| Packaging | Tape & Reel | |
| Automotive Standard | No | |
| Shielding | Yes | |
| Maximum DC Resistance | 18.5mΩ | |
| Pin Count | 2 | |
| Minimum Operating Temperature | -55°C | |
| Series | ASPI-0630LR | |
| Inductance Tolerance | ±20 % | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | RoHS | |
| Termination Style | Surface Mount | |
| Core Material | Iron | |
| Depth | 3mm | |
| Height | 3mm | |
| Inductor Construction | Flat Wire Winding | |
| Moulded | Yes | |
| Select all | ||
|---|---|---|
Brand Abracon | ||
Product Type Surface Mount Inductor | ||
Inductance 2.2 μH | ||
Maximum DC Current 8A | ||
Package/Case Surface Mount | ||
Length 7.2mm | ||
Packaging Tape & Reel | ||
Automotive Standard No | ||
Shielding Yes | ||
Maximum DC Resistance 18.5mΩ | ||
Pin Count 2 | ||
Minimum Operating Temperature -55°C | ||
Series ASPI-0630LR | ||
Inductance Tolerance ±20 % | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals RoHS | ||
Termination Style Surface Mount | ||
Core Material Iron | ||
Depth 3mm | ||
Height 3mm | ||
Inductor Construction Flat Wire Winding | ||
Moulded Yes | ||
The Abracon Molding Type Power Inductor is Suitable for wide range of application such as DC/DC converter in notebook, Netbook, Desktop, Servers, Low profile and high current power supplies.
High saturation current
Low loss due to low do resistance
Frequency application up to 3MHz
High reliable SMD package
Suitable for reflow soldering
