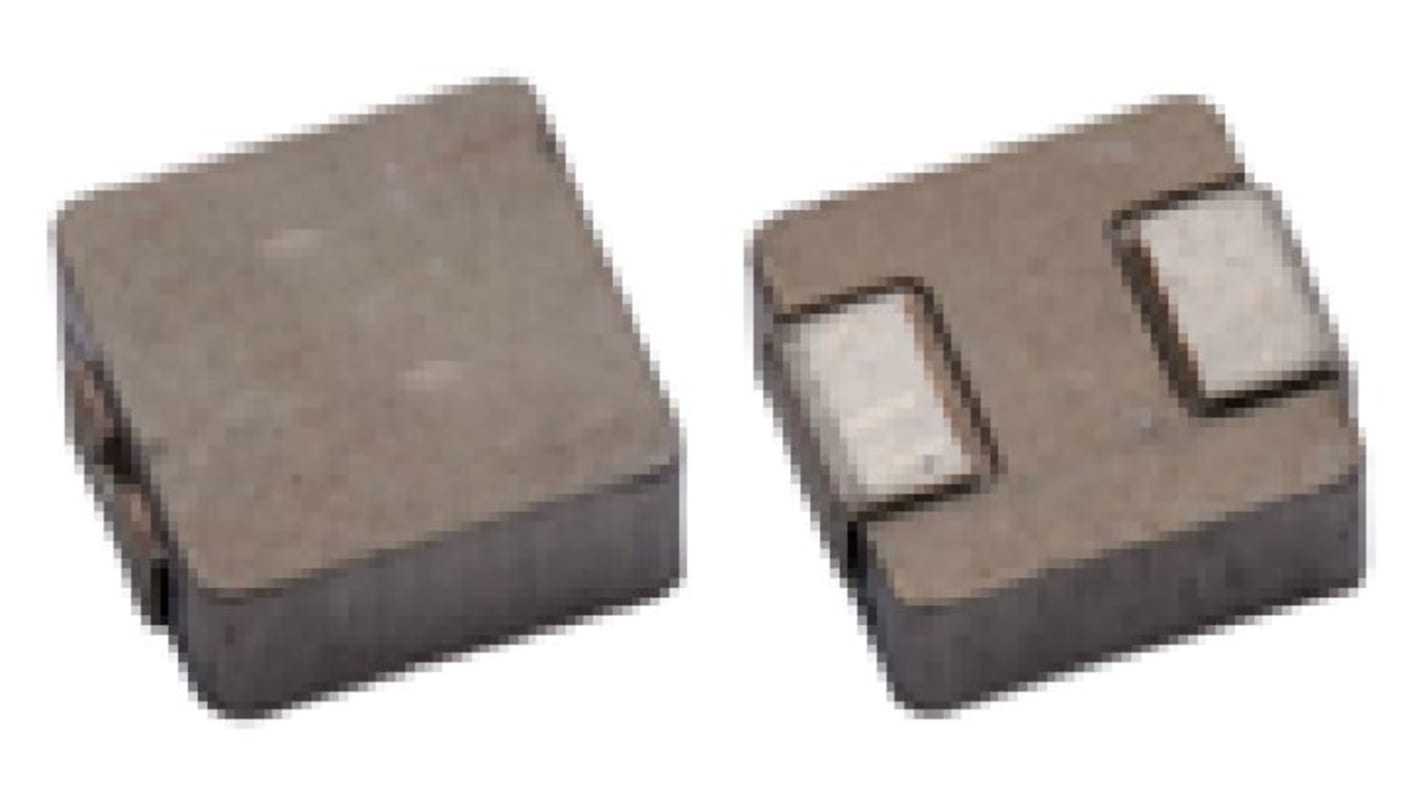

Abracon, ASPI-0530LR, Surface Mount Yes Surface Mount Inductor with a Iron Core, 4.7 nH Moulding Type Power Inductor ±20
- RS Stock No.:
- 240-0903
- Mfr. Part No.:
- ASPI-0530LR-4R7M-T2
- Brand:
- Abracon
Bulk discount available
Subtotal (1 reel of 2000 units)*
£562.00
(exc. VAT)
£674.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2000 - 22000 | £0.281 | £562.00 |
| 24000 + | £0.271 | £542.00 |
*price indicative
- RS Stock No.:
- 240-0903
- Mfr. Part No.:
- ASPI-0530LR-4R7M-T2
- Brand:
- Abracon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Abracon | |
| Product Type | Surface Mount Inductor | |
| Inductance | 4.7 nH | |
| Maximum DC Current | 4.5A | |
| Package/Case | Surface Mount | |
| Packaging | Tape and Reel | |
| Length | 5.6mm | |
| Automotive Standard | No | |
| Shielding | Yes | |
| Maximum DC Resistance | 65mΩ | |
| Minimum Operating Temperature | -55°C | |
| Pin Count | 2 | |
| Series | ASPI-0530LR | |
| Inductance Tolerance | ±20 % | |
| Maximum Operating Temperature | 125°C | |
| Termination Style | Suitable for Reflow Soldering | |
| Standards/Approvals | QS 9000, Pb RoHS, ISO 9001 | |
| Depth | 3mm | |
| Core Material | Iron | |
| Height | 3mm | |
| Moulded | Yes | |
| Inductor Construction | Moulding Type Power Inductor | |
| Select all | ||
|---|---|---|
Brand Abracon | ||
Product Type Surface Mount Inductor | ||
Inductance 4.7 nH | ||
Maximum DC Current 4.5A | ||
Package/Case Surface Mount | ||
Packaging Tape and Reel | ||
Length 5.6mm | ||
Automotive Standard No | ||
Shielding Yes | ||
Maximum DC Resistance 65mΩ | ||
Minimum Operating Temperature -55°C | ||
Pin Count 2 | ||
Series ASPI-0530LR | ||
Inductance Tolerance ±20 % | ||
Maximum Operating Temperature 125°C | ||
Termination Style Suitable for Reflow Soldering | ||
Standards/Approvals QS 9000, Pb RoHS, ISO 9001 | ||
Depth 3mm | ||
Core Material Iron | ||
Height 3mm | ||
Moulded Yes | ||
Inductor Construction Moulding Type Power Inductor | ||
The Abracon Molding Type Power Inductor is Suitable for wide range of application such as DC/DC converter in notebook, Netbook, Desktop, Servers, Low profile and high current power supplies.
High saturation current
Low loss due to low do resistance
Frequency application up to 3MHz
High reliable SMD package
Suitable for reflow soldering
