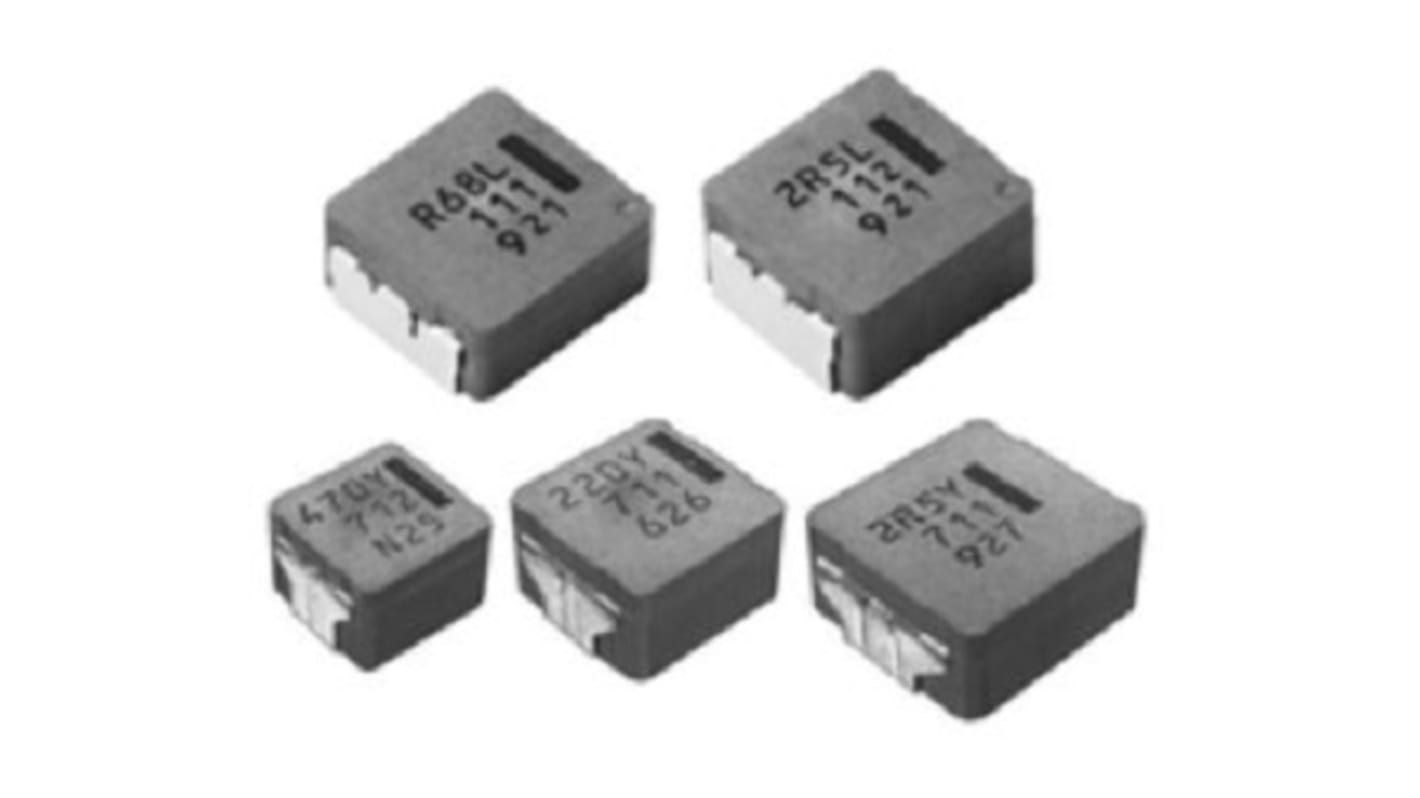

Panasonic, ETQP6M Shielded Wire-wound SMD Inductor with a Metal Composite Core, 2.5 μH ±20% 19.6A Idc
- RS Stock No.:
- 238-3678
- Mfr. Part No.:
- ETQP6M2R5YLC
- Brand:
- Panasonic
Subtotal (1 reel of 500 units)*
£420.50
(exc. VAT)
£504.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 500 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 500 + | £0.841 | £420.50 |
*price indicative
- RS Stock No.:
- 238-3678
- Mfr. Part No.:
- ETQP6M2R5YLC
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Inductance | 2.5 μH | |
| Maximum DC Current | 19.6A | |
| Length | 10.9mm | |
| Depth | 10mm | |
| Automotive Standard | AEC-Q200 | |
| Shielded | Yes | |
| Tolerance | ±20% | |
| Series | ETQP6M | |
| Core Material | Metal Composite | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Inductance 2.5 μH | ||
Maximum DC Current 19.6A | ||
Length 10.9mm | ||
Depth 10mm | ||
Automotive Standard AEC-Q200 | ||
Shielded Yes | ||
Tolerance ±20% | ||
Series ETQP6M | ||
Core Material Metal Composite | ||
ETQP6M Power Choke Coils
Panasonic ETQP6M choke coils (sometimes known as the PCC-M1060ML series) provide a high reliability solution. Featuring heat resistance up to +150°C, the use of ferrous alloy magnetic material provides excellent inductance stability. New metal composite core technology creates low buzz noise, and the integral construction enables high vibration resistance.
AEC-Q200 qualified
High reliability at high temperature
High bias current
Stable
Low buzz noise
High efficiency
Low RDC of winding
Low eddy-current loss of the core
High reliability at high temperature
High bias current
Stable
Low buzz noise
High efficiency
Low RDC of winding
Low eddy-current loss of the core
Applications
Suitable applications include DC-DC converters and noise filters for drive circuitry that need high peak current and operating temperature handling capabilities. These choke coils are AEC-Q200 qualified and are suitable for automotive applications.
The Panasonic Power Inductor has high heat resistance and high reliability using metal composite core. It has high vibration resistance as result of newly developed integral construction. The Excellent inductance stability using ferrous alloy magnetic material. It has shielded construction.
Operation up to 150°C including self heat
High bias current
Temperature stability
Low audible noise
Noise filter for various drive circuitry requiring high temperature operation and peak current handling capability
High bias current
Temperature stability
Low audible noise
Noise filter for various drive circuitry requiring high temperature operation and peak current handling capability
Panasonic Non Standard SMT Inductors (Chokes)
