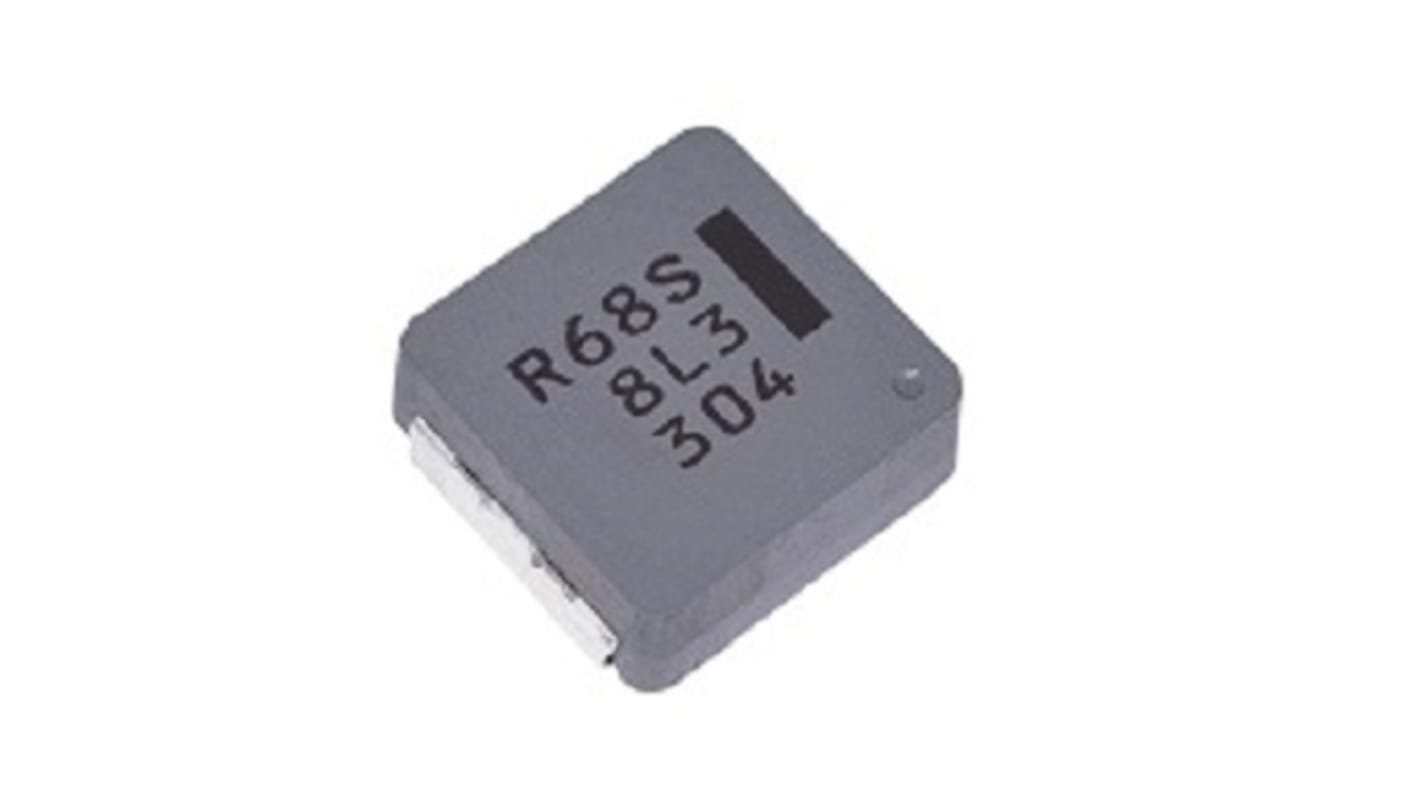

Panasonic, ETQP5M Shielded Wirewound Surface Mount Inductor with a Metal Composite Core, 680 nH ±20 % 32.3 A Idc
- RS Stock No.:
- 238-3675
- Mfr. Part No.:
- ETQP5MR68YSC
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 tape of 5 units)*
£6.03
(exc. VAT)
£7.235
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 5 - 20 | £1.206 | £6.03 |
| 25 - 45 | £1.094 | £5.47 |
| 50 - 95 | £1.012 | £5.06 |
| 100 - 245 | £0.894 | £4.47 |
| 250 + | £0.774 | £3.87 |
*price indicative
- RS Stock No.:
- 238-3675
- Mfr. Part No.:
- ETQP5MR68YSC
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Product Type | Wirewound Surface Mount Inductor | |
| Inductance | 680 nH | |
| Maximum DC Current | 32.3A | |
| Package/Case | Surface Mount | |
| Packaging | Tape & Reel | |
| Length | 10.9mm | |
| Automotive Standard | AEC-Q200 | |
| Shielding | Yes | |
| Minimum Operating Temperature | -40°C | |
| Maximum DC Resistance | 1.83mΩ | |
| Pin Count | 2 | |
| Series | ETQP5M | |
| Maximum Operating Temperature | 150°C | |
| Inductance Tolerance | ±20 % | |
| Core Material | Metal Composite | |
| Termination Style | Surface Mount | |
| Height | 5mm | |
| Standards/Approvals | RoHS | |
| Depth | 10mm | |
| Maximum Self Resonant Frequency | 100kHz | |
| Moulded | Yes | |
| Inductor Construction | Wirewound | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Product Type Wirewound Surface Mount Inductor | ||
Inductance 680 nH | ||
Maximum DC Current 32.3A | ||
Package/Case Surface Mount | ||
Packaging Tape & Reel | ||
Length 10.9mm | ||
Automotive Standard AEC-Q200 | ||
Shielding Yes | ||
Minimum Operating Temperature -40°C | ||
Maximum DC Resistance 1.83mΩ | ||
Pin Count 2 | ||
Series ETQP5M | ||
Maximum Operating Temperature 150°C | ||
Inductance Tolerance ±20 % | ||
Core Material Metal Composite | ||
Termination Style Surface Mount | ||
Height 5mm | ||
Standards/Approvals RoHS | ||
Depth 10mm | ||
Maximum Self Resonant Frequency 100kHz | ||
Moulded Yes | ||
Inductor Construction Wirewound | ||
The Panasonic Power Inductor has high heat resistance and high reliability using metal composite core. It has high vibration resistance as result of newly developed integral construction. The Excellent inductance stability using ferrous alloy magnetic material. It has shielded construction.
Operation up to 150°C including self heat
High bias current
Temperature stability
Low audible noise
Noise filter for various drive circuitry requiring high temperature operation and peak current handling capability
