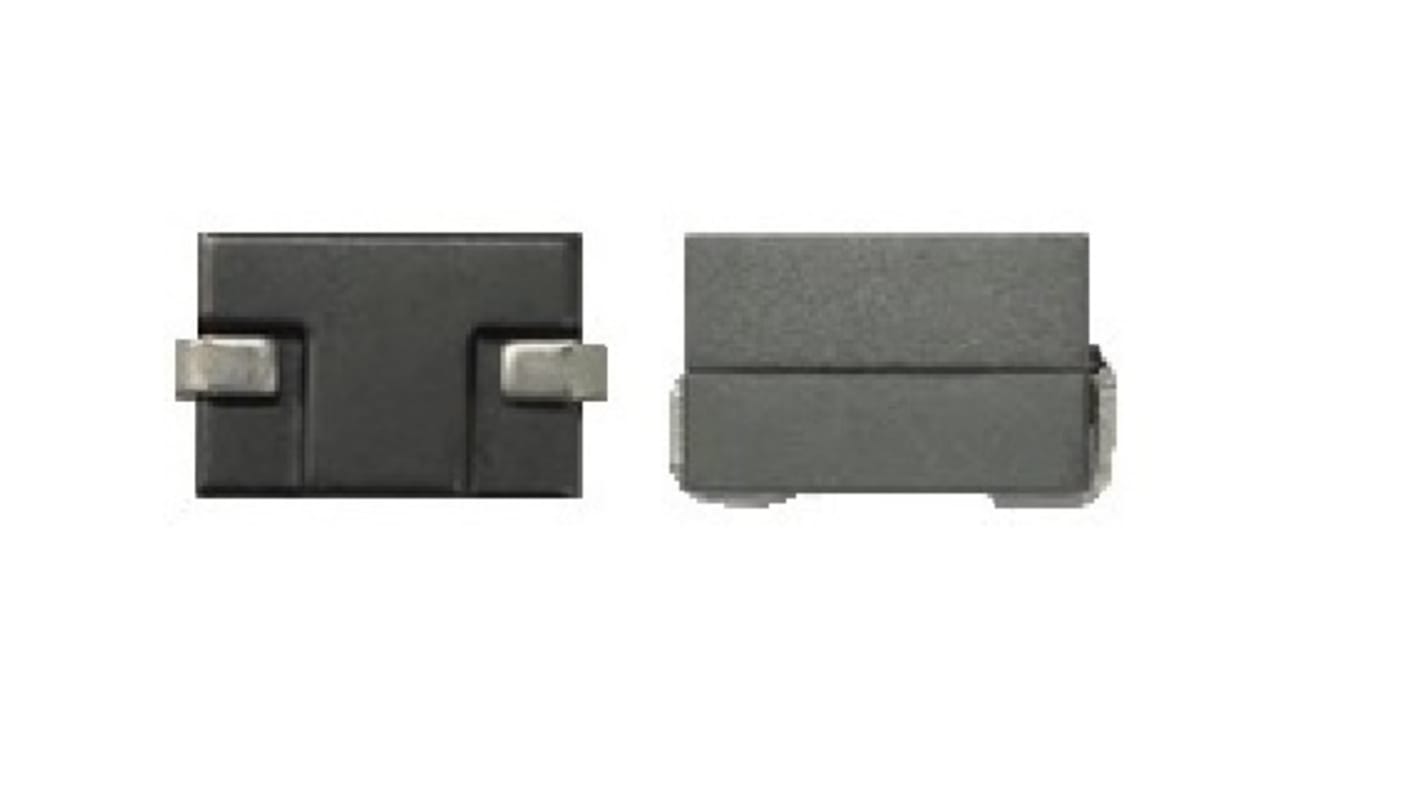

Abracon, AMSLA, SMT Shielded Power Inductor with a Manganese Zinc Ferrite Core, 10 nH 20 % 50 A Idc
- RS Stock No.:
- 237-7301
- Mfr. Part No.:
- AMSLA-1050-100NM-T
- Brand:
- Abracon
Bulk discount available
Subtotal (1 pack of 5 units)*
£2.25
(exc. VAT)
£2.70
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1,900 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £0.45 | £2.25 |
| 50 - 95 | £0.322 | £1.61 |
| 100 - 245 | £0.27 | £1.35 |
| 250 - 495 | £0.266 | £1.33 |
| 500 + | £0.246 | £1.23 |
*price indicative
- RS Stock No.:
- 237-7301
- Mfr. Part No.:
- AMSLA-1050-100NM-T
- Brand:
- Abracon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Abracon | |
| Inductance | 10nH | |
| Product Type | Power Inductor | |
| Maximum DC Current | 50A | |
| Package/Case | SMT | |
| Length | 10.2mm | |
| Packaging | 2000 pieces per 7 in Reel | |
| Automotive Standard | No | |
| Shielding | Yes | |
| Maximum DC Resistance | 0.42Ω | |
| Minimum Operating Temperature | -40°C | |
| Series | AMSLA | |
| Maximum Operating Temperature | 125°C | |
| Inductance Tolerance | 20 % | |
| Standards/Approvals | ANSI/ESD S20.20:2021 Electrostatic Control Standard | |
| Height | 7mm | |
| Core Material | Manganese Zinc Ferrite | |
| Depth | 1.3mm | |
| Maximum Self Resonant Frequency | 2MHz | |
| Select all | ||
|---|---|---|
Brand Abracon | ||
Inductance 10nH | ||
Product Type Power Inductor | ||
Maximum DC Current 50A | ||
Package/Case SMT | ||
Length 10.2mm | ||
Packaging 2000 pieces per 7 in Reel | ||
Automotive Standard No | ||
Shielding Yes | ||
Maximum DC Resistance 0.42Ω | ||
Minimum Operating Temperature -40°C | ||
Series AMSLA | ||
Maximum Operating Temperature 125°C | ||
Inductance Tolerance 20 % | ||
Standards/Approvals ANSI/ESD S20.20:2021 Electrostatic Control Standard | ||
Height 7mm | ||
Core Material Manganese Zinc Ferrite | ||
Depth 1.3mm | ||
Maximum Self Resonant Frequency 2MHz | ||
The Abracon AMSLA 1050 series is molded SMD power inductor with high power density and 100 nH inductance. This inductors used in solar inverter and power applications, industrial and robotics applications etc.
Shielded construction Soft saturation High efficiency Designed for frequency between 100 KHz to 2 MHz RoHS/RoHS II compliant
