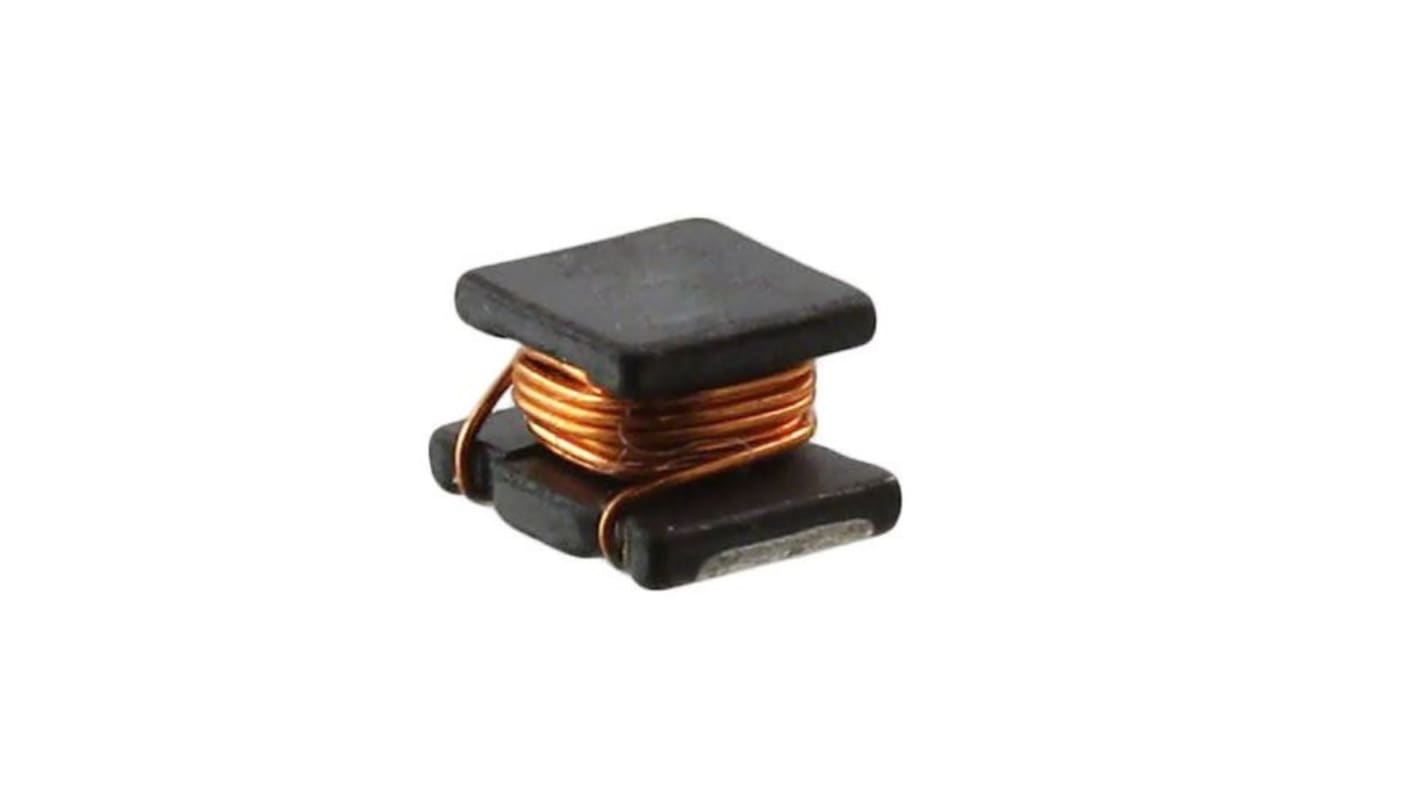

Bourns, SRN6028, 6028 Shielded Surface Mount Inductor with a Ferrite Core, 22 μH Semi Shielded 20 % 1.4 A Idc Q:18
- RS Stock No.:
- 233-0796
- Mfr. Part No.:
- SRN6028-220M
- Brand:
- Bourns
Bulk discount available
View bulk pricing optionsSubtotal (1 tape of 10 units)*
£2.52
(exc. VAT)
£3.02
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Tape* |
|---|---|---|
| 10 - 40 | £0.252 | £2.52 |
| 50 - 90 | £0.235 | £2.35 |
| 100 - 190 | £0.204 | £2.04 |
| 200 - 490 | £0.195 | £1.95 |
| 500 + | £0.149 | £1.49 |
*price indicative
- RS Stock No.:
- 233-0796
- Mfr. Part No.:
- SRN6028-220M
- Brand:
- Bourns
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Inductance | 22μH | |
| Product Type | Surface Mount Inductor | |
| Maximum DC Current | 1.4A | |
| Package/Case | 6028 | |
| Length | 6mm | |
| Packaging | 1000 pieces per 13 in Reel | |
| Automotive Standard | AEC-Q200 | |
| Shielding | Yes | |
| Minimum Operating Temperature | -40°C | |
| Maximum DC Resistance | 0.16Ω | |
| Maximum Operating Temperature | 125°C | |
| Inductance Tolerance | 20 % | |
| Series | SRN6028 | |
| Height | 2.8mm | |
| Core Material | Ferrite | |
| Standards/Approvals | Halogen Free, RoHS | |
| Termination Style | Tin/Silver/Copper | |
| Depth | 2.8mm | |
| Maximum Self Resonant Frequency | 14MHz | |
| Moulded | Yes | |
| Minimum Quality Factor | 18 | |
| Inductor Construction | Semi Shielded | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Inductance 22μH | ||
Product Type Surface Mount Inductor | ||
Maximum DC Current 1.4A | ||
Package/Case 6028 | ||
Length 6mm | ||
Packaging 1000 pieces per 13 in Reel | ||
Automotive Standard AEC-Q200 | ||
Shielding Yes | ||
Minimum Operating Temperature -40°C | ||
Maximum DC Resistance 0.16Ω | ||
Maximum Operating Temperature 125°C | ||
Inductance Tolerance 20 % | ||
Series SRN6028 | ||
Height 2.8mm | ||
Core Material Ferrite | ||
Standards/Approvals Halogen Free, RoHS | ||
Termination Style Tin/Silver/Copper | ||
Depth 2.8mm | ||
Maximum Self Resonant Frequency 14MHz | ||
Moulded Yes | ||
Minimum Quality Factor 18 | ||
Inductor Construction Semi Shielded | ||
- COO (Country of Origin):
- MY
The Bourns SRN6028 series power inductors has semi-shielded construction. The operating temperature range of the inductor is -40 °C to +125 °C. It has ferrite core and Sn-Ag-Cu terminal finish.
Inductance range 22 uH
Rated current up to 4.6 A
