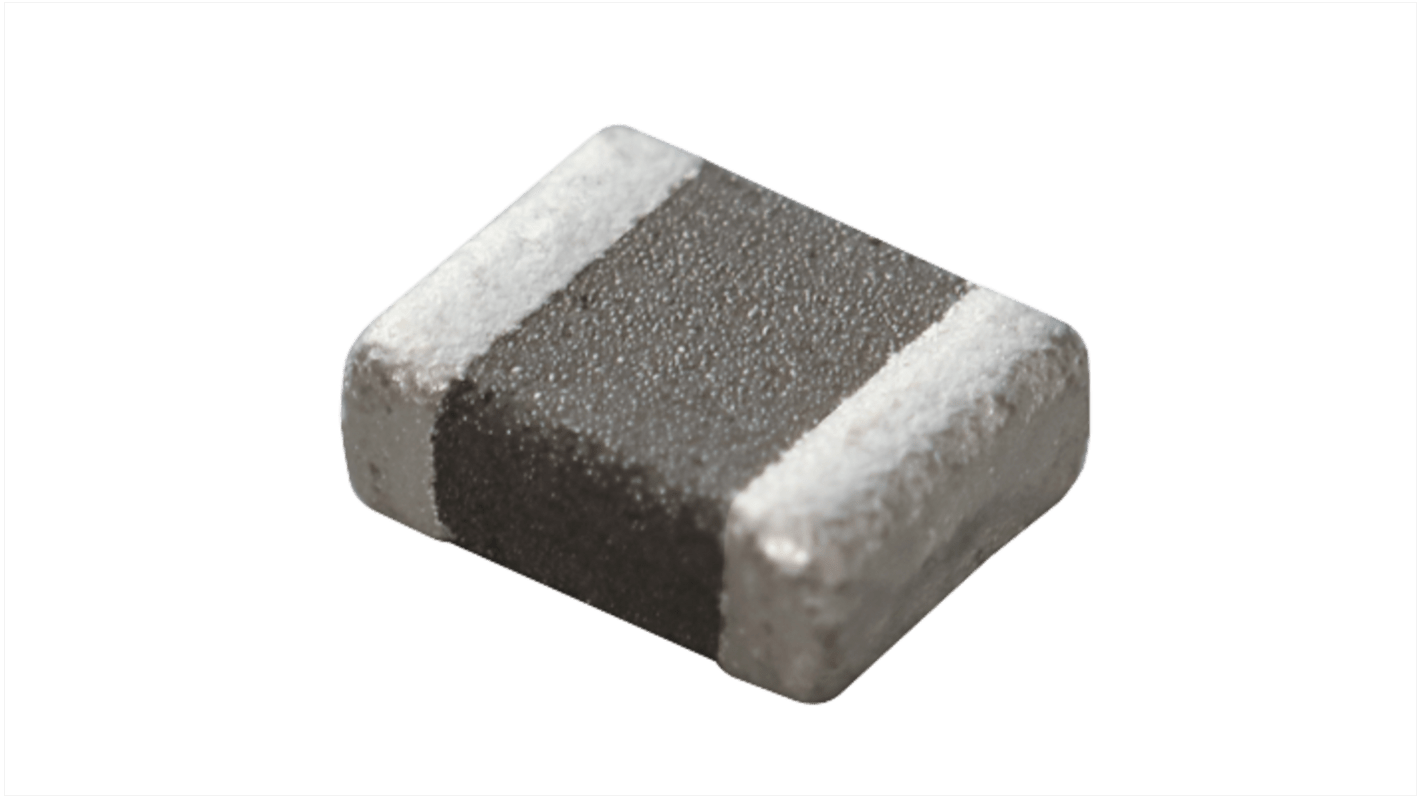

Murata, DFE201210U, 0805 Shielded Multilayer Surface Mount Inductor with a Metal Alloy Core, 2.2 μH 20% Multilayer 2A
- RS Stock No.:
- 230-7896
- Mfr. Part No.:
- DFE201210U-2R2M=P2
- Brand:
- Murata Power Solutions
Save 38% when you buy 1000 units
Subtotal (1 tape of 10 units)*
£1.78
(exc. VAT)
£2.14
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,940 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
---|---|---|
10 - 40 | £0.178 | £1.78 |
50 - 90 | £0.162 | £1.62 |
100 - 490 | £0.152 | £1.52 |
500 - 990 | £0.142 | £1.42 |
1000 + | £0.11 | £1.10 |
*price indicative
- RS Stock No.:
- 230-7896
- Mfr. Part No.:
- DFE201210U-2R2M=P2
- Brand:
- Murata Power Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Murata Power Solutions | |
Inductance | 2.2 μH | |
Maximum DC Current | 2A | |
Package/Case | 0805 | |
Length | 2mm | |
Depth | 1mm | |
Shielded | Yes | |
Tolerance | 20% | |
Series | DFE201210U | |
Core Material | Metal Alloy | |
Inductor Construction | Multilayer | |
Select all | ||
---|---|---|
Brand Murata Power Solutions | ||
Inductance 2.2 μH | ||
Maximum DC Current 2A | ||
Package/Case 0805 | ||
Length 2mm | ||
Depth 1mm | ||
Shielded Yes | ||
Tolerance 20% | ||
Series DFE201210U | ||
Core Material Metal Alloy | ||
Inductor Construction Multilayer | ||
RoHS Status: Exempt
The Murata fixed inductor is 2.2 uH and rated current is 2A.Rated current (I sat) is specified when the decrease of the initial inductance value at 30%. Rated current (Item) is specified when temperature of the inductor is raised 40°C by DC current.
High quality and low DC resistance.
Low voltage drop
High temperature stability
Low voltage drop
High temperature stability
