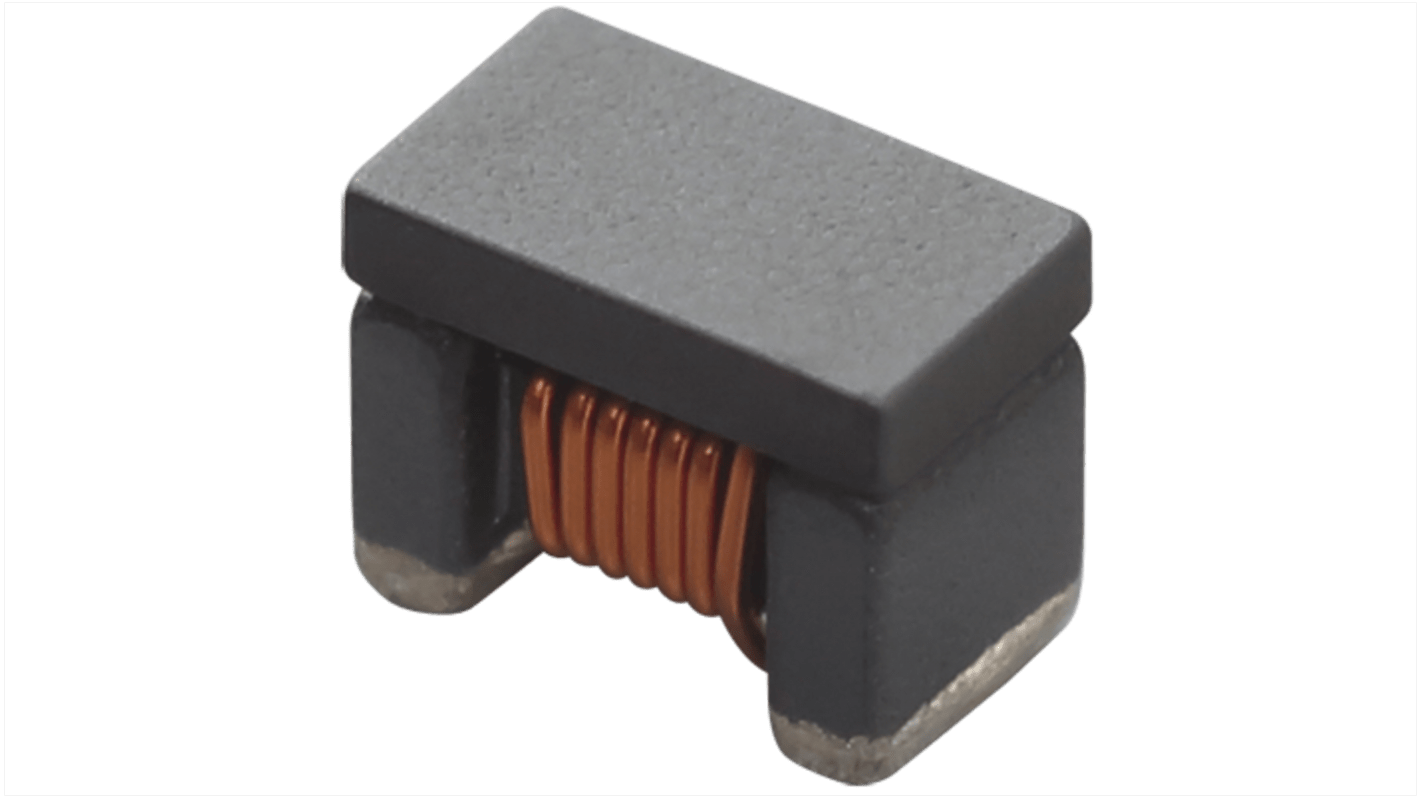

Murata, LQW, 0805 Unshielded Wirewound Surface Mount Inductor with a Ferrite Core, 1.5 μH Ferrite Core ±20 % 550 mA Idc
- RS Stock No.:
- 224-0605
- Mfr. Part No.:
- LQW21FT1R5M0HL
- Brand:
- Murata
Subtotal (1 reel of 1500 units)*
£847.50
(exc. VAT)
£1,017.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1500 + | £0.565 | £847.50 |
*price indicative
- RS Stock No.:
- 224-0605
- Mfr. Part No.:
- LQW21FT1R5M0HL
- Brand:
- Murata
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murata | |
| Inductance | 1.5 μH | |
| Product Type | Wirewound Surface Mount Inductor | |
| Maximum DC Current | 550mA | |
| Package/Case | 0805 | |
| Packaging | 180 mm Dia Embossed Tape | |
| Length | 2mm | |
| Automotive Standard | AEC-Q200 | |
| Shielding | No | |
| Maximum DC Resistance | 0.18Ω | |
| Minimum Operating Temperature | -40°C | |
| Inductance Tolerance | ±20 % | |
| Maximum Operating Temperature | 125°C | |
| Series | LQW | |
| Termination Style | Surface Mount | |
| Standards/Approvals | No | |
| Core Material | Ferrite | |
| Depth | 1.2mm | |
| Height | 1.6mm | |
| Maximum Self Resonant Frequency | 260MHz | |
| Moulded | Yes | |
| Inductor Construction | Ferrite Core | |
| Select all | ||
|---|---|---|
Brand Murata | ||
Inductance 1.5 μH | ||
Product Type Wirewound Surface Mount Inductor | ||
Maximum DC Current 550mA | ||
Package/Case 0805 | ||
Packaging 180 mm Dia Embossed Tape | ||
Length 2mm | ||
Automotive Standard AEC-Q200 | ||
Shielding No | ||
Maximum DC Resistance 0.18Ω | ||
Minimum Operating Temperature -40°C | ||
Inductance Tolerance ±20 % | ||
Maximum Operating Temperature 125°C | ||
Series LQW | ||
Termination Style Surface Mount | ||
Standards/Approvals No | ||
Core Material Ferrite | ||
Depth 1.2mm | ||
Height 1.6mm | ||
Maximum Self Resonant Frequency 260MHz | ||
Moulded Yes | ||
Inductor Construction Ferrite Core | ||
- COO (Country of Origin):
- JP
The Murata wire wound ferrite inductor has 260 MHz self resonance frequency and it is used for power lines and for automotive. It has 15μH inductance.
Operating temperature range is from -40°C to 125°C
