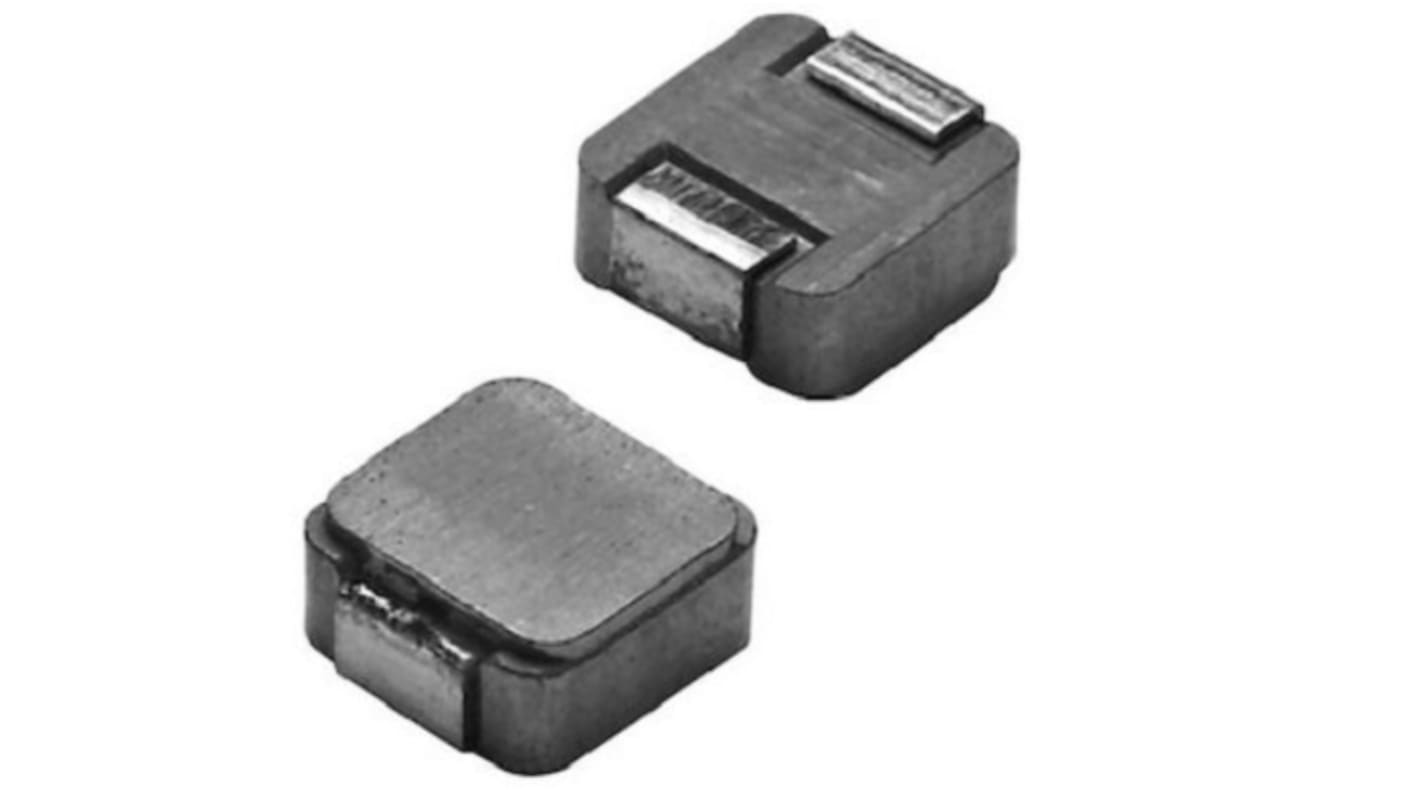

Vishay, IHLP, 1616 Shielded Wire-wound SMD Inductor 2.2 μH ± 20% Shielded 3.25A Idc
- RS Stock No.:
- 223-7241
- Mfr. Part No.:
- IHLP1616BZER2R2M11
- Brand:
- Vishay
Bulk discount available
Subtotal (1 tape of 5 units)*
£3.66
(exc. VAT)
£4.39
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- Plus 1,755 left, shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 5 - 45 | £0.732 | £3.66 |
| 50 - 120 | £0.60 | £3.00 |
| 125 - 245 | £0.432 | £2.16 |
| 250 - 495 | £0.366 | £1.83 |
| 500 + | £0.33 | £1.65 |
*price indicative
- RS Stock No.:
- 223-7241
- Mfr. Part No.:
- IHLP1616BZER2R2M11
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Inductance | 2.2 μH | |
| Maximum DC Current | 3.25A | |
| Package/Case | 1616 | |
| Length | 4.3mm | |
| Depth | 2mm | |
| Shielded | Yes | |
| Tolerance | ± 20% | |
| Series | IHLP | |
| Inductor Construction | Shielded | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Inductance 2.2 μH | ||
Maximum DC Current 3.25A | ||
Package/Case 1616 | ||
Length 4.3mm | ||
Depth 2mm | ||
Shielded Yes | ||
Tolerance ± 20% | ||
Series IHLP | ||
Inductor Construction Shielded | ||
IHLP1616BZ-11 Series Magnetically Shielded Wire Wound Chokes
Vishay IHLP-1616BZ-11 series high current low profile shielded inductors. The IHLP-1616BZ-11 series handles high transient current spikes without saturation and has ultra low buzz noise due to its composite construction.
Frequency range up to 1.0 MHz
Lowest DC Resistance / μH, in this package size
Lowest DC Resistance / μH, in this package size
Applications include: PDA/notebook/desktop/server devices; High current POL converters; Low profile, high current power supplies; Battery powered devices; DC/DC converters in distributed power systems; DC/DC converter for Field Programmable Gate Array (FPGA)
The Vishay IHLP commercial inductors It handles high transient current spikes without saturation. It has ultra low buzz noise, due to composite construction and has shielded construction. It has 2.2 μH inductance.
RoHS compliant
Halogen free
Halogen free
